Installation 27

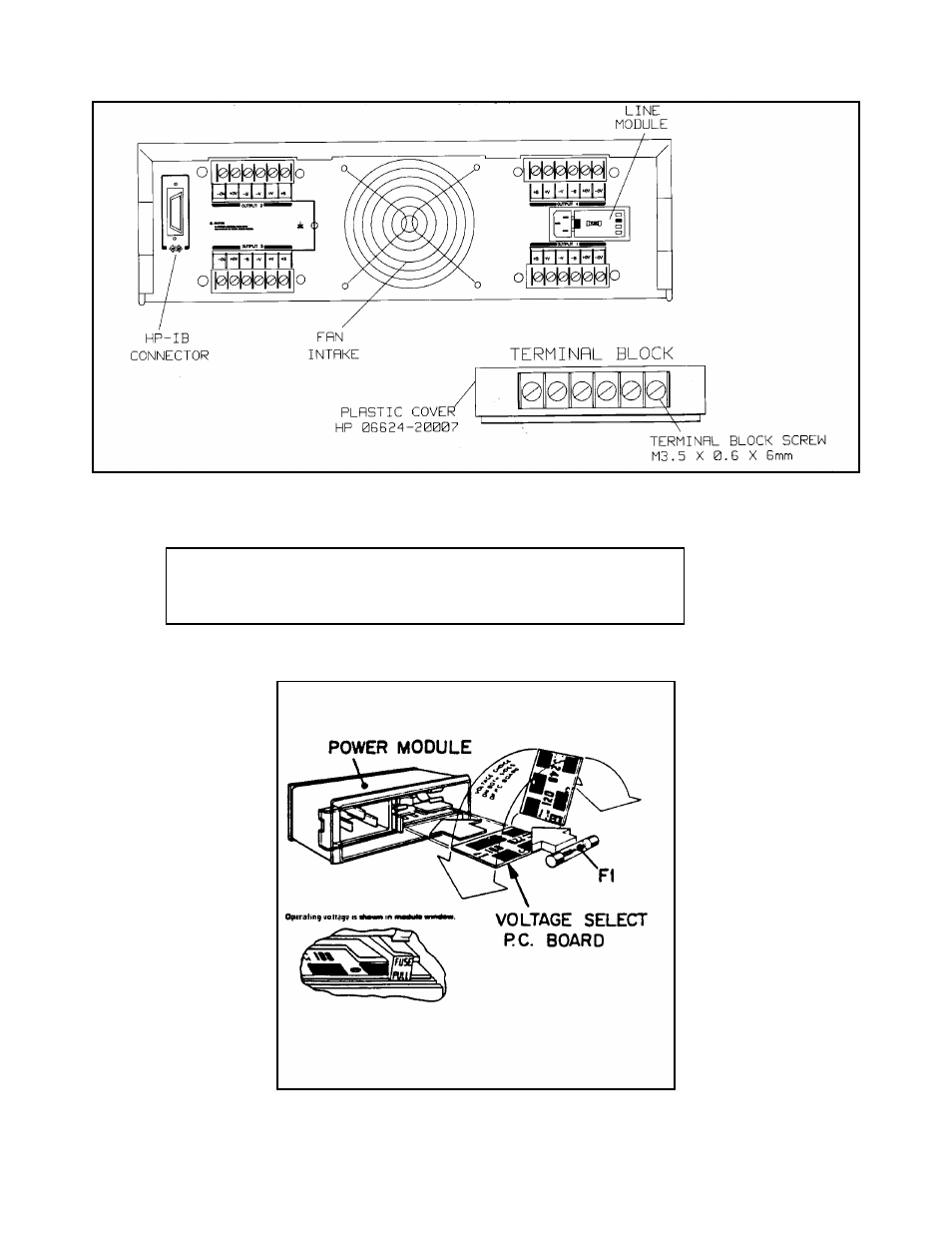

Figure 2-2. Rear Panel Detail (6624A Shown)

Table 2-2 Line Fuses

Line Voltage

Fuse Needed

HP Part Number(for 1/4 X 1-1/4 in.

fuses only

100/120 V

8A

2110-0342

220/240 V

4A

2110-0055

Note All fuses are rated for 250 V.

Figure 2-3. Line Module Detail
