FRONT LOADER ASSEMBLY

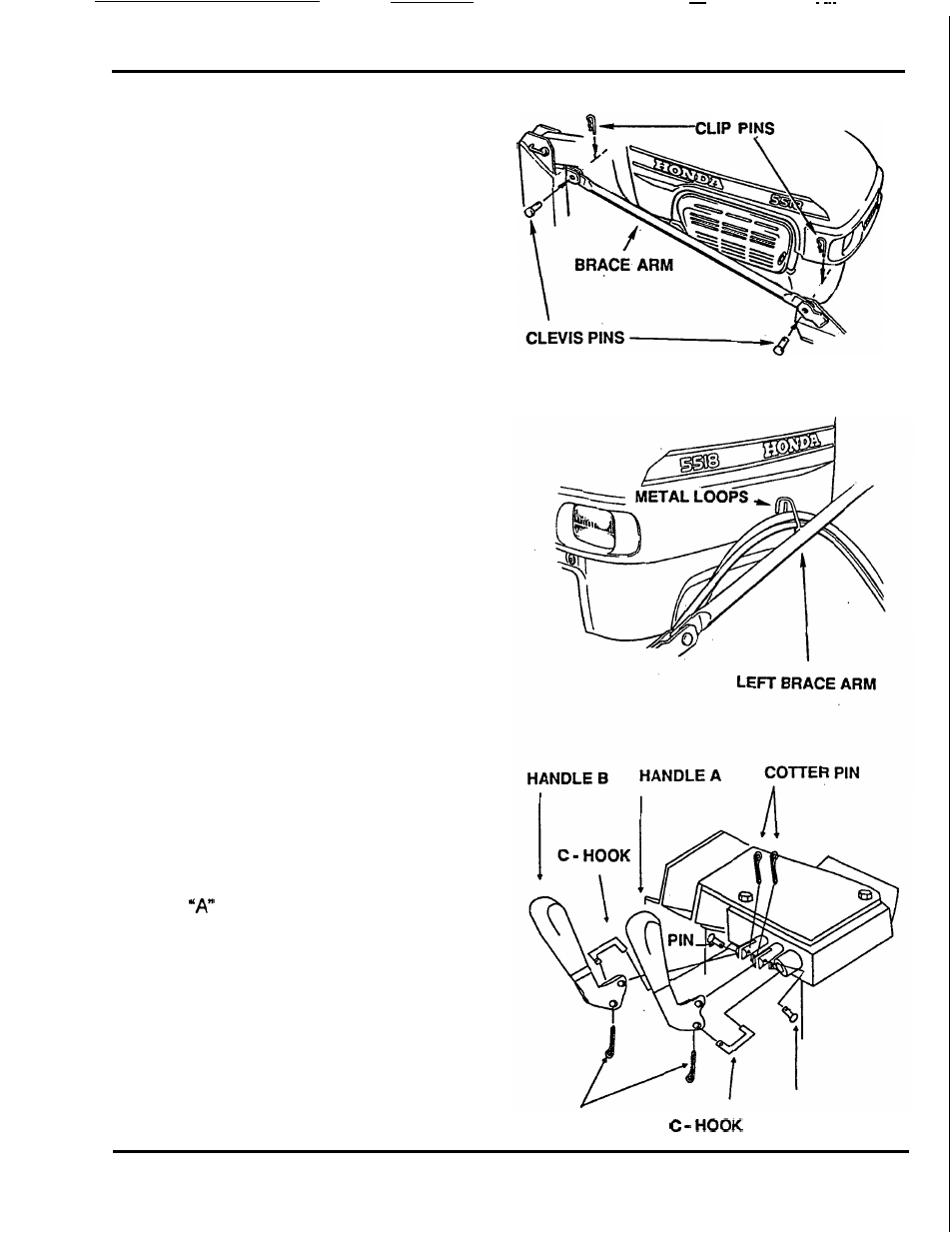

7. Attach brace arms to masts with clevis
Tighten front guard bolts installed in step 5.
Torque: 76 ft-lb (1 03 Nm).
pins and clip pin.
8. Bring the two hoses along the left side
brace arm to the
left mast. Route hoses
on the left brace arm with metal loops.
Ensure that the high pressure hose
(smaller diameter) is positioned on top of
the suction hose (large diameter).
Install the nylon tie strap to bind the two
hoses together at front corner of hoodline.
9. Install valve handles to the hydraulic
control valve mounted on the left mast.
The
handle attaches to the spool used
for loader operation and the "B" handle
attaches to the spool for bucket operation.
COTTER PIN
PIN
21
