2 How to Install and Replace Components In Your Desktop PC

Installing Accessory Boards

Accessory Board Slots

The PC has four accessory board slots.

NOTE

Use only XT format ISA accessory boards (width less than 10.4 cm or
4.09 inches).

•

Physical slot 1 (the top slot) can be used for a full-length 32-bit PCI
board.

•

Physical slot 2 can be used for a full-length 32-bit PCI board.

•

Physical slot 3 is a combo slot and can be used either for a full-length
32-bit PCI or a full-length XT format 16-bit ISA board.

•

Physical slot 4 (the bottom slot) can be used for a full-length XT
format 16-bit ISA board.

PCI 2

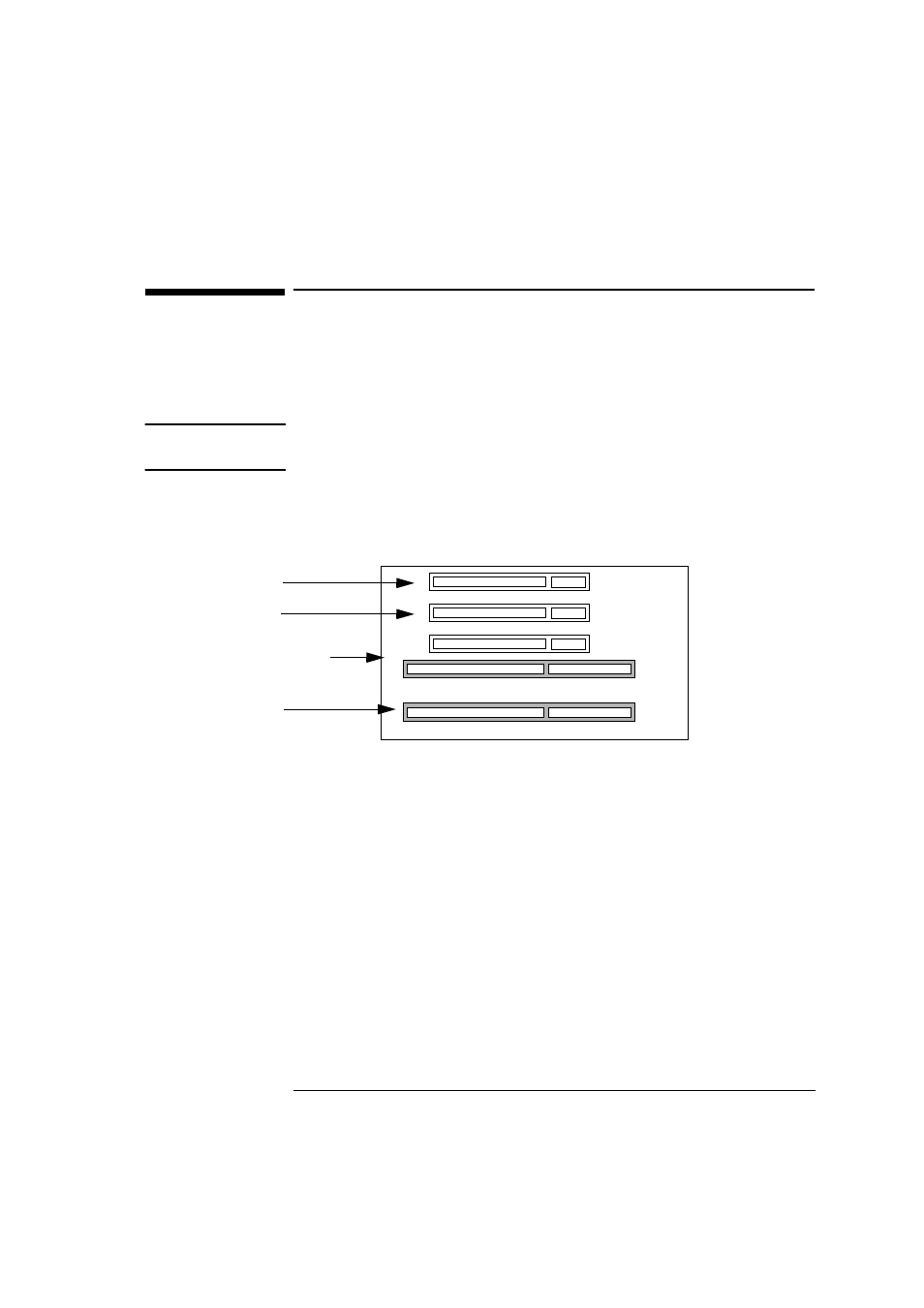

Accessory Board Connectors

PCI 3

PCI 4

ISA 1

ISA 2

Physical Slot 1

Physical Slot 2

Physical Slot 4

Physical Slot 3 (Combo)

{
