INSTALLATION
Scale (FIG 37)
Fit the ruler on the bandsaw blade’s upper guard
as follows:
1. Insert the ruler through the top of the scale
pointer FIG. 37 A. The greatest value on the
ruler shall face downwards.
2. Measure the distance between the underside
of the bandsaw blade and the log bolster’s
upper section FIG. 38 B. NOTE! During this
procedure the bandsaw blade should be
tensioned and adjusted.
3. Set the scale so that the scale pointer has
the same value and can be read on the scale
FIG. 37 C.
4. Bolt the scale to the wheel housing FIG. 37 D.
5. Check that the bandsaw blade moves freely
over the long and short log supports when
the red mark can be read on the scale
pointer. FIG. 37 E

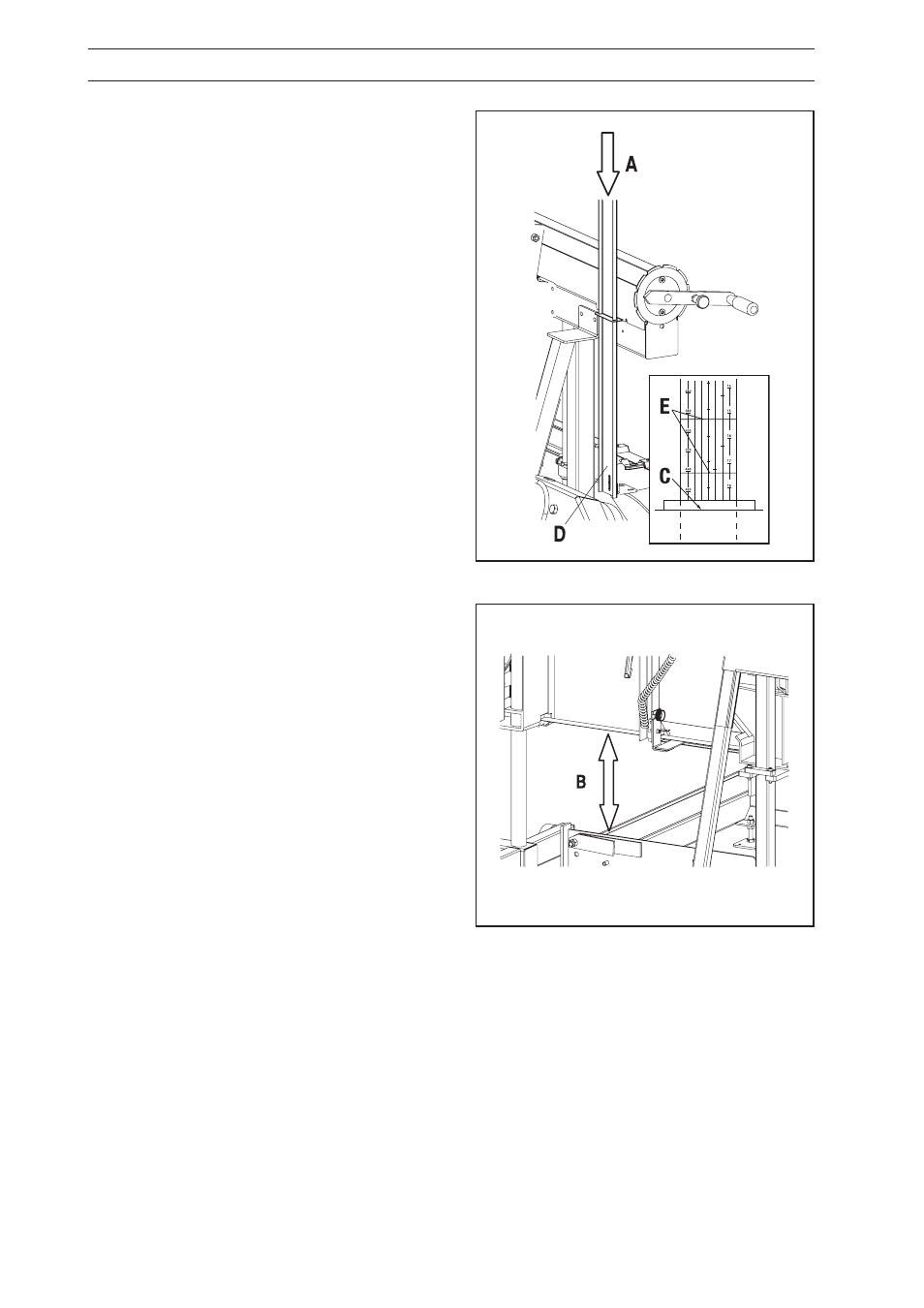

FIG. 37
FIG. 38
