DESCRIPTION
Rail Stop
Rail stops are fitted at the ends of the rails (A).
The stop is mounted using a bolt from the side of
the rail.
Rail Guard
The saw carriage is equipped with four rail
guards that run above the rails. The rail guards
have the tasks of keeping the rails clean and
preventing crush injuries between the runner
wheels and rails.
Adjustable Support Feet
Adjustable support feet are mounted by each log
bolster. You can fine tune the rails’ adjustment
using the support feet.

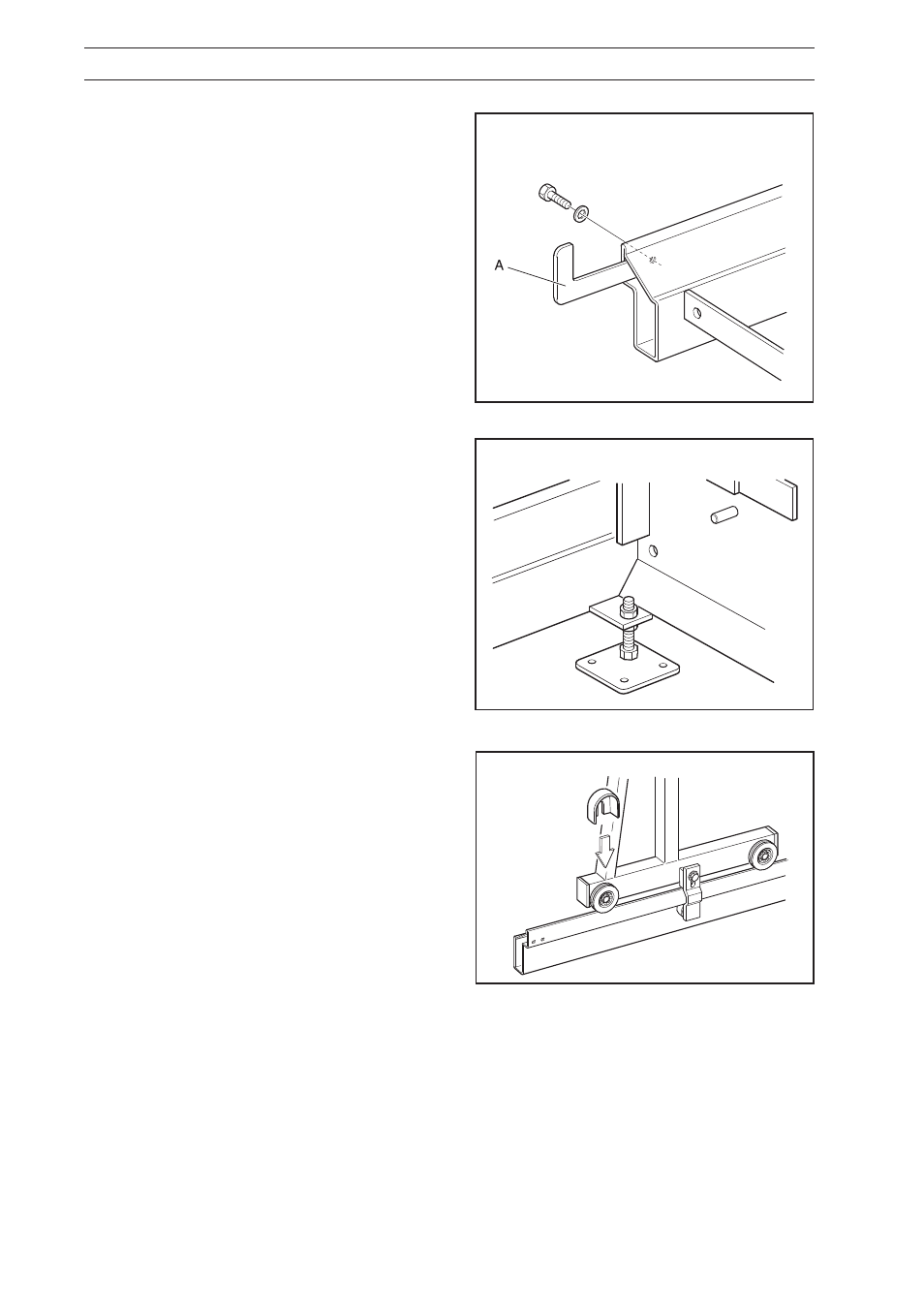

FIG. 13
FIG. 12
FIG. 11
