18
–English
INSTALLATION
Assembly is done as follows:
1. Fix the guide wheel’s bracket in place with a
screw. Place a 0.2 mm feeler gauge between
the bearing and rail.
2. Press the bearing against the rail and tighten
the bearing bracket screw. Tightening torque:
40-50 Nm. Now remove the feeler gauge.
3. Carry out 1-2 above for the remaining guide
wheels.
4. Position the four rail guards above the wheel.
5. Adjust and screw into place the frame (25)
and guide FIG. 26 A.
Saw Carriage Adjustment
The saw carriage is aligned on the rails by fitting
its lower guide wheels and rail guards. The lower
guide bearings have the task of preventing the
saw carriage from tilting and the rail guards keep
the rails and the saw carriage’s wheels free from
dirt and the like. Assembled on the saw carriage
are:
• Two lower guide wheels
• Four rail guards.

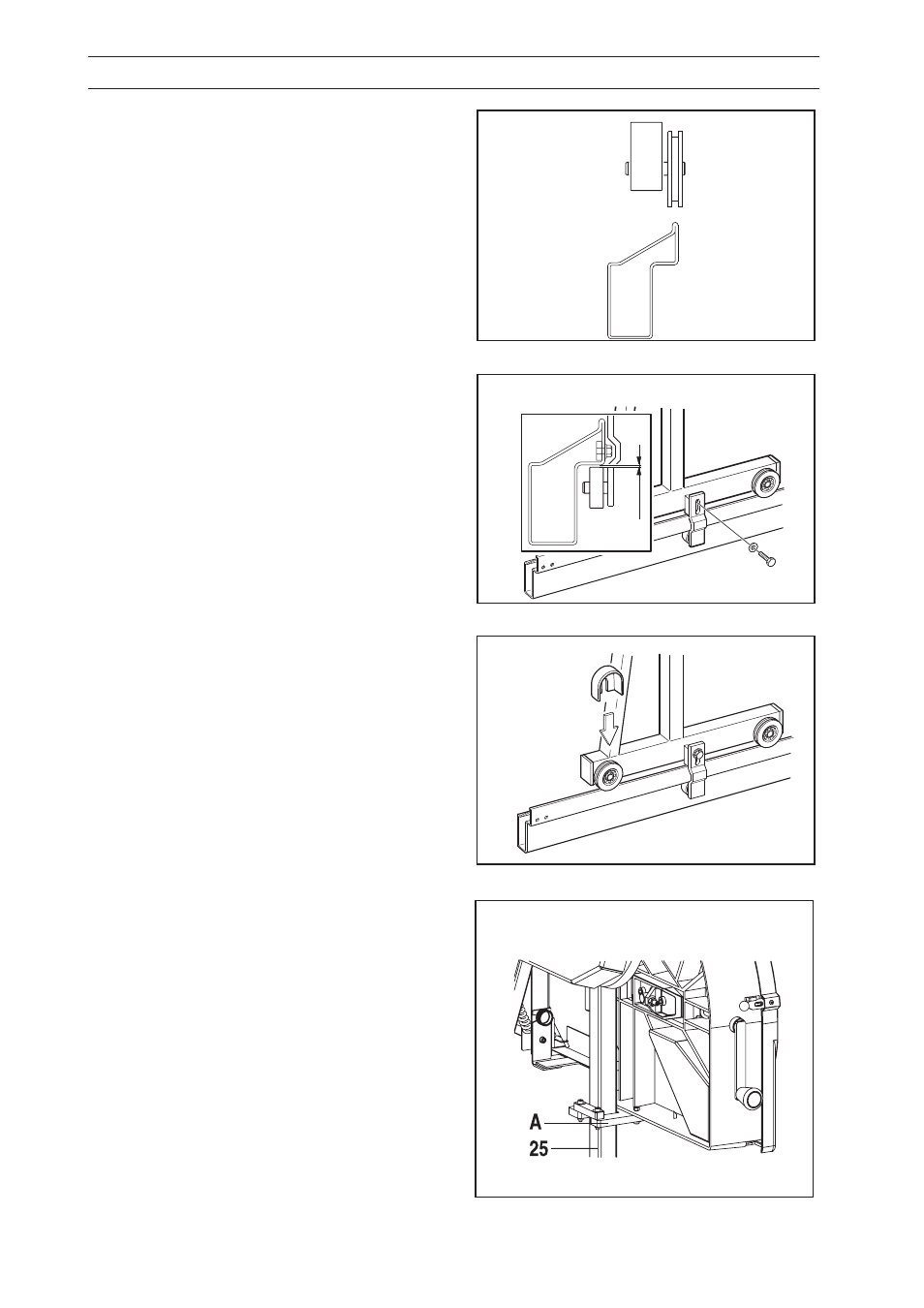

FIG. 23
FIG. 24
FIG. 26
FIG. 25
0,2 mm
