13
Using an HP16534A oscilloscope
If you are using an HP 16534A oscilloscope, then follow this
procedure.
1. Access the oscilloscope menus.
To view your measurements with an HP16534A
oscilloscope, you need to exit the MultiProbe Control
menus, then enter the oscilloscope menus. Select the
MultiProbe field, then select the oscilloscope module.
2. Use the oscilloscope controls to run and adjust the
measurement.
If you need help, refer to the documentation on your
oscilloscope.
3. Select new signals.

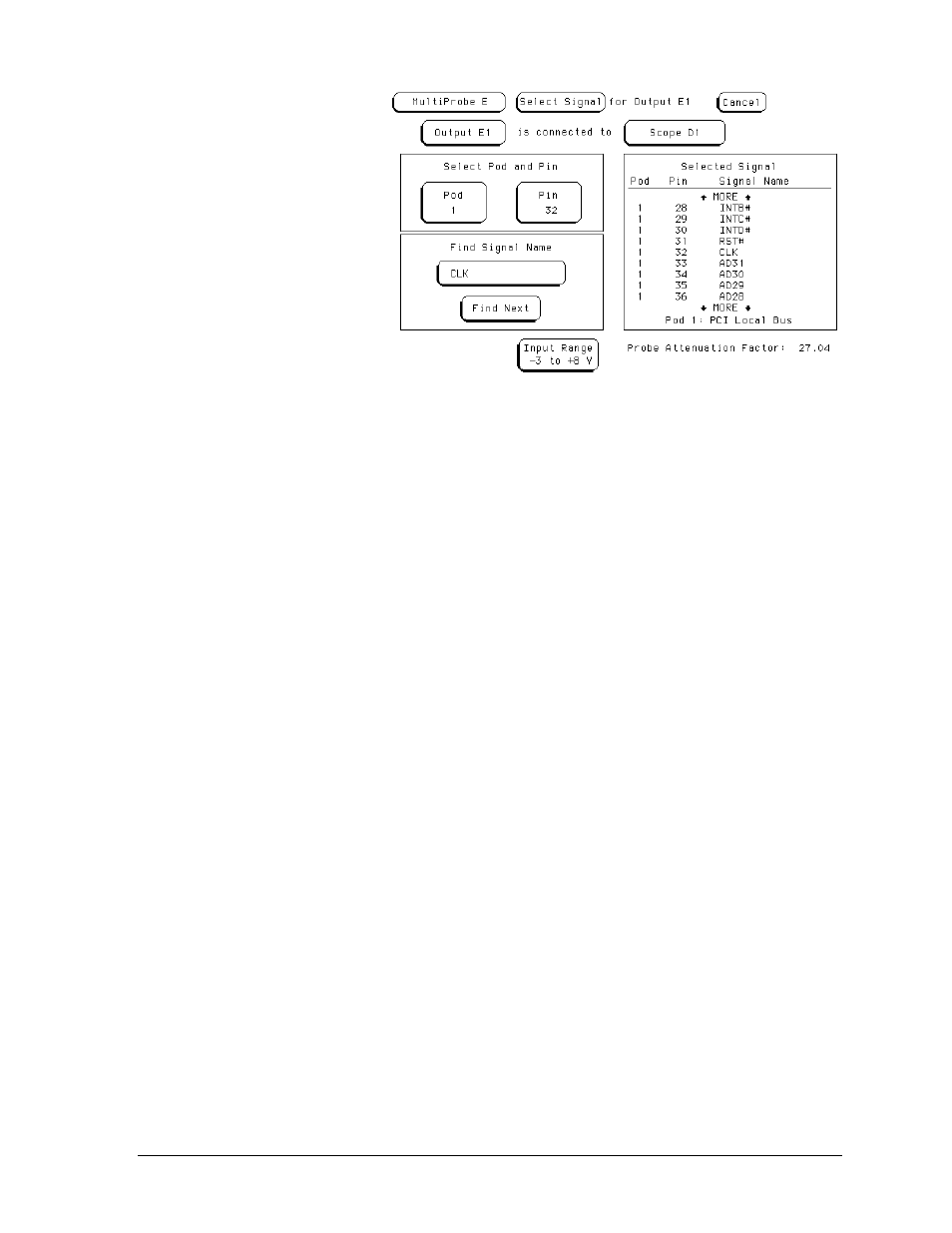

You can select signals from the oscilloscope Select
Signals field, the oscilloscope Scroll Signal field, or the
MultiProbe Select Signal menu. Selecting signals from
the oscilloscope menus is possible only with the
HP16534A Oscilloscope.
A scope picture taken with the PCI Scope Preprocessor of a
glitch with FRAME# and the PCI clock appears below.
Acquiring signals
with an Oscilloscope
