Analog Analysis
Since the PCI Scope Preprocessor interface contains only
passive matching terminators it introduces negligible skew to the
PCI Local Bus signals.
The following procedure describes the major steps required to
perform analog analysis measurements with the PCI Scope
Preprocessor module.
1. Install the PCI Scope Preprocessor module into a slot in
the target PCI Local bus.
2. Load the PCI MultiProbe configuration file
PCI_MUL.DUT from the MULTIPRB directory on the
hard disk. See page 9 for details on how to load this
file.

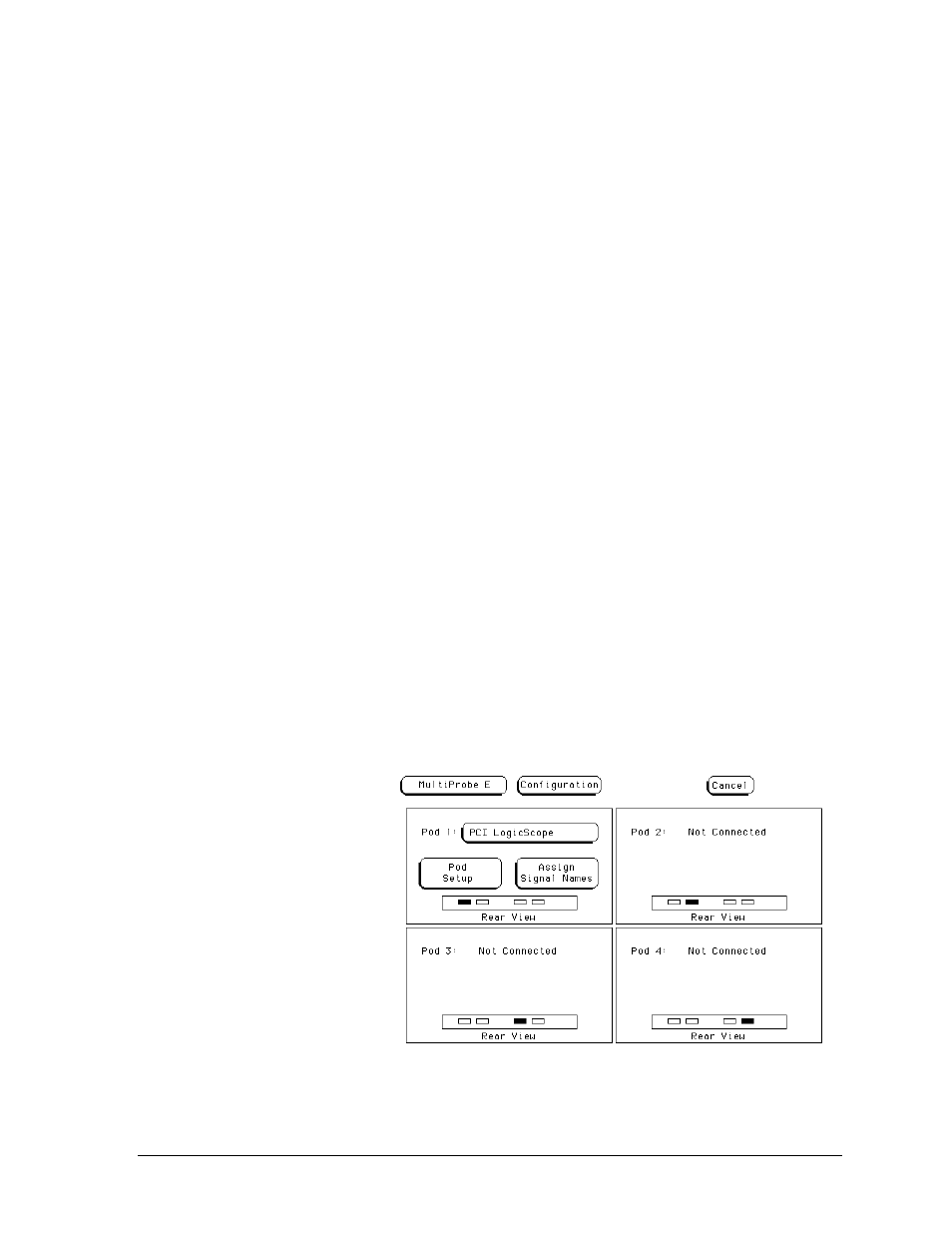

Once the file is loaded the POD that is connected to the PCI
Scope Preprocessor will be assigned the name PCI LogicScope
as shown below
