14
CONNECTION

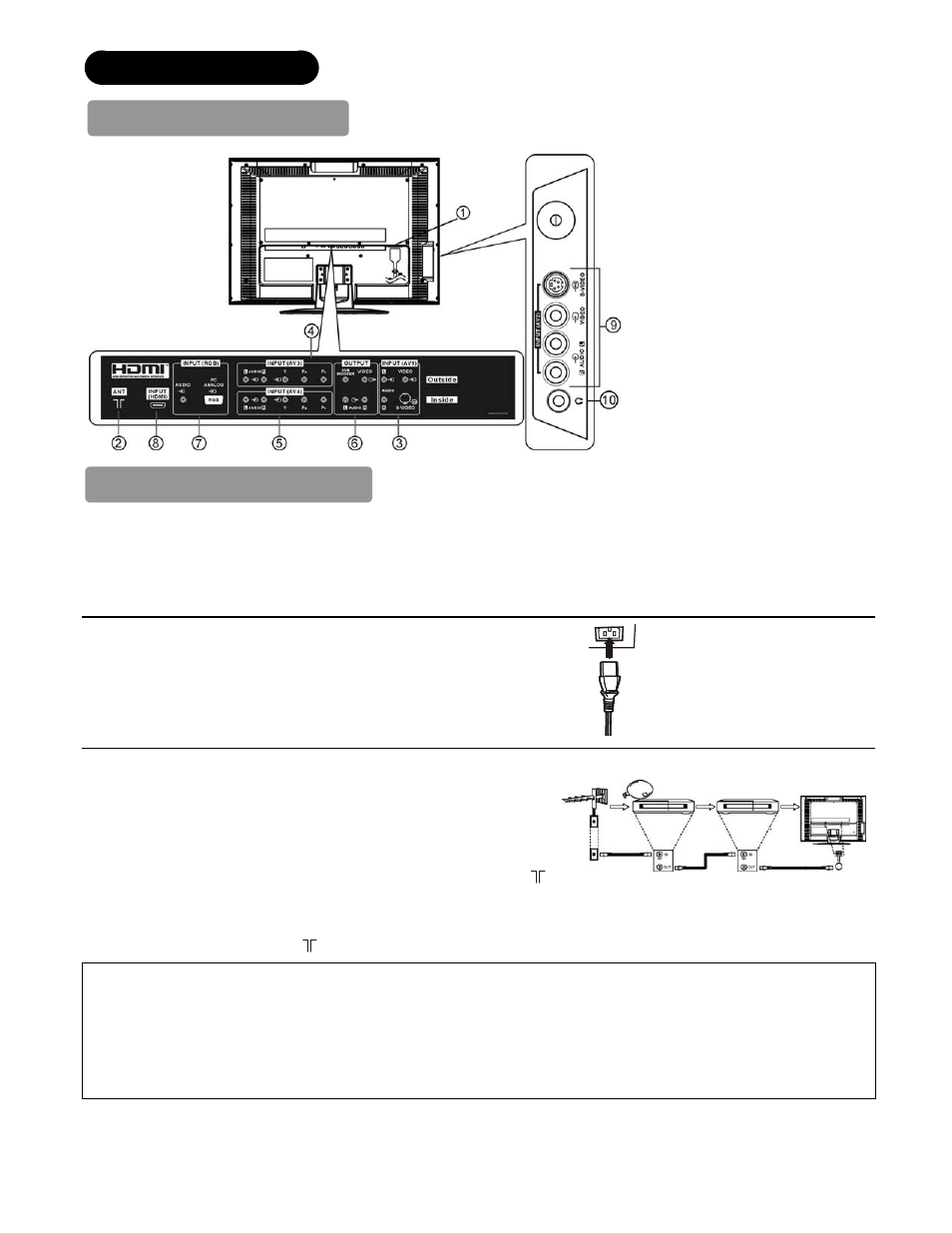

Terminal Positions
Rear
1. Power Cord Socket
2. Aerial
Socket
3. AV1
4. AV3
5. AV4
6. Monitor Out and Sub Woofer
7. RGB
8. HDMI
Side
9. AV2
10. Headphone output
Connecting Procedure
Your television is ready for various kinds of connections. Make a connection in the following steps. Be sure to turn off the
Main Power first when connecting external equipments.
1. Connect Power Cord to the rear panel.
2. Connect Aerial Lead.
3. Connect your external equipments to the television if any.
4. Connect the Power Plug to the Wall Socket.
1. Connect Power Cord to Rear Panel.
Connect Power Cord to the television.
* Make sure not to connect the Power Plug to the Wall Socket until all
connections are completed.
2. Connecting Aerial Lead.
There are two ways to connect Aerial Lead.
(1)When you do not have any other external equipment: STB
Connect the Aerial Lead directly into the Socket at rear panel.
(2)When you have one or more external devices to connect:
1. Use RF cable to connect between each equipment and Antenna.
2. Connect the Aerial Lead to an equipment ”In” Socket marked
3. Connect the RF cable from the equipment “Out” to the other
equipment “In”.
4. Then, connect from the equipment ”Out” to “ANT” on the LCD
screen Socket on marked .
[Example: Connecting Antenna through STB
and VCR.]
Precautions when connecting the aerial
Ɣ Please use a coaxial cable which is free from interference to connect the aerial. Avoid using a parallel flat feeder wire as
interference may occur, causing reception to be unstable and stripe noise to appear on the screen.
Ɣ Avoid using indoor aerial as this may be affected by interference. Please use CATV net or outdoor aerial.
Ɣ For safety, install an external aerial conforming to AS1417.1 (applicable for Australia only)
Ɣ If there are noise appearances in the picture of VHF-Low band channel, please use the double-shielded cable (not
provided) for RF LEADS to reduce the noise.
STB VCR
