598-1222-02

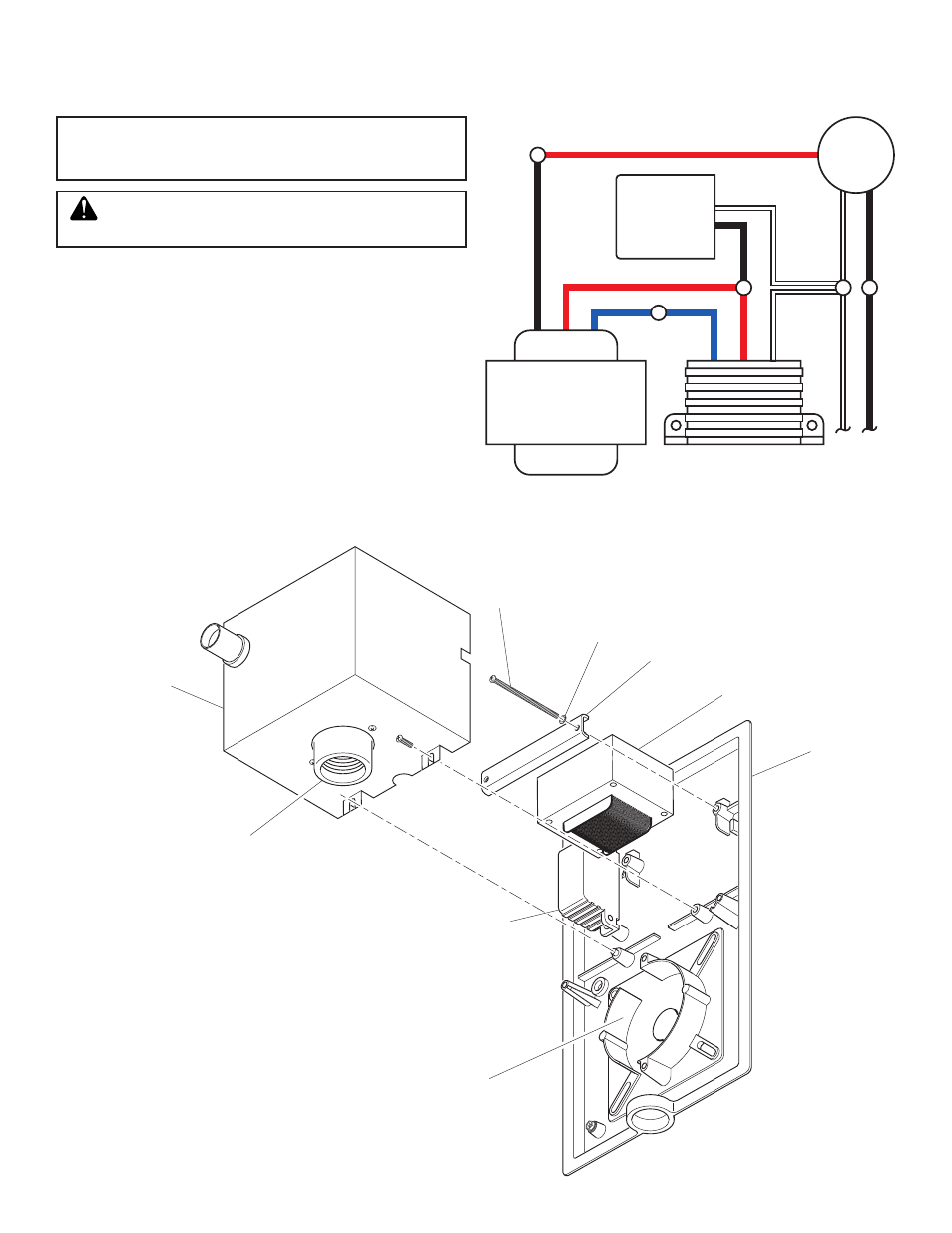

Lamp
Socket
Photocell
Socket
Ballast
Ignitor
Red
Red
Red
Blac
k Blac
k
Blue Blue
White
White
White Blac
k
White Blac
k
120V AC
Input
Ballast Assembly Replacement Instructions
1. Remove plastic cover.
2. Remove
bulb.
3. Remove two screws holding ballast cover (white, metal box with
light socket in it).
4. Remove tape from wire bundle. Be careful not to damage wires.
5. Label wires according to wiring diagram.
6. Remove wire nuts from wires. Retain wire nuts to connect replace-
ment ballast assembly.
7. Remove two long screws and bracket holding ballast in place.
8. Dispose of used ballast assembly.
9. Connect the replacement ballast assembly following steps 1 through
7 in reverse order.
Ballast assembly can be replaced without the
cutting of any wires. Use of a qualifi ed electrician is
recommended.
Aluminum Fixture
Housing
Ballast
Lamp Socket
Ignitor
Ballast Retention Bracket
Lock Washer
Ballast Retention Screw
Ballast Cover
Note: Refl ector is not shown for clarity.
WARNING: Turn power off at the fuse or circuit
breaker.
