III. Cleaning and Maintenance
This icemaker must be cleaned and maintained in accordance with the instruction
manual and labels provided with the icemaker. Consult with your local distributor
about cleaning and maintenance service. To obtain the name and phone number of
your local distributor, visit www.hoshizaki.com or call Hoshizaki Technical Support at
1-800-233-1940 in the USA.
WARNING
1. Only qualified service technicians should service this icemaker.
2.
CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after any cleaning or maintenance is done to the unit.
Make sure that none have fallen into the storage bin.
3. The storage bin is for ice use only. Do not store anything else in the storage
bin.

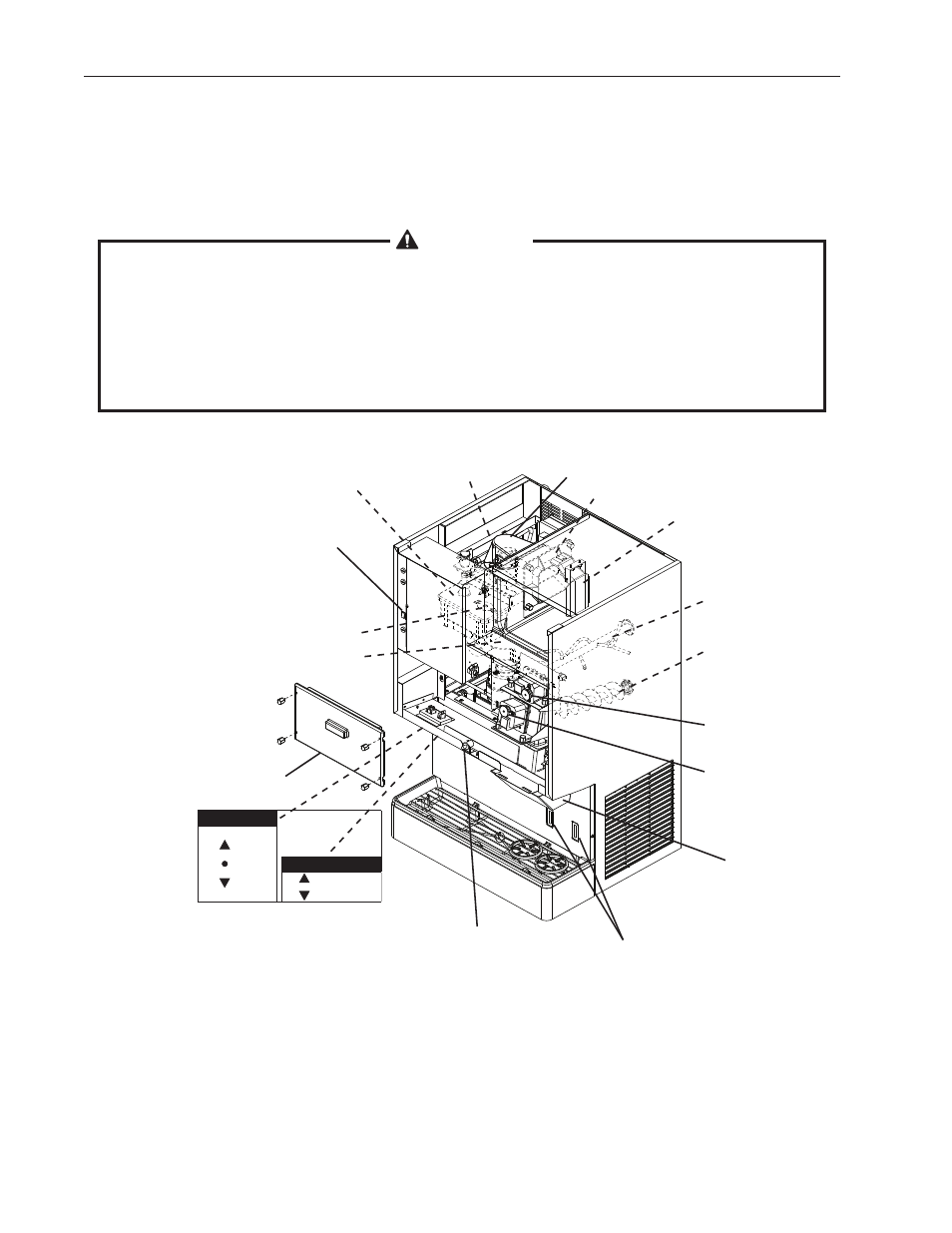

Fig. 7
CONTROL
DISPENSE MODE
4A1038-014
ICE
OFF
DRAIN
PORTION
CONTINUOUS
Spout B
Spout A Extruding Head
Agitating Motor
Dispensing Motor
Agitator
Dispensing
Auger
Power Switch
Reservoir
Bin Control Assembly
Storage Bin Cover
Spout Cover
Evaporator Assembly
Safety Switch
Optical Sensors (-OS model)
Float Switch
Assembly
