B. How to Remove Panels

See Fig. 1 or Fig. 2

• Front Panel: Remove the screw. Lift up and towards you. Disconnect the connector on

push-button models.

• Top Panel: Lift up at front slightly, push rearward and lift off.
• Apron Panel: Remove the screws and pull towards you. Disconnect the connectors on

Opti-Serve models.

• Side Panels: Remove the screws and pull towards you.
• Storage Bin Cover: Remove the thumbscrews and pull towards you.

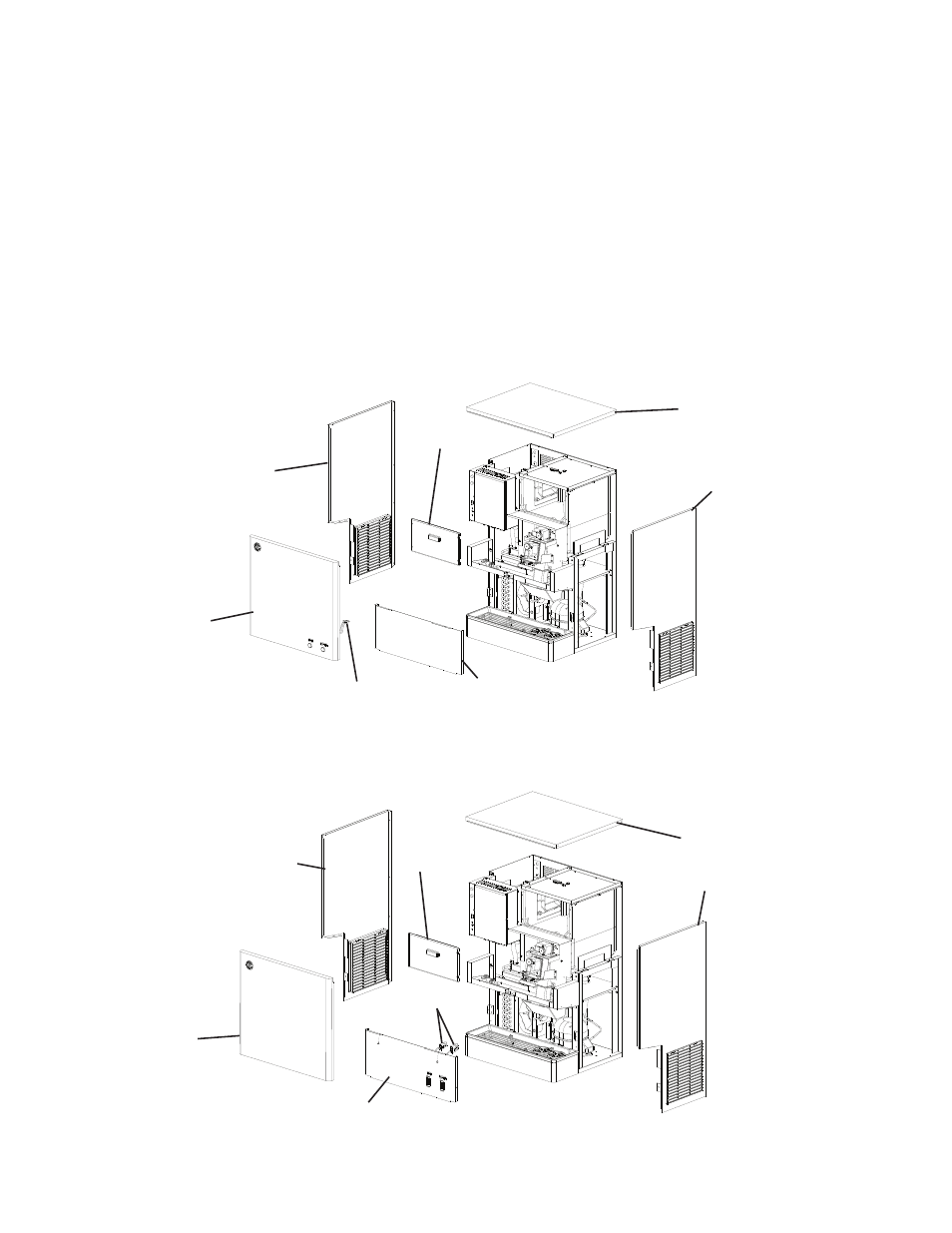

Fig. 1

DCM-300BAH

(Push-Button Models)

DCM-300BAH-OS

(Opti-Serve Models)

Fig. 2

Top Panel

Side Panel

Front Panel

Connector

Side Panel

Front Panel

Apron Panel

Connectors

Apron Panel

Top Panel

Side Panel

Storage Bin

Cover

Side Panel

Storage Bin

Cover
