Hoshizaki FD-1001MRH(-C) - Manual (Page 16)

16
E. Electrical Connection
WARNING
For All Models
1. Electrical connection must be hard-wired and must meet national, state, and
local electrical code requirements. Failure to meet these code requirements
could result in death, electric shock, serious injury, fire, or severe damage to
equipment.
2. This unit requires an independent power supply. See the nameplate for
proper voltage and breaker/fuse size. Failure to use a proper breaker or fuse
can result in a tripped breaker, blown fuse, or damage to existing wiring. This
could lead to heat generation or fire.
3. THIS UNIT MUST BE GROUNDED. Failure to properly ground this unit
could result in death or serious injury.
4. Electrical connection must be made in accordance with the instructions on
the "WARNING" tag, provided with the pig tail leads in the junction box. See
Fig. 3.
Additional Warnings for Remote Air-Cooled Model
5. THE REMOTE CONDENSER UNIT MUST BE GROUNDED. The power
supply and ground wire to the remote condenser unit are supplied from the
icemaker. See "II.F.5. Electrical Connection."
6. To reduce the risk of electric shock, make all remote condenser unit
connections before connecting the icemaker power supply.
7. On remote air-cooled model, the icemaker should have power for a minimum
of 4 hours prior to startup to prevent compressor damage.
• Usually an electrical permit and services of a licensed electrician are required.
• The maximum allowable voltage variation is ±10 percent of the nameplate rating.
• The white lead must be connected to the
neutral conductor of the power source.
CAUTION! Miswiring may result in severe
damage to the icemaker. See Fig. 3.
• The opening for the power supply connection
is 7/8" DIA to fit a 1/2" trade size conduit.

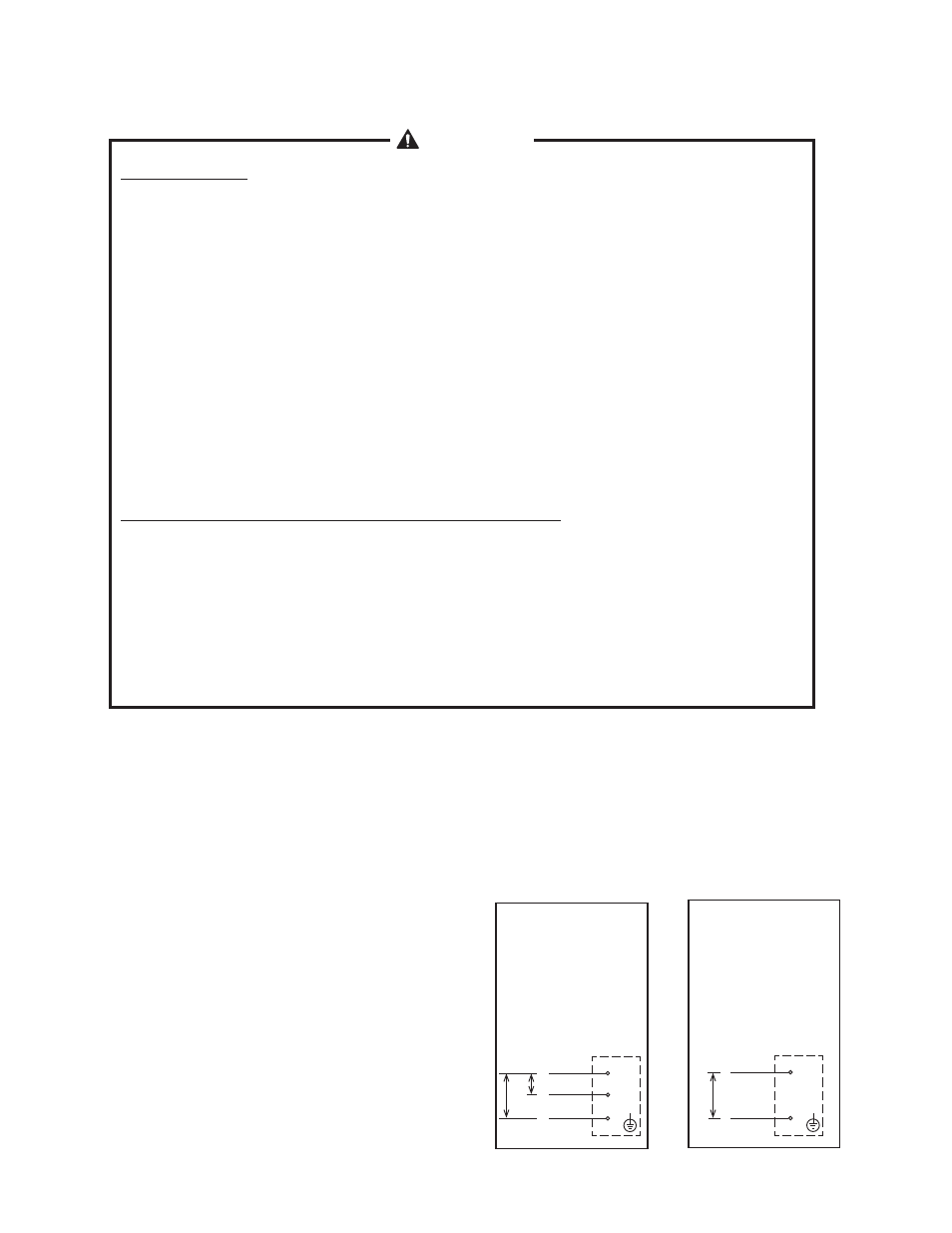

Fig. 3
FD-1001MAH(-C)
FD-1001MWH(-C)
FD-1001MRH(-C)
WARNING
ELECTRICAL CONNECTION
The white lead must be connected
to the neutral conductor of
the power source.
Miswiring results in severe
damage to the icemaker.
(See Fig. below)
115-120/60/1
435005-012
JUNCTION BOX
115-120V
BROWN
WHITE
L
N
WARNING
ELECTRICAL CONNECTION
The white lead must be connected
to the neutral conductor of
the power source.
Miswiring results in severe
damage to the icemaker.
(See Fig. below)
208-230/60/1
428430-014
JUNCTION BOX
208-230
V
BROWN
BLACK
L1
L2
WHITE
(3 wire with neutral
for 115V)
N
115- 120V
FD-1001MLH(-C)
