Page 102

100
Electric Starter Will Not
Operate
FUSES
Battery Will Not Charge
TAKING CARE OF UNEXPECTED PROBLEMS

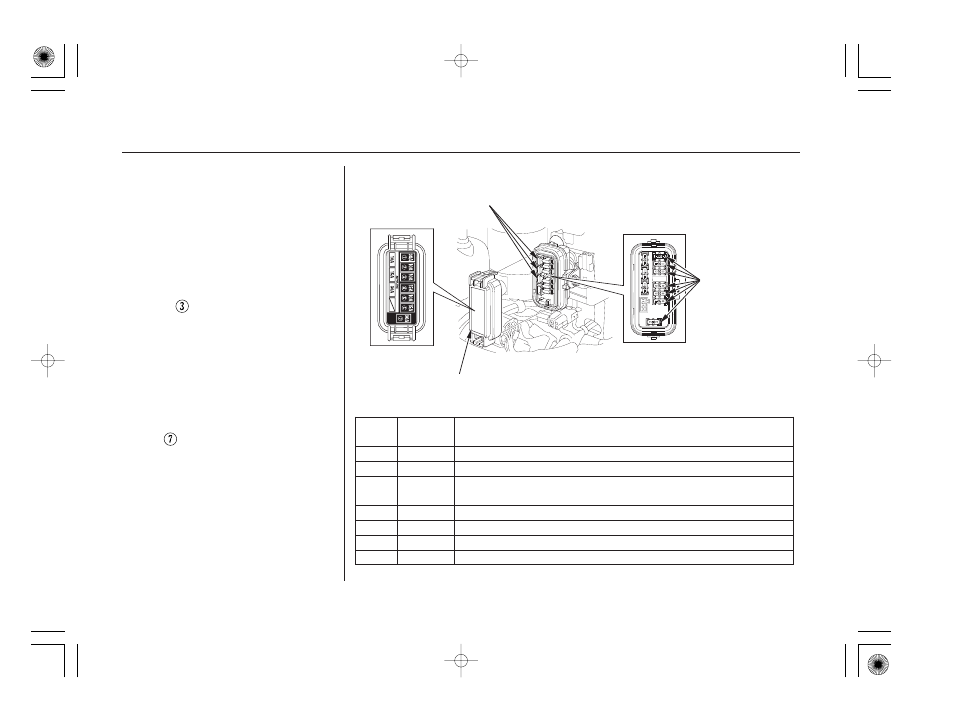

FUSE CASE LID
FUSES
(10 A, 15 A, 30 A)
SPARE FUSES
(10 A, 15 A, 30 A)
The 10A, 15A, and 30A fuses protect
the electric starter relay and related
circuits.
The 10A
fuse protects the ignition
switch and related circuits. If this
fuse blows, the engine will not start
or run, and the power trim/tilt switch
will not activate the trim/tilt
mechanism.
A 30A
alternator fuse protects the
alternator circuit. If the alternator
fuse blows, the engine will not
charge the battery.
Fuse
No.
1
2
3
4
5
6
7
Rating
30 A
10 A
10 A
15 A
10 A
15 A
30 A
Connected Components
Gathered fuse (No. 2, 4, 5, 6 Fuses)
Fuel pump (high pressure side)
Power trim/tilt relay, Main relay, Warning buzzer,
Indicator, Starter solenoid switch, each meters
Ignition coils
Data link connector, H 02 sensor, Trim angle sensor
PGM-FI ECM, Fuel injectors, CKP sensor 1, 2
Alternator (regulator rectifier-battery charging)
