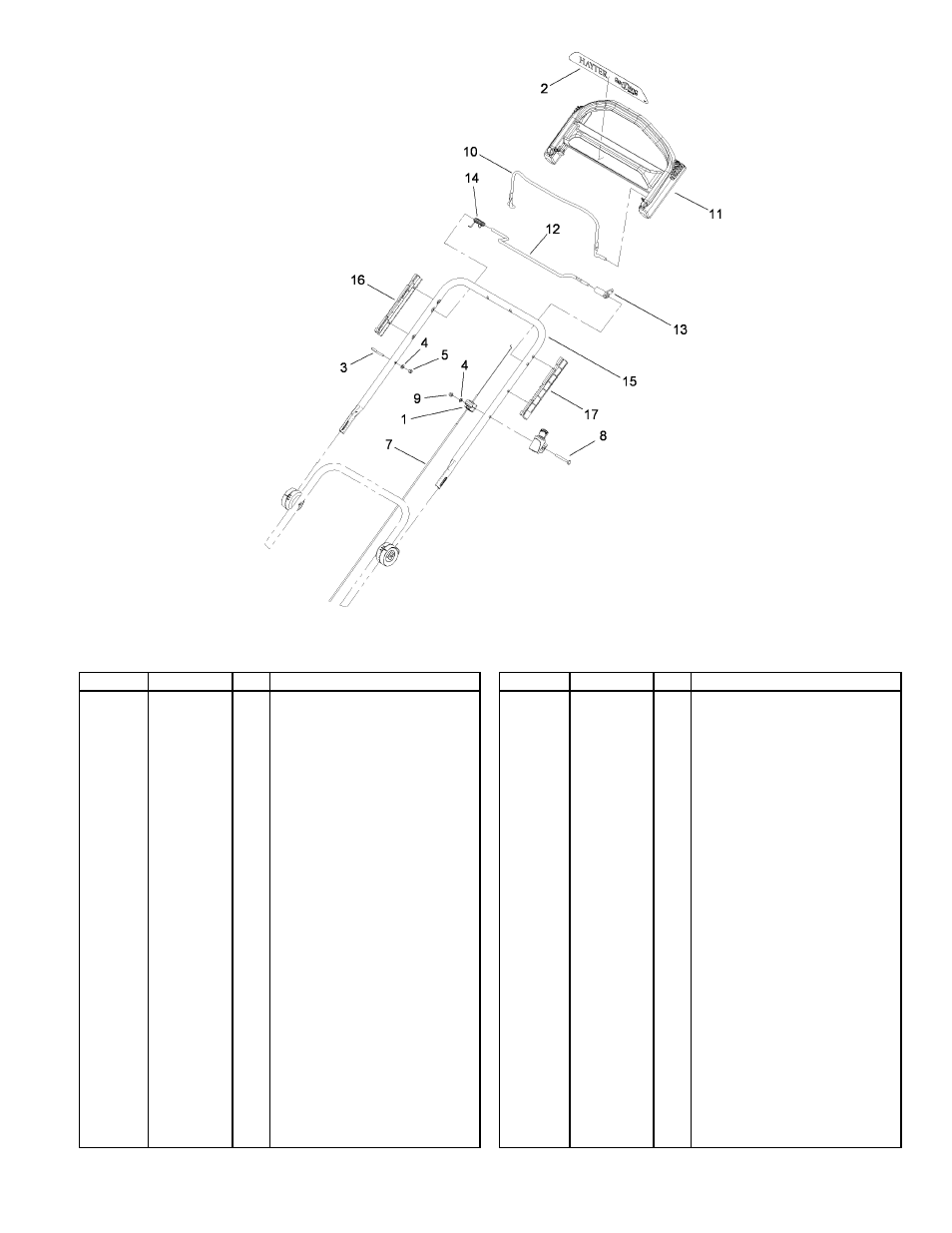

Upper Handle Assembly

13

Ref

Part No.

Qty. Description

Anchor-Cable

1

99-5239

1

Decal-Ads, Handle

2

111-1905

1

Guide-Cord

3

110-7186

1

Washer

4

110-8450

2

Nut-Hex, Nyloc

5

110-8451

1

Cable-Traction

7

110-9162

1

Screw-HH

8

321-50

1

Nut-Lock, NI

9

3296-73

1

Bail-Brake

10

104-8679-03

1

Handle-Control

11

104-8678

1

Bar-Control, Traction

12

99-1588

1

Lever-Traction

13

99-1589

1

Spring-Torsion

14

104-8690

1

Handle-Upper

15

114-5369

1

Guide-RH

16

105-6841

1

Guide-LH

17

105-6842

1
