Lower handle assembly – Hayter Mowers R48 User Manual
Page 7
111-2133 Rev B

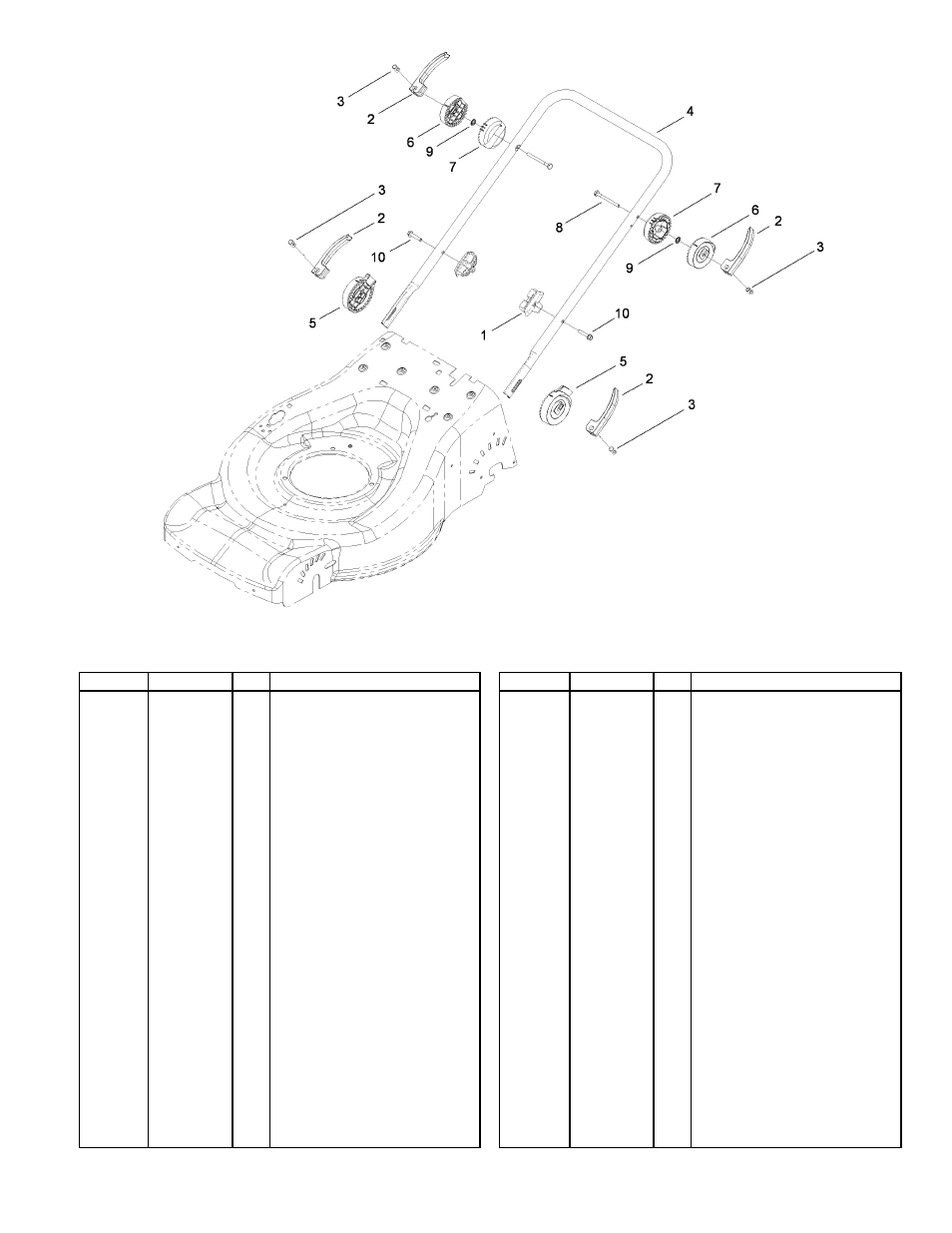

Lower Handle Assembly
10
Ref
Part No.
Qty. Description
Anchor-Bag
1
112-3928
2
Lever-Locking, Handle
2
115-2791
4
Pivot-Pin, Threaded
3
110-1180
4
Handle-Hoop, Lower
4
110-7083
1
Adapter-Ratchet, Lower
5
114-5381
2
Adapter-Ratchet, Midpoint
6
110-7156
2
Adapter-Clamp, Midpoint
7
110-7157
2
Screw-HH
8
110-7161
2
Washer-Starlock, Push
9
110-7188
2
Screw-HWH
10
32144-110
2
7
