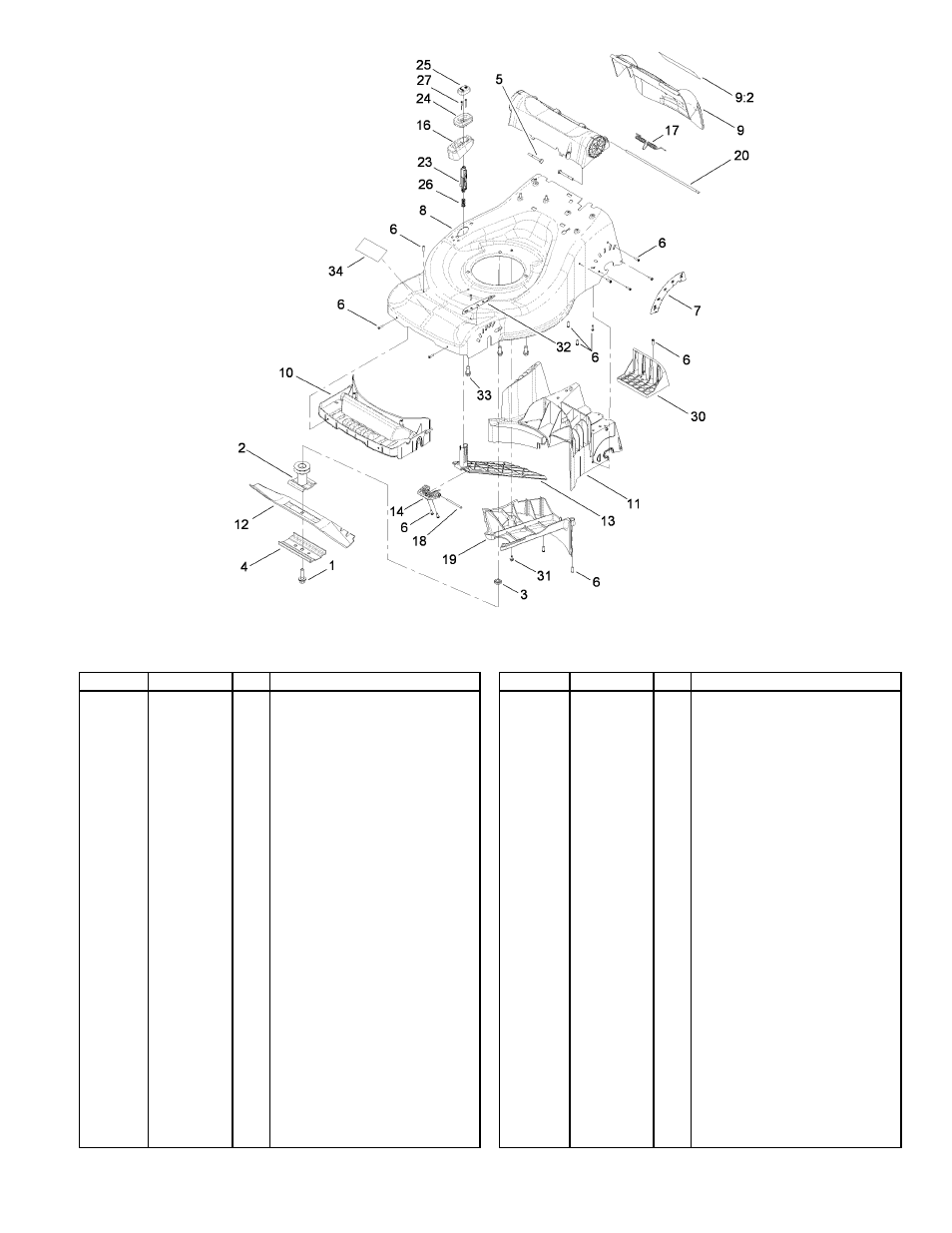

Deck and Baffle Assembly
2
Ref Part No. Qty. Description
Bolt-Blade 1 105-8579 1
Blade Driver ASM 2 106-3987 1
Spacer-Driver 3 106-3999 1
Support-Blade 4 108-3766 1
Screw-HH 5 110-7110 2
Screw-Torx, Pan Head 6 110-1271 23
Decal-HOC, Rear 7 110-7058 1
Housing-Deck 8 115-2784 1
Rear Door ASM 9 114-5373 1
Decal-Warning 9:2 110-7126 1
Baffle-Front 10 110-7066 1
Baffle-Rear 11 114-5380 1
Blade 12 110-7080 1
Door-Recycle 13 110-7094 1
Hinge-Door, Recycle 14 110-7095 1
Cover-Door, Recycle 16 110-7097 1
Spring-Torsion 17 110-7107 1
Pin-Hinge 18 110-7108 1
Cover-Belt 19 110-7109 1
Bar-Pivot, Rear Door 20 110-7119 1
Latch-Recycle 23 110-7129 1
Housing-Knob 24 110-7136 1
Knob 25 110-7138 1
Spring-Compression 26 110-7141 1
Ref Part No. Qty. Description
Screw-Torx, Pan Head 27 110-7143 2
Tray-Battery 30 110-7154 1
Screw-HH 31 110-7170 1
Decal-HOC 32 110-7178 1
Screw-Taptite, HWH 33 110-7182 3
Decal-Hayter 34 410087 1
