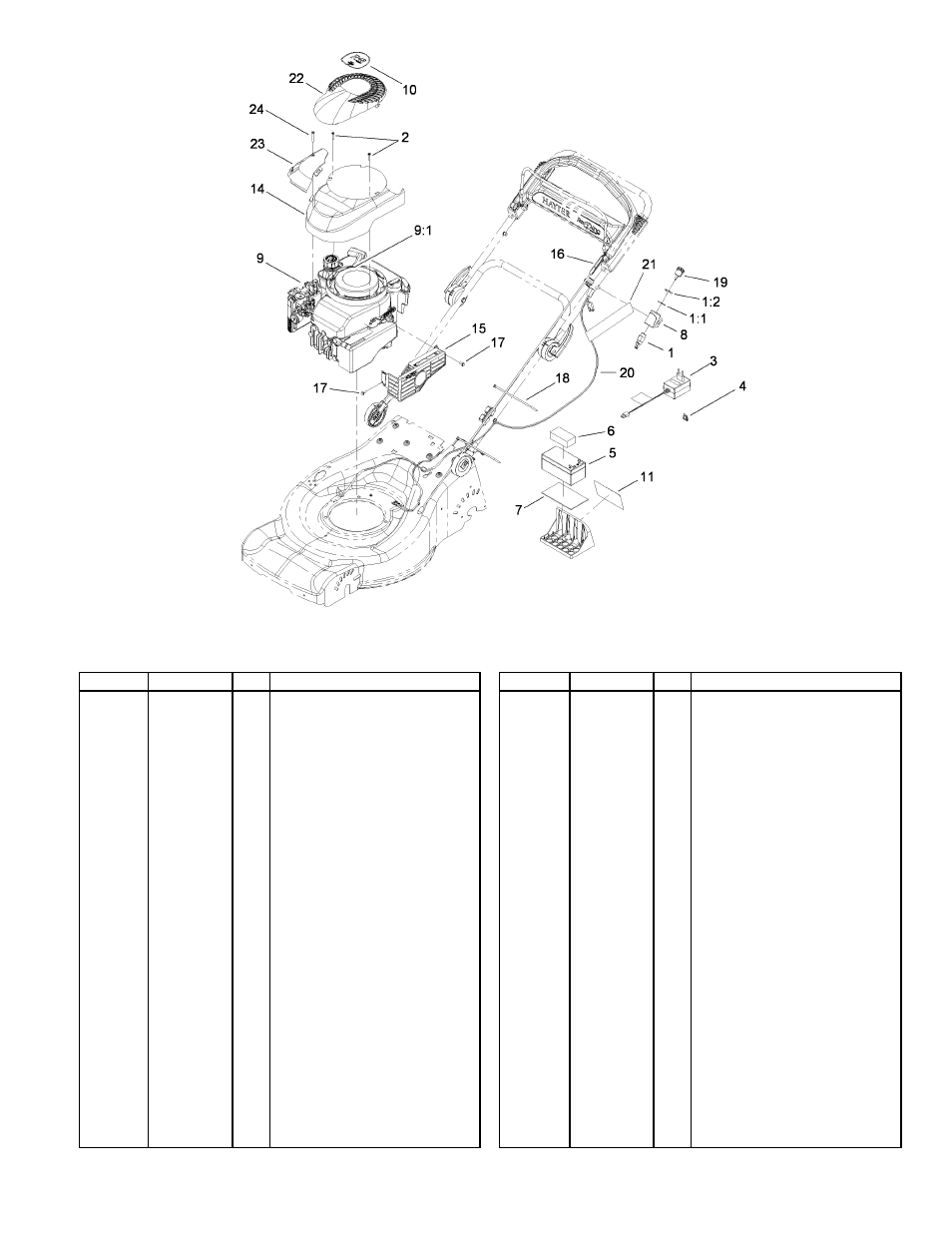

Engine Assembly

8

Ref

Part No.

Qty. Description

Switch-Starter

1

46-5780

1

Washer-Tooth

1:1

3254-5

1

Nut-HH

1:2

218-461

1

Screw-PPH

2

93-0231

2

Power Supply ASM

3

HY412010

1

Fuse-40 Amp

4

99-6124

2

Battery-12 Volt

5

106-8397

1

Foam-Battery, Top

6

107-3774

1

Foam-Battery

7

108-0987

1

Mount-Switch

8

108-9760

1

Engine-Briggs & Stratton, 126T05-
1840-B1

9

1

no

Stop-Rope

9:1

2210-316

1

Decal

10

111-1906

1

Decal-Fuse

11

110-7059

1

Shroud

14

115-3859

1

Shield-Muffler

15

115-2787

1

Cable-Brake

16

110-9163

1

Screw-Taptite

17

32144-1

3

Strap-Tie

18

614249

2

Key

19

700918

1

Harness-Wiring

20

110-9165

1

Decal-Harness

21

104-7953

1

Cover-Rewind

22

115-3860

1

Ref

Part No.

Qty. Description

Cover-Control

23

115-3861

1

Screw-PPH

24

115-3862

1
