Hayter Mowers R48 - Manual (Page 10)

111-2133 Rev B
Briggs and Stratton 126T05-1840-B1
E1

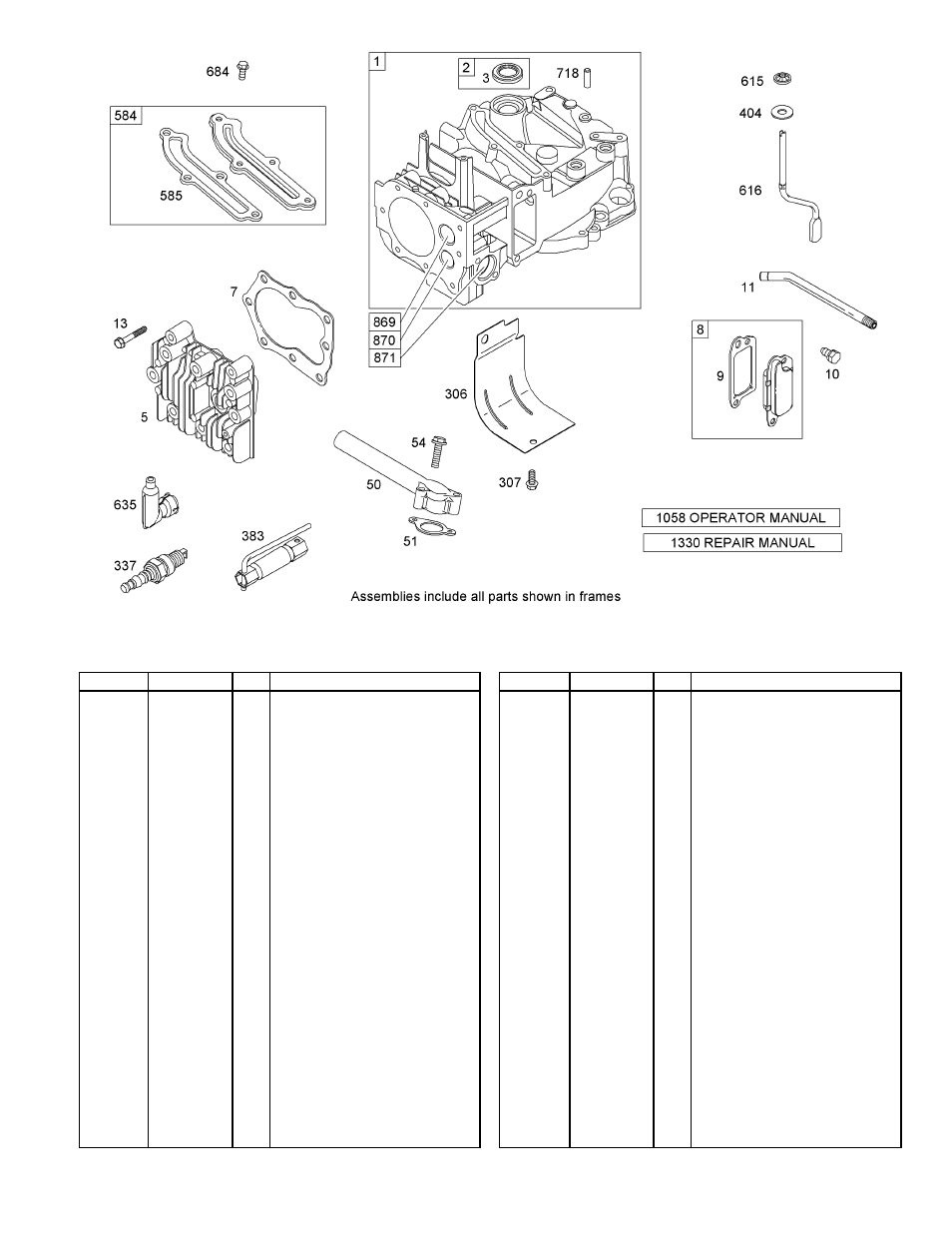

Cylinder Assembly
Ref Part No. Qty. Description
Cylinder ASM 1 697322 1 o
Bushing And Seal Kit 2 399269 1 o
Seal-Oil (Magneto Side) 3 299819s 1 oq
Head-Cylinder 5 691160 1 o
Gasket-Head, Cylinder 7 692249 1 oq
Breather ASM 8 695250 1 o
Gasket-Breather 9 696125 1 o
Screw (Breather ASM) 10 691125 1 o
Tube-Breather 11 691781 1 o
Screw (Cylinder Head) 13 690912 1 o
Manifold-Intake 50 497465 1 o
Gasket-Intake 51 272199s 1 oq
Screw (Intake Manifold) 54 691650 1 o
Shield-Cylinder 306 690450 1 o
Screw (Cylinder Shield) 307 690345 1 o
Plug-Spark 337 802592s 1 o
Wrench-Spark Plug 383 89838s 1 o
Washer (Governor Crank) 404 690272 1 o
Cover-Passage, Breather 584 697734 1 o
Gasket-Passage, Breather 585 691879 1 oq
Retainer-Shaft, Governor 615 690340 1 o
Crank-Governor 616 698801 1 o
Boot-Spark Plug 635 793351 1 o
Screw (Breather Passage Cover) 684 690345 1 o
Ref Part No. Qty. Description
Pin-Locating 718 690959 1 o
Seat-Valve (Intake) 869 691155 1 o
Seat-Valve (Exhaust) 870 690380 1 o
Bushing-Guide (Exhaust) 871 262001 1 o
Bushing-Guide (Intake) 871 63709 1 o
Operator Manual (West) 1058 MS3262 1 o
Operator Manaul (East) 1058 MS3786 1 o
Repair Manual 1330 270962 1 o
