0116 7201 -36 of 90 - 06/00

Rev. 00 © 2000 Hans Pausch Röntgengerätebau Graf-Zeppelin-Str. 1 D-91056 Erlangen ALL RIGHTS RESERVED Ru

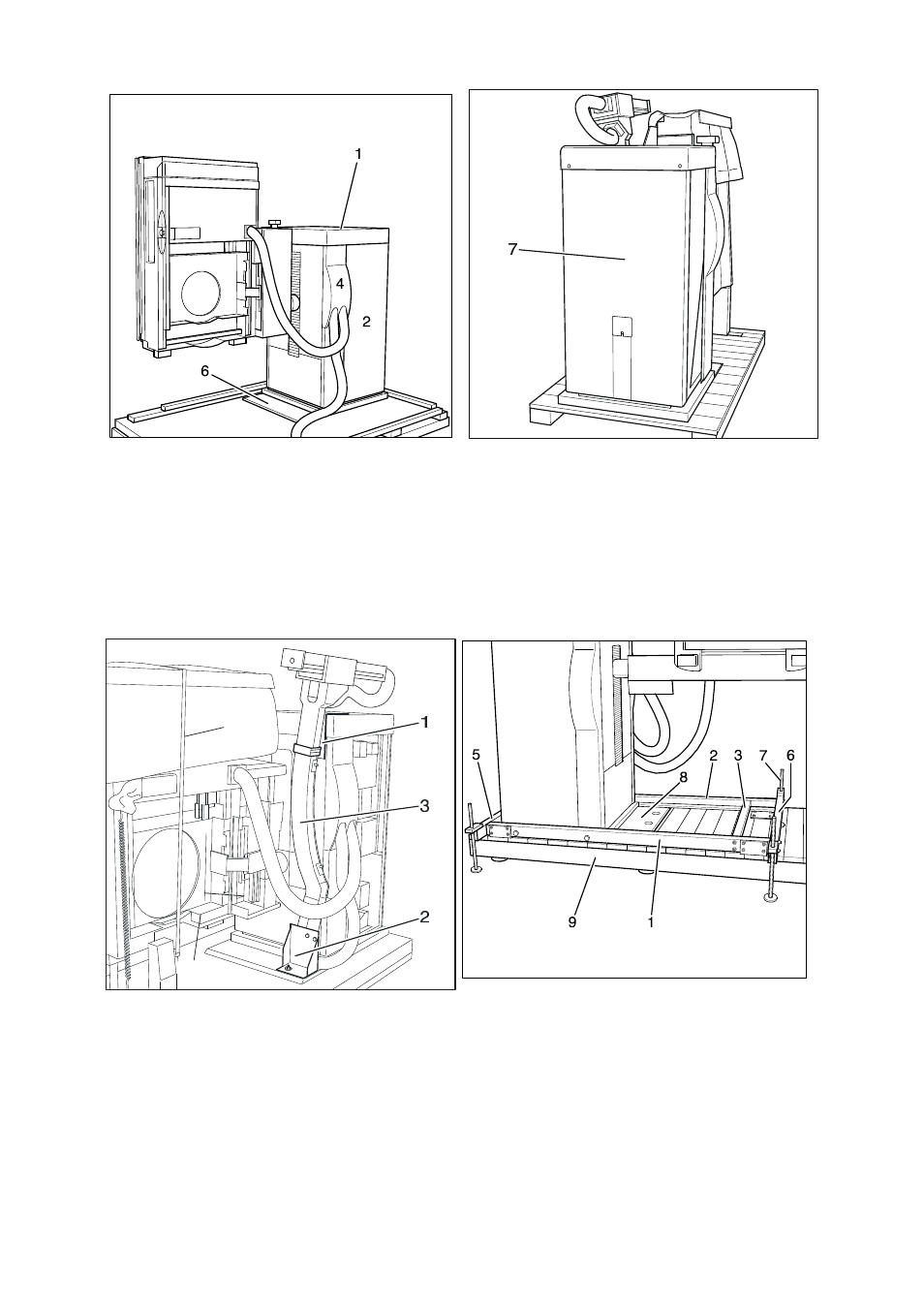

Fig. 03 Fig. 04

Take off the back wall (Fig. 04/Pos. 7).

Notice:
The tube unit support arm (Fig. 05/Pos. 1) is hooked onto the opening of the base with the
mounting bracket (painted red) (Pos. 2) and secured on the floor plate. The tube unit support
arm is unhooked from its holder only after it is installed.



Fig. 05 Fig. 06

2.3 Removing the Unit from the Pallet


Remove the transport safety devices (Fig. 05/Pos. 6, 7 + 8 ).
Install the two support struts of the installation frame (Fig. 06/Pos. 1+2) on both sides of the
unit column and the connector piece (Pos. 3) between the two support struts.

6

7

8
