5. Loosen the two nuts that hold the right rear deck lifting arm. (FIG. 31)
6. Loosen the left rear deck leveling bracket by loosening the flange nuts. (FIG. 32)
7. Loosen the jam nut and back out the 5/16" bolt on top of the adjuster. (FIG. 32)
8. Check to make sure the deck is resting firmly on all of the 3" blocks. Check the front
right deck chain to be sure it is taut. Now, screw both nuts finger tight against the
square block on the right rear deck lift arm. Tighten these two nuts. (FIG. 31)
9. Tighten the 5/16" bolt on the adjuster until the chain is taut. Tighten the jam nut
against the adjuster. Tighten the two flange nuts. (FIG. 32) The deck should now be
level.
10. To adjust the deck height insert the height adjusting stop into the 3-1/4" position. (FIG.
29)
11. Tighten the rear nut against the block attached to the deck lifting pedal as tight as you
can by hand. (Fig. 3) Make sure the stop handle is pushing firmly against the height
adjusting stop so that there is no free play forward or rearward when you shake the
adjustment bar. (FIG. 30)
12. Finger tighten the front nut against the block attached to the deck lifting pedal. Tighten
both nuts and check to make sure that all deck linkage hardware are tight. (FIG. 30)
13. Raise the deck into transport position and remove the blocks from under the deck
corners. The deck should now be level and the deck cutting height properly adjusted.

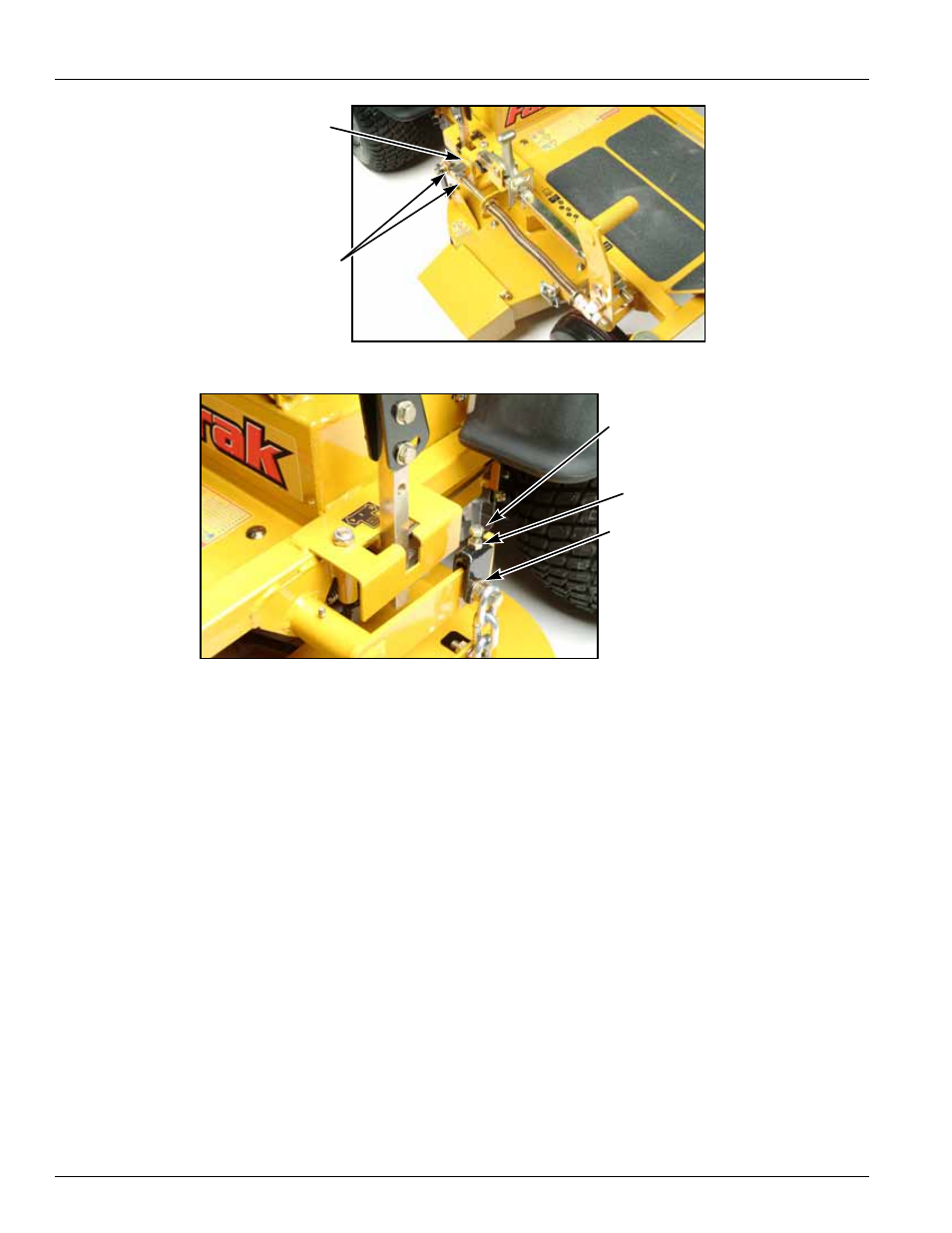

FIG. 31
FIG. 32
NUTS
DECK LIFTING
ARM
5/16" BOLT
FLANGE NUTS
JAM NUT
