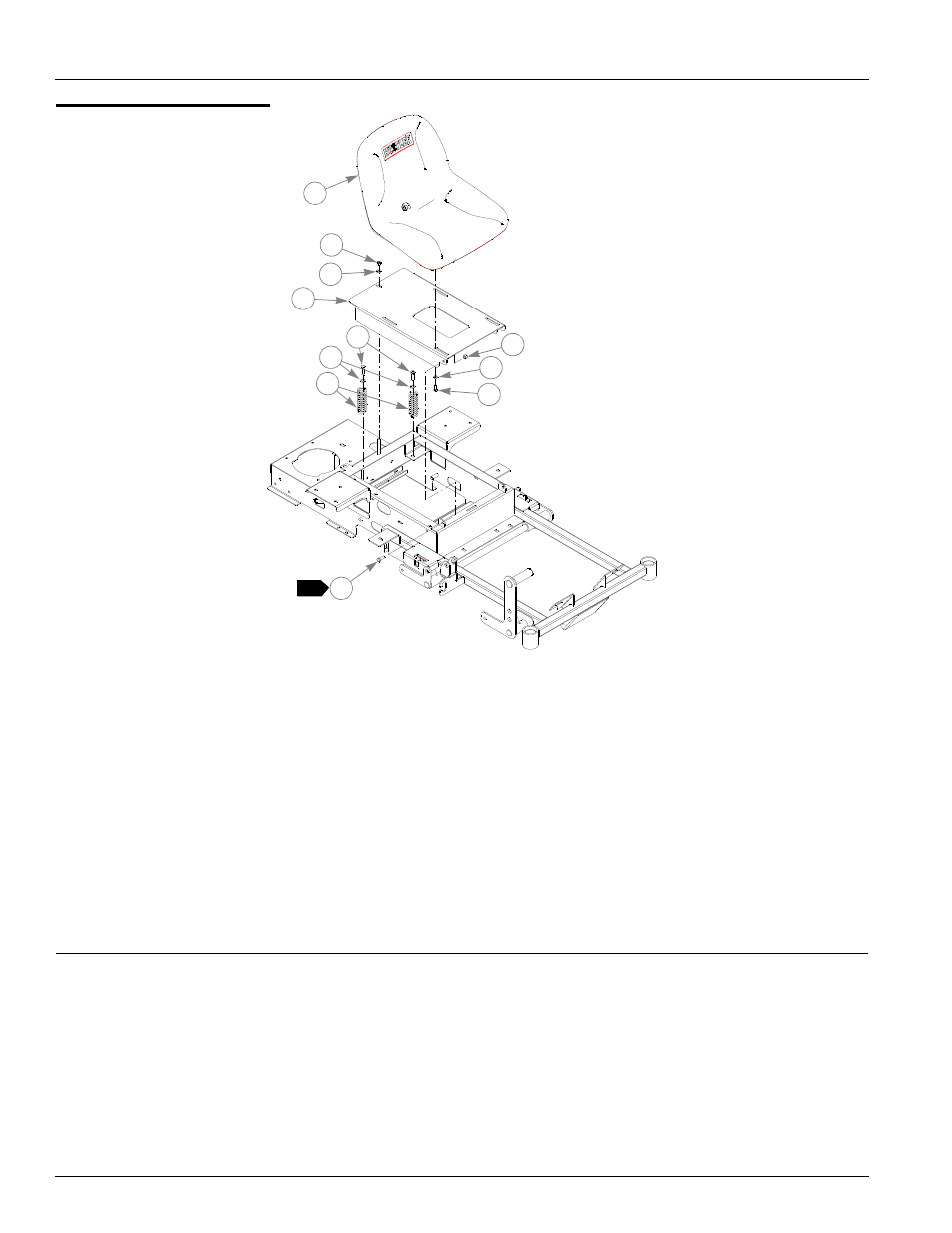

Seat Installation
NOTES:
1. Do not torque, Item 4 (320275 Seat Pan) must pivot on these fasteners.
2. Available service parts and options for Michigan Seat:
INDEX
NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 793679 793679 1 STANDARD MICHIGAN SEAT
2 086660 086660 3 NT .375-16 HX LK NY
3 767954 767954 3 FW .406 X .812 X .060 SAE HD ZN
4 320275 320275 1 SEAT PAN
5 052860 052860 2 CS .375-16 X 1.25 HX G5 ZNYC
6 793851 793851 2 COMPRESSION SPRING, 1.25X4.00X.188
7 768523 768523 4 FW .343 X .687 X .051/.080 HD ZNYC
8 034280 034280 4 CS .312-18 X .750 HX G5 ZNYC
9 036244 036244 2 CS .375-16 X 1.00 HX G5 ZNYC
797456 ARMREST KIT (ROUND STYLE)
793315 SEAT SWITCH KIT
