Hustler Turf FasTrak 36" & 42" Decks none - Manual (Page 15)

333559 09/08 3-3

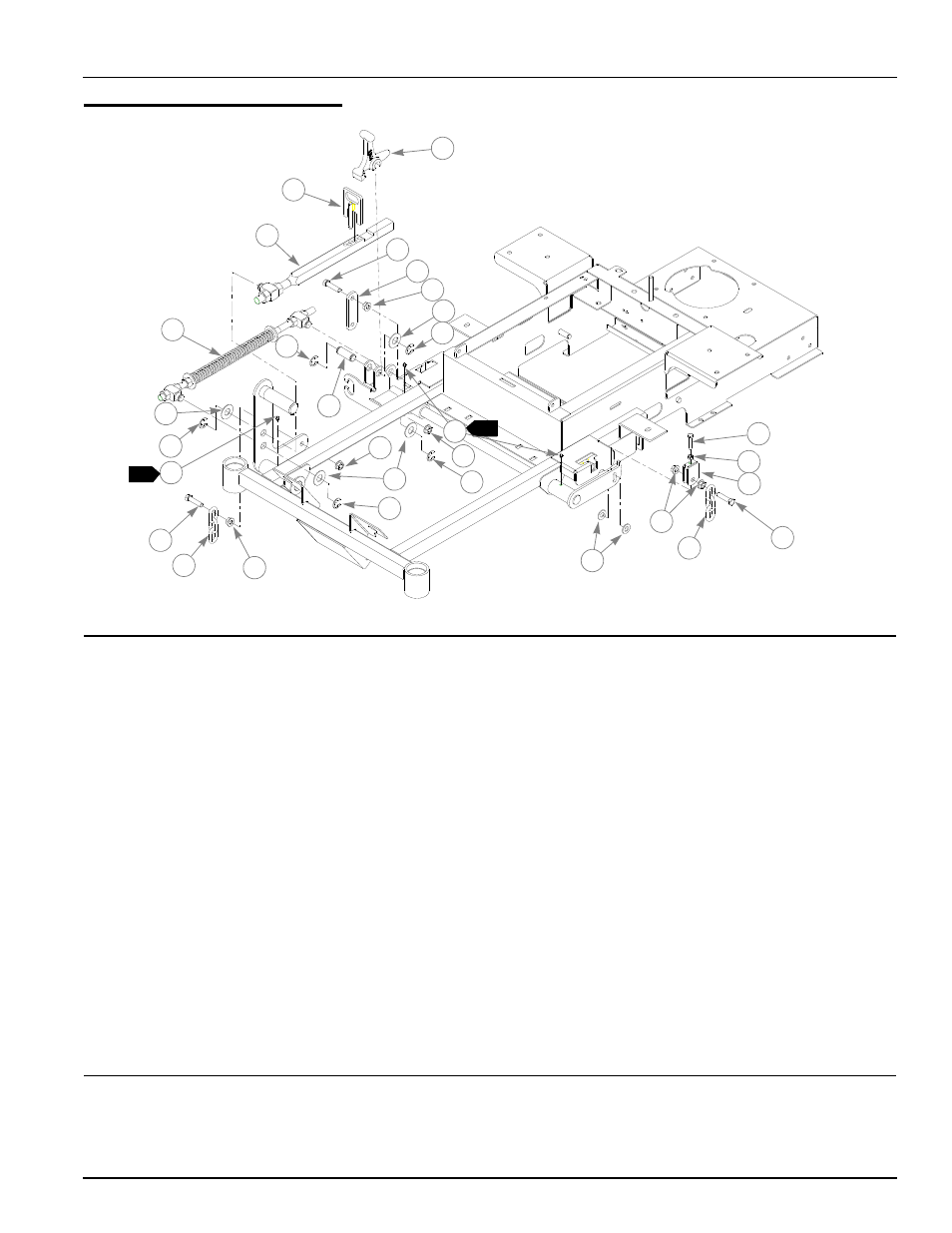

Deck Lift Assembly
NOTES:
1. Apply grease to zerks (see owners manual).
INDEX
NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 348318 348318 1 STOP HANDLE
2 348284 348284 1 HEIGHT ADJUSTMENT STOP
3 793505 793505 1 DECK HEIGHT INDICATOR
4 782995 782995 1 DECK LIFT SPRING
5 055749 055749 2 CS .437-14 X 1.75 HX G5 ZNYC
6 334045 334045 1 DECK LIFT LINK
7 704643 704643 6 NT .437-14 HX FLG ZN
8 025296 025296 4 FW .760 X 1.625 X .08 ZNYC
9 781294 781294 5 E CLIP 1.00 X.625X .050
10 781229 781229 1 CE .750 X 2.25 X 1.75 HEADLESS
11 015495 015495 3 STRAIGHT GREASE FITTING
12 756270 756270 1 CS .312-18 X 1.50 FLTHR GR5 ZNYC
13 034272 034272 1 NT .312-18 HX G5 ZNYC
14 348458 348458 1 DECK LEVELER YOKE
15 781831 781831 1 CS .437-14 X 1.75 FULTH G5 ZNYC
16 360131 018846 2 DECK LIFTCHAIN
17 767962 767962 2 FW .531 X 1.063 X .090 SAE HD ZN
