How to assemble

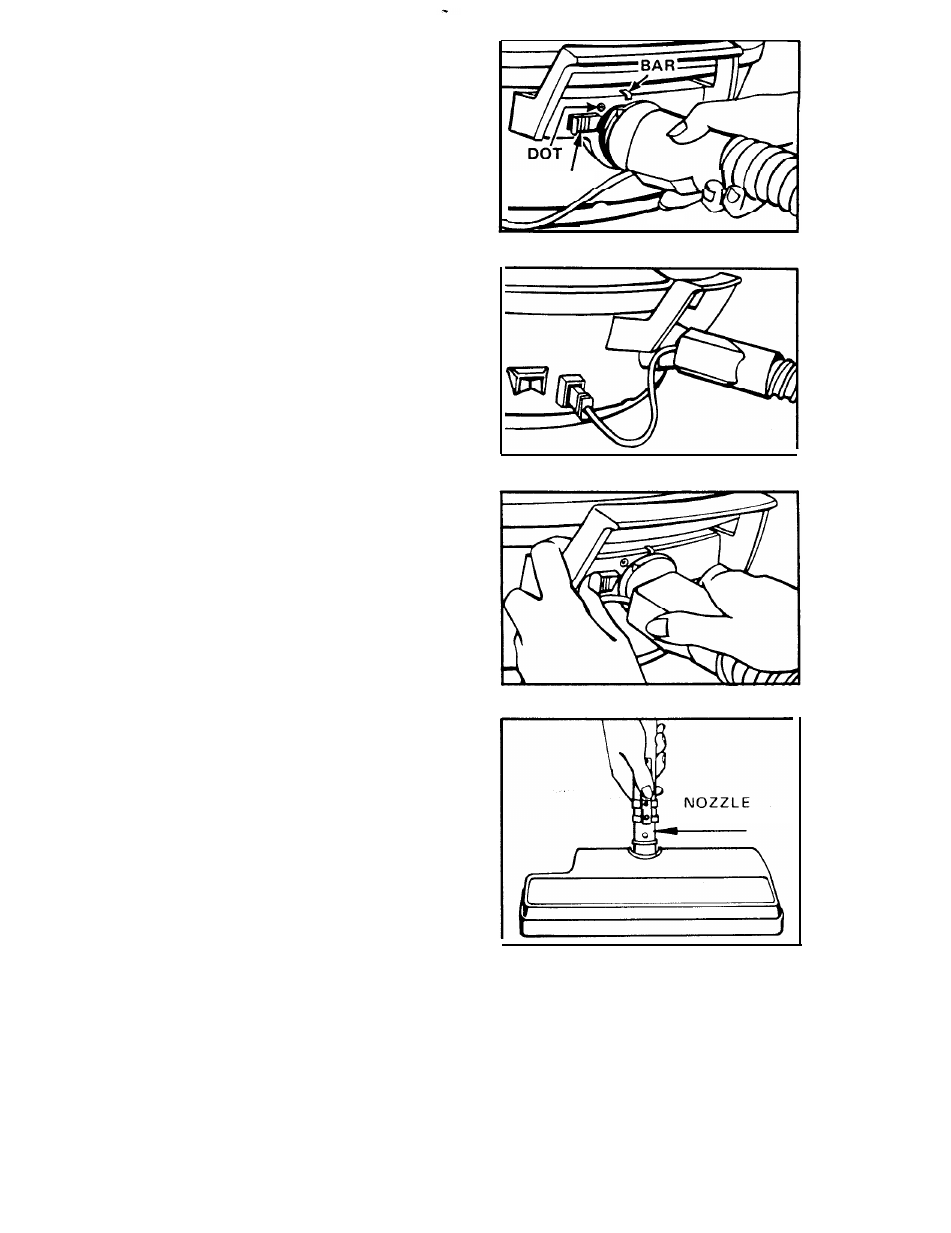

1. Connect hose

To connect hose, insert hose into
opening of cleaner lining up the ar-

row on the hose with the dot on

the cleaner. Turn the hose clock-
wise until it lines up with the bar

on the cleaner and latch locks into
place.

When the hose is attached proper-

ly, the hose cord plug will reach to

the receptacle on the cleaner.

Insert the plug firmly and as deep
into the receptacle as possible.

To disconnect hose, first remove

hose cord plug from receptacle.

Then, depress latch away from

hose connection opening in clean-

er. While holding latch, turn the

hose counterclockwise until the

arrow lines up with dot on the
cleaner.

2. Attach power nozzle

Attach power nozzle at the end of
the straight wand by fitting the
button projection on the nozzle
connector into the opening at the

end of the wand. Be sure the noz-
zle is locked in place.

To release, press down on the
center of the spring latch and

remove nozzle.

L A T C H

CONNECTOR
