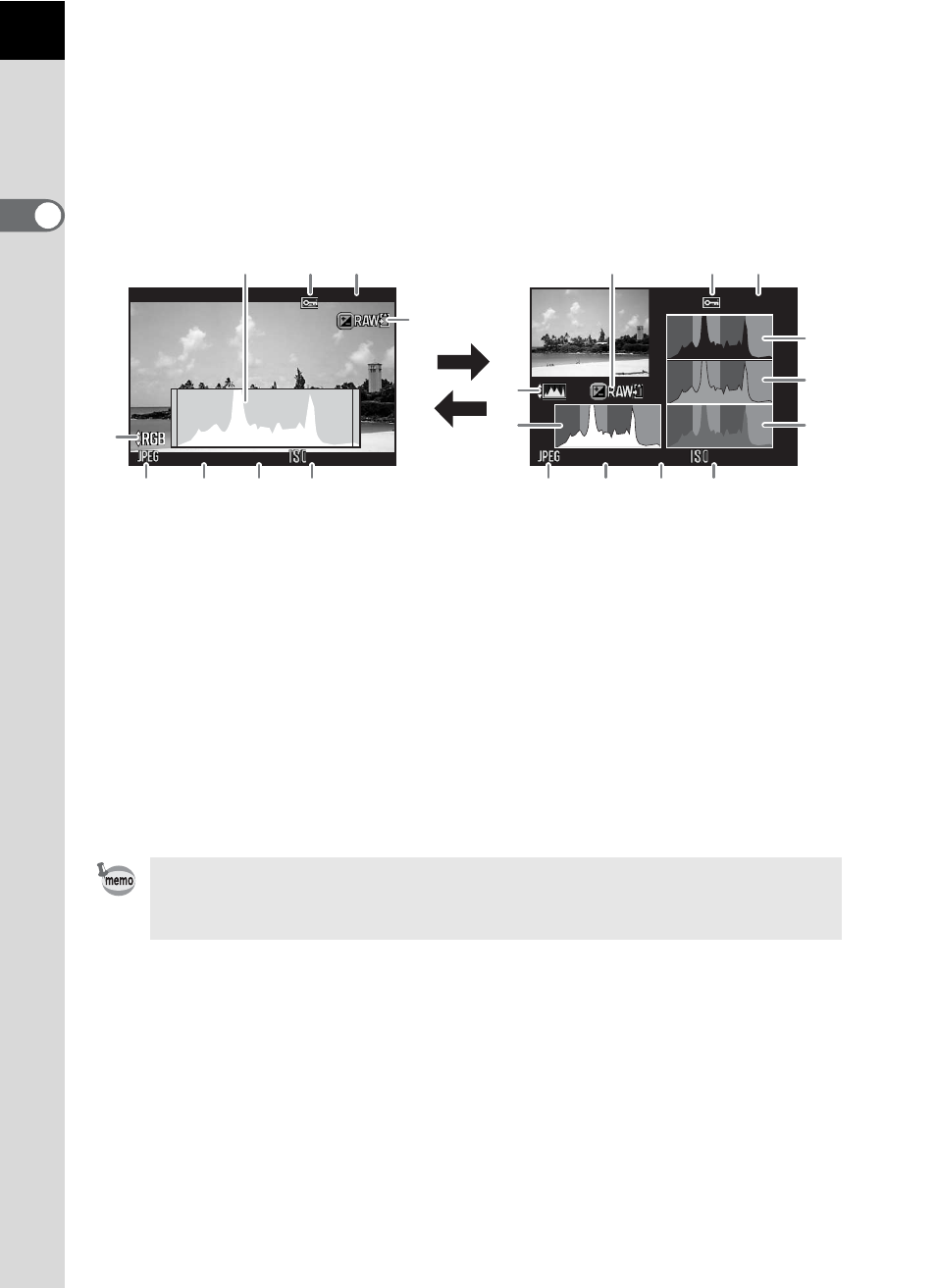

Histogram display
The following histograms can be displayed when playing back still
pictures. The “Brightness histogram” shows the distribution of brightness
and the “RGB histogram” shows the distribution of color intensity. Press
the four-way controller (23) to switch between “Brightness histogram”
and “RGB histogram”.
* Indicator 2 appears only for protected images.
* Indicator 4 appears only when the file format of the last captured image is
JPEG, and the image can also be saved in RAW format. (p.61)
1 Histogram (Brightness) 7 Shutter speed
2 Protect setting 8 Aperture value
3 Folder number-File number 9 Sensitivity
4 Save the RAW file data 10 Histogram (R)
5 Switch RGB histogram/
Brightness histogram 11 Histogram (G)
12 Histogram (B)
6 File Format
If [Bright/Dark Area] (p.154) of the [Q Playback 1] menu is set to O (On),
bright (overexposed) portions blink red and dark (underexposed) portions blink
yellow (except when in RGB histogram display or Detailed information display).
