Connect the tma – HP 4500c User Manual
Page 10
install the scanner
5
connect the TMA
If your scanner has a transparent materials adapter (TMA), it allows you to scan
35 mm slides or negatives.
1
Disconnect the power cable from the scanner.
2
On the back of the scanner, find the round TMA port:
– On the HP Scanjet 4500c and 5550c series scanners, the TMA port is
the second port from the left.
– On the HP Scanjet 4570c and 5500c series scanners, the TMA port is
the second port from the right.
3

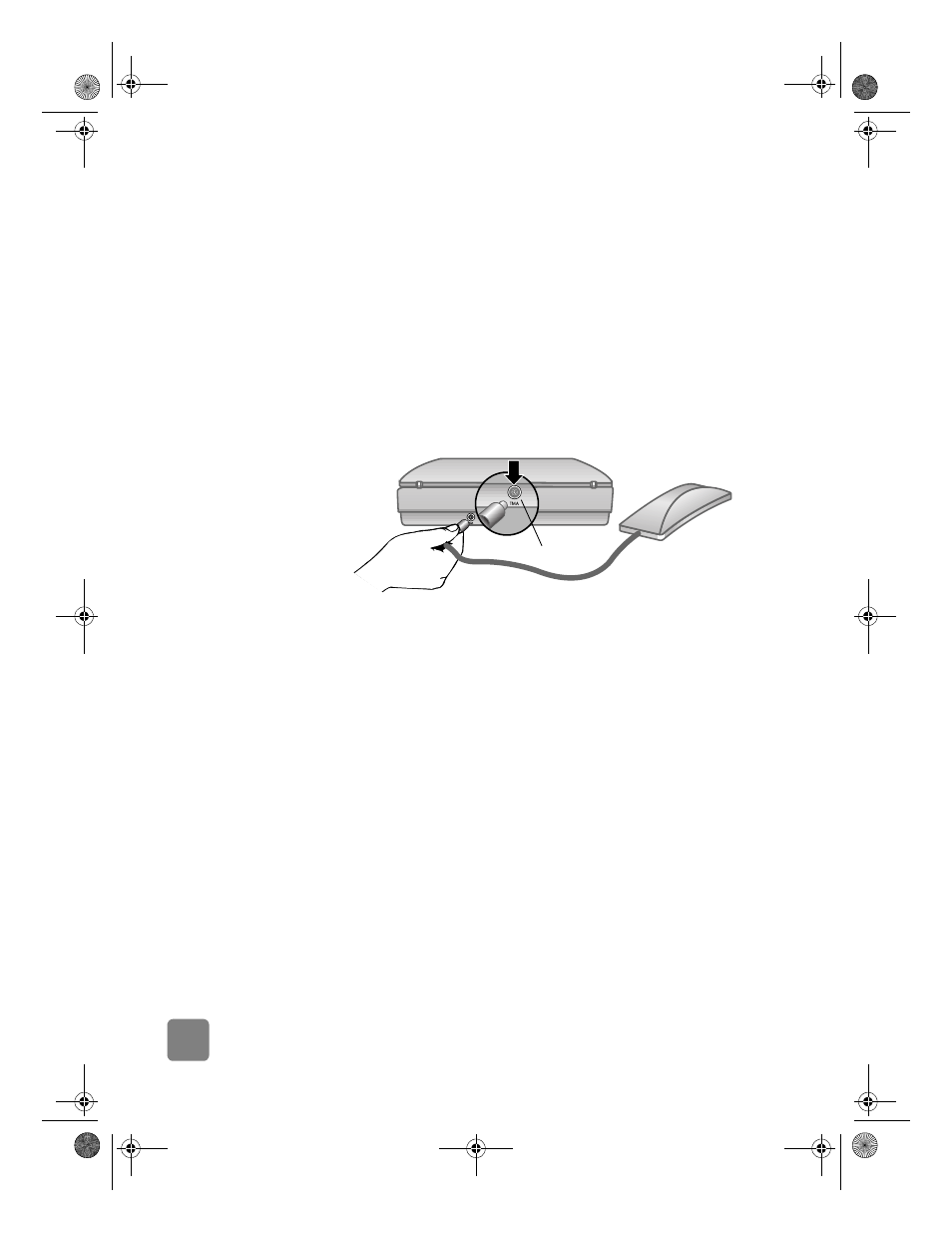

Holding the TMA cable by its free end, align the connector so the arrow is
on the top side.
4
Gently insert the connector into the TMA port.
5
Reconnect the power cable.
TMA port
