Component identification 7
Item Description Status
Off = No active remote management
3 Server B health LED Green = Normal
Flashing = Booting
Amber = Degraded condition
Red = Critical condition
4 Server B NIC link
and activity LED* Green = Network linked
Green flashing = Network activity
Off = No link or activity
5 Server A NIC link
and activity LED*
Green = Network linked
Green flashing = Network activity
Off = No link or activity
6 Server A health LED Green = Normal
Flashing = Booting
Amber = Degraded condition
Red = Critical condition
7 Server A UID LED Blue = Identified
Blue flashing = Active remote management
Off = No active remote management
8 Server A system
power LED
Green = On
Amber = Standby (auxiliary power
available)
Off = No power available to server
* Actual NIC numbers depend on several factors, including the operating system installed on the server blade.

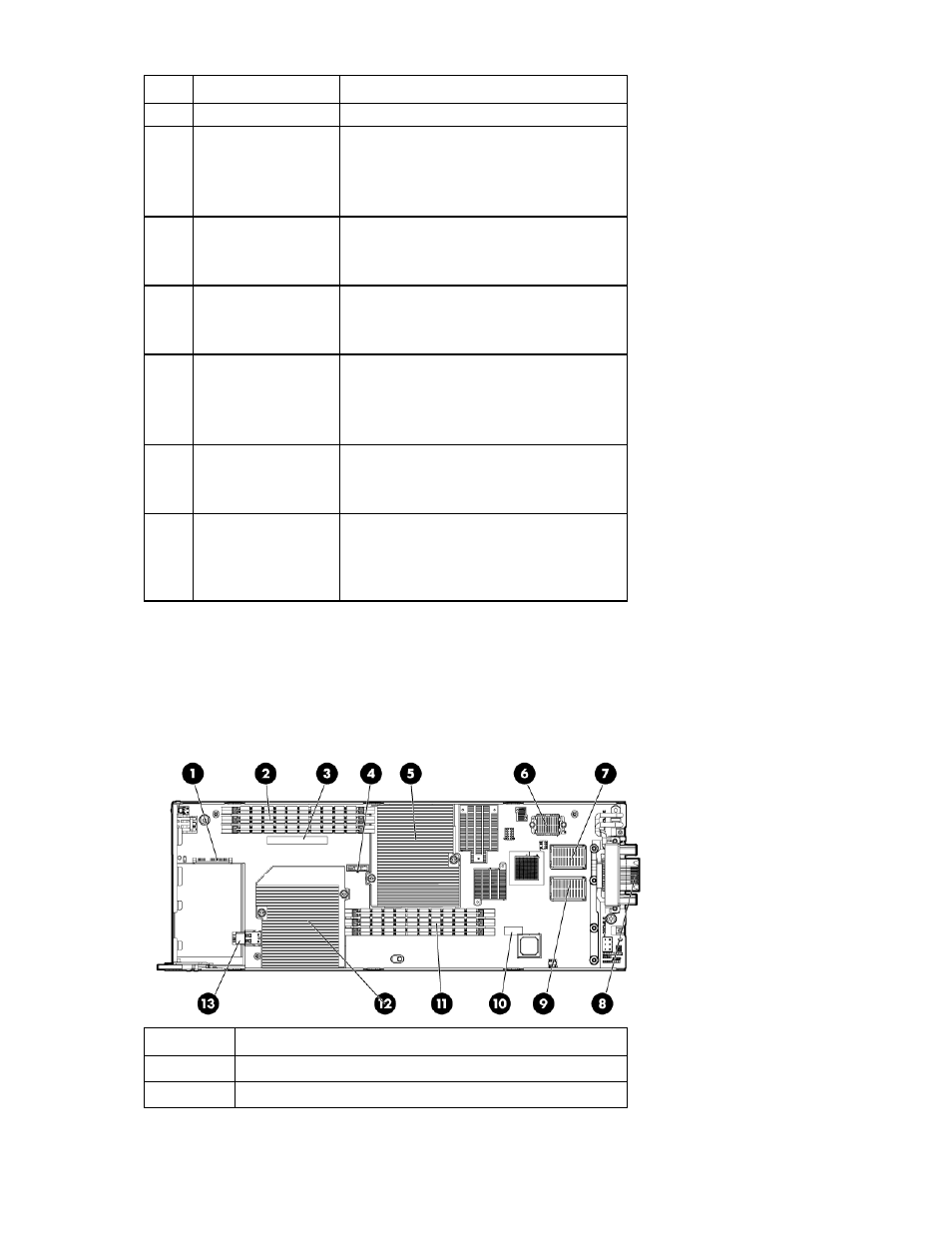

System board components
Server A system board components
Item Description
1 Hard drive connector
2 DIMM slots (processor 2)
