Component identification 6

Component identification

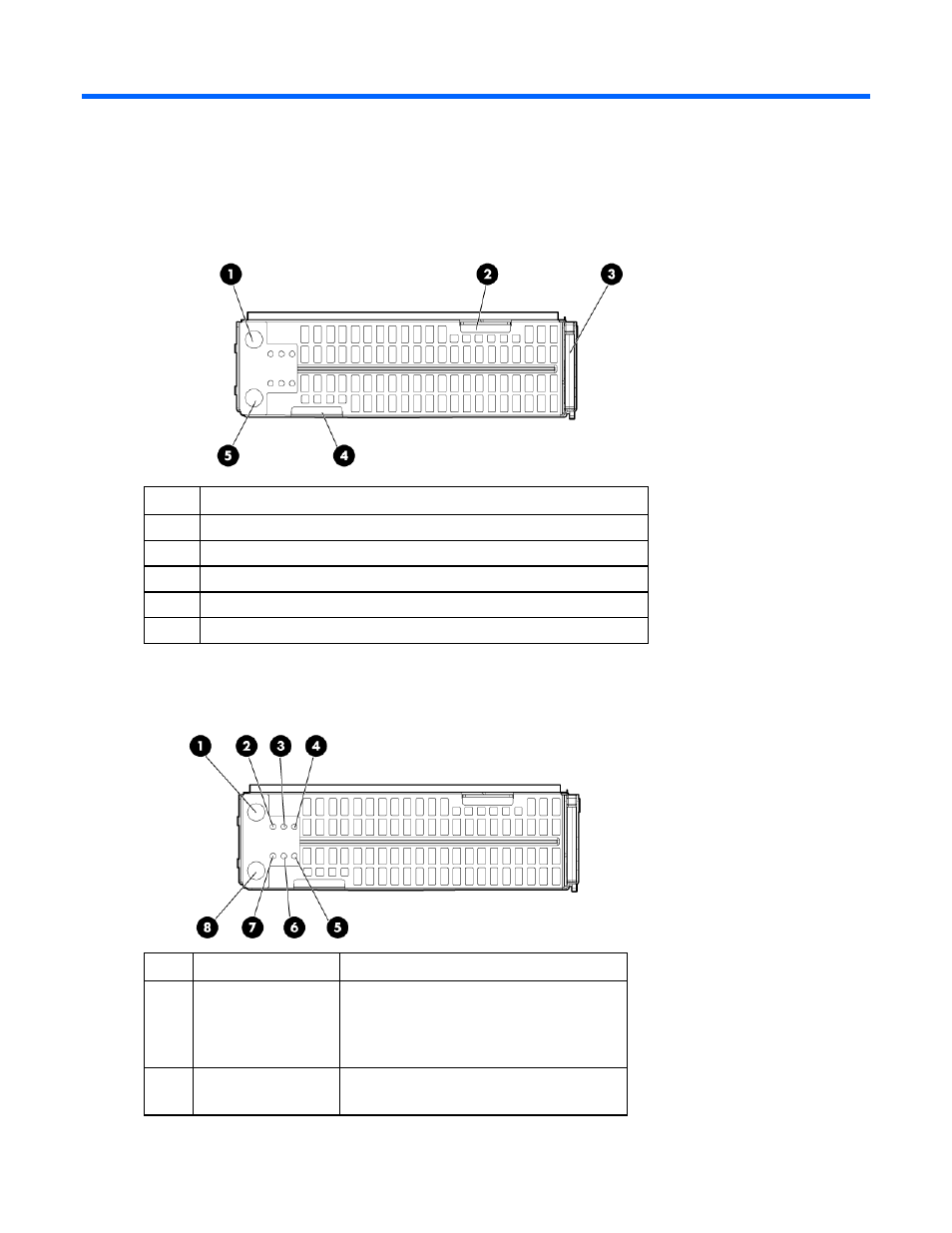

Front panel components

Item Description

1

Server B Power On/Standby button

2

Server B serial label pull tab

3

Server blade release lever

4

Server A serial label pull tab

5

Server A Power On/Standby button

Front panel LEDs

Item Description

Status

1

Server B system
power LED

Green = On
Amber = Standby (auxiliary power

available)
Off = No power available to server

2

Server B UID LED

Blue = Identified
Blue flashing = Active remote management
