8
nomenclature
KM K 1 a G
Voltage
a = 115/1/60
B = 08-0/1/60
Kompact Mullion
size
Bohn-Kote® coil
Vintage
Features
• Light grained aluminum cabinets
• PVC coated fan guard
• Stainless steel hardware
• Coils have full collar aluminum fins on expanded
copper tubes
• Bohn-Kote® coated coil for optimum protection in
corrosive environments
• Refrigerant connection knockouts provided on both
ends of unit
• Expansion valve mounts inside the unit
• Motors are thermally protected and
permanently lubricated
• Internal junction box for electrical connection
• Adjustable air deflector included provides different air
patterns. Air can be directed where its needed
• All models UL listed for the US and Canada
• UL classified to NSF standards
Sweat inlet connection to reduce leaks
(flare connection available as a ship loose option)
application
Model KMK is ideal for under-counter reach-in refrigerators.
The thin line design allows the unit to be mounted behind the
mullion with sufficient clearance for tray slides. A down flow fan
arrangement is used with air drawn in at the top and discharged
at the bottom. This design provides superior air circulation and
insures uniform temperature throughout the cabinet.
This versatile design is also adaptable for mounting on the back
wall or ends of a cooler. The method of air circulation insures
minimum box temperature rise when the cabinet doors are
open. Ideal for bottle goods and beverage coolers.
exclusive Bohn-Kote® Finish is standard
The finned coil is protected by Bohn-Kote® - a special dip
coating that is baked on. Bohn-Kote® prevents corrosion of the
coil caused by acids that are present in salad dressings, spiced
meats and other food products.
Model KMK
Kompact Mullion Reach-In Unit cooler
table 11. Performance and electrical Data

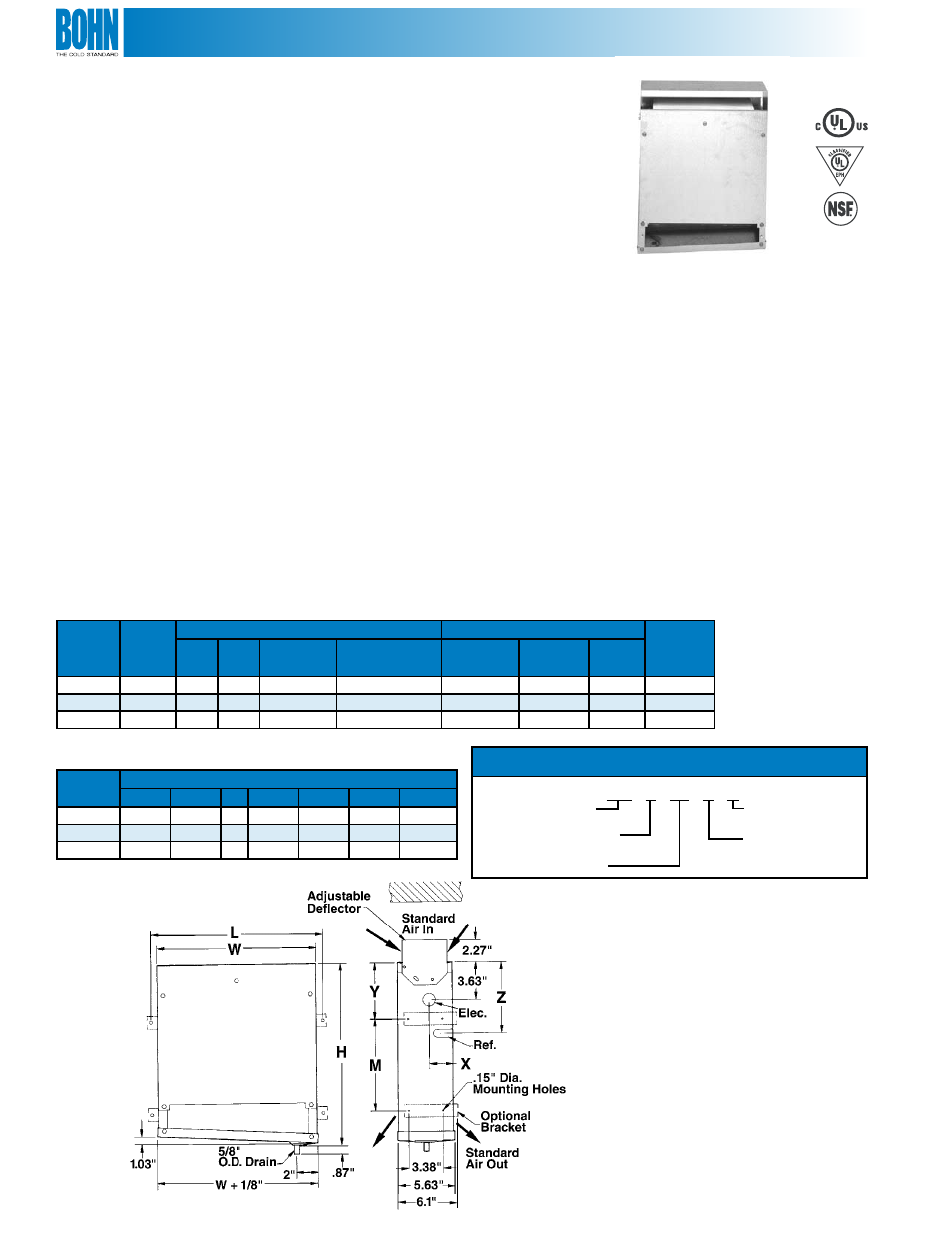

Diagram 6. Dimensions
table 1. Physical Data
Model
BtUh
10°F
tD
Motor Data connections (in.) approx.
ship Wt.
(lbs.)
cFM Qty. 115/1/60
total Fla
08-0/1/60
total Fla
coil Inlet
oD
suction
ID
Drain
oD
KMK13 1,300 180 2 1.6 0.8 3/8 3/8 5/8 19
KMK17 1,700 170 2 1.6 0.8 3/8 3/8 5/8 20
KMK23 2,300 255 3 2.4 1.2 3/8 1/2 5/8 28
Model
Dimensions (in.)
h l M W X Y Z
KMK13 17-3/4 16-7/8 9 15-5/8 2-3/4 5-1/2 6-15/16
KMK17 19-3/4 16-7/8 10 15-5/8 2-3/4 6-1/2 7-15/16
KMK23 19-3/4 23-1/4 10 22 2-5/16 6-1/2 7-15/16
