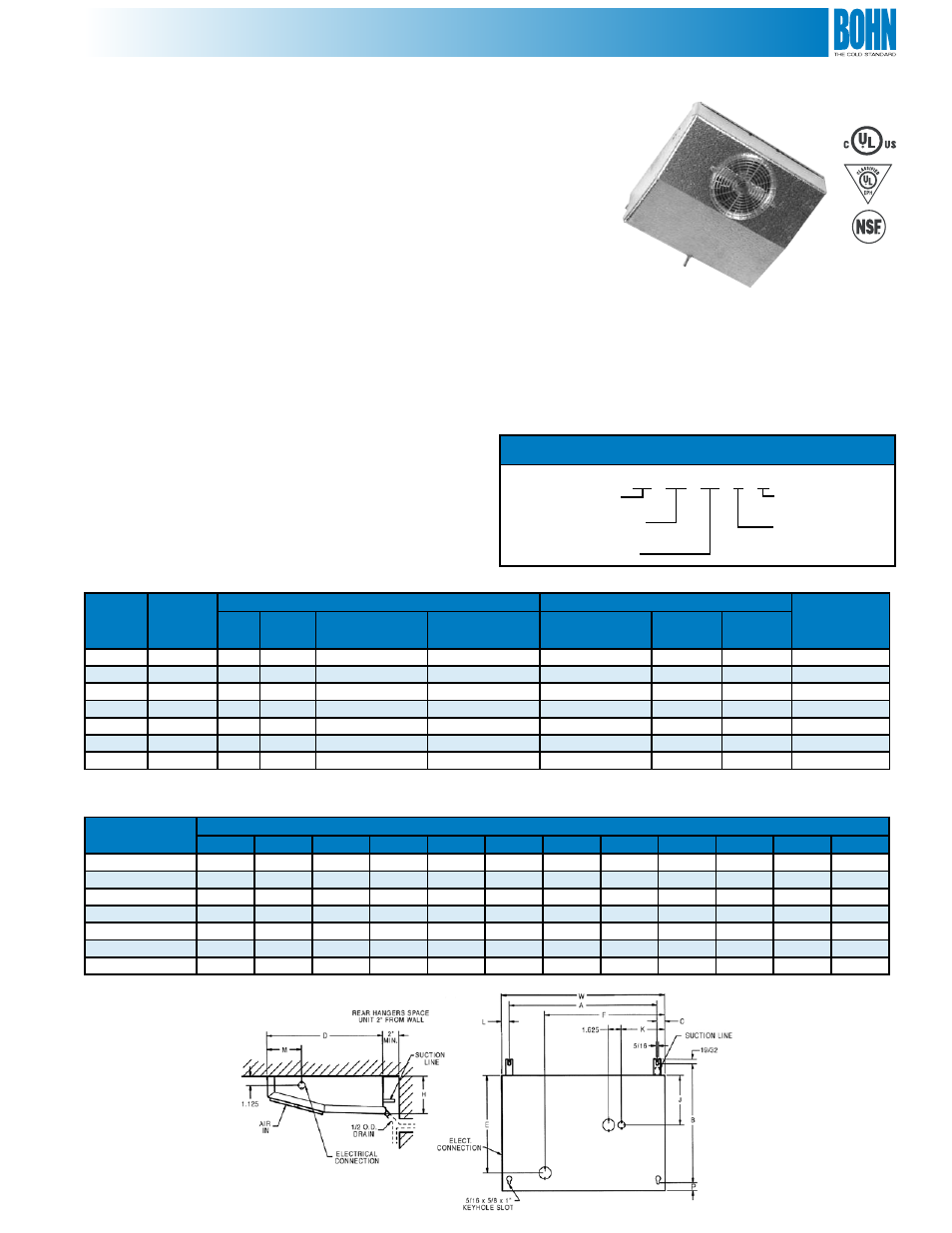

Page 3: Thin profile air defrost reach-in unit cooler, Model ta
nomenclature
ta (K) 17 B G
Voltage
a = 115/1/60
B = 08-0/1/60
thin Profile air Defrost
size
Bohn-Kote® coil
(optional)
Vintage
Features
• Textured aluminum cabinet
• Molded Lexan® guards and fans
• Drain fitting mounted at 45-degree angle so drain
can be run through back or bottom of refrigerator
• Room for expansion valve inside the unit
• Stainless steel screws
• Motors are thermally protected and
permanently lubricated
• Convenient, moistureproof motor plug
• Compact design! Does a big job in a small space
• Optional Bohn-Kote® coated coil available (Model TAK)
for optimum protection in corrosive environments
• Internal junction box for electrical connection
• All models are UL listed for the US and Canada
• UL classified to NSF standards
Sweat inlet connection to reduce leaks
(flare connection available as a ship loose option)
application
Model ta
is a thin profile unit which mounts in the top of
a refrigerator and makes the entire top shelf area usable. The
attractive low silhouette makes the unit particularly desirable
for display type refrigerators. It can also be used in back bars,
under counter cabinets, or wherever space is at a premium.
For 35° to 45°F fixtures at 10° to 15° TD applications with 16
hours maximum compressor run time per day.
Model ta
thin Profile air Defrost Reach-In Unit cooler
†
Models 43 and 55 use external equalized expansion valve
table 1. Performance and electrical Data
Diagram 1. Dimensions
table . Physical Data
Model
BtUh
10°F tD
Motor Data
connections (in.)
approx.
ship Wt.
(lbs.)
cFM
Qty.
115/1/60
total Fla
08-0/1/60
total Fla
coil Inlet
oD
suction
ID
Drain
oD
TA10
1,000
120
1
0.8
0.4
3/8
3/8
1/2
14
TA13
1,300
170
2
1.6
0.8
3/8
3/8
1/2
17
TA17
1,700
210
2
1.6
0.8
3/8
3/8
1/2
21
TA23
2,300
330
3
2.4
1.2
3/8
3/8
1/2
28
TA30
3,000
360
3
2.4
1.2
3/8
1/2
1/2
33
TA43
†
4,300
540
4
3.2
1.6
1/2
5/8
1/2
44
TA55
†
5,500
650
5
4.0
2.0
1/2
5/8
1/2
53
Model
Dimensions (in.)
a
B
c
D
e
F
h
J
K
l
M
W
TA10
14-5/8
14
15/16
13-1/2
10-1/2
11-3/8
4-1/2
8-7/8
2-1/2
15/16
4-3/8
16-1/2
TA13
18-5/8
14
15/16
13-1/2
10-1/8
10-1/4
4-1/2
8-3/8
9-1/2
15/16
4-3/8
20-1/2
TA17
22-1/8
15
15/16
14-1/2
11-1/8
12
4-1/2
9-3/8
11-1/4
15/16
4-3/8
24
TA23
29-3/4
15
15/16
14-1/2
13
20-7/8
4-1/2
10-3/4
10-1/4
15/16
4-3/8
31-5/8
TA30
38-1/8
15
15/16
14-1/2
13
29-3/4
4-1/2
10-3/4
9-3/4
15/16
4-3/8
40
TA43
51-1/2
15
15/16
14-1/2
13
48-3/4
4-1/2
10-3/4
13-1/4
15/16
4-3/8
53-3/8
TA55
51-1/2
15
15/16
14-1/2
13
49
6-3/4
10-3/4
11
15/16
4-3/8
53-3/8
