nomenclature
U K 09 0
Voltage
0 = 115/1/60
1 = 08-0/1/60
Dual aire standard coil
size
Bohn-Kote® coil
(optional)
Features
• Textured aluminum cabinet
• Full collar aluminum fins on expanded copper tubes
• Detachable drain pan that is easy to clean
• Molded 3-prong motor connector to save installation
time and expense
• Motors are thermally protected and
permanently lubricated
• Optional Bohn-Kote® coated coil available (Model UK)
for optimum protection in corrosive environments
• All models are UL listed for the US and Canada
• UL classified to NSF standards
Sweat inlet connection to reduce leaks
(flare connection available as a ship loose option)
application
Model U
is used wherever a small, compact unit is required.
It can be mounted on the ceiling or wall. The model U unit
draws air through the front and discharges it out both sides
to insure proper distribution of cool air and thus maintain a
uniform box temperature.
Model U
Reach-In Unit cooler
table 17. Performance and electrical Data

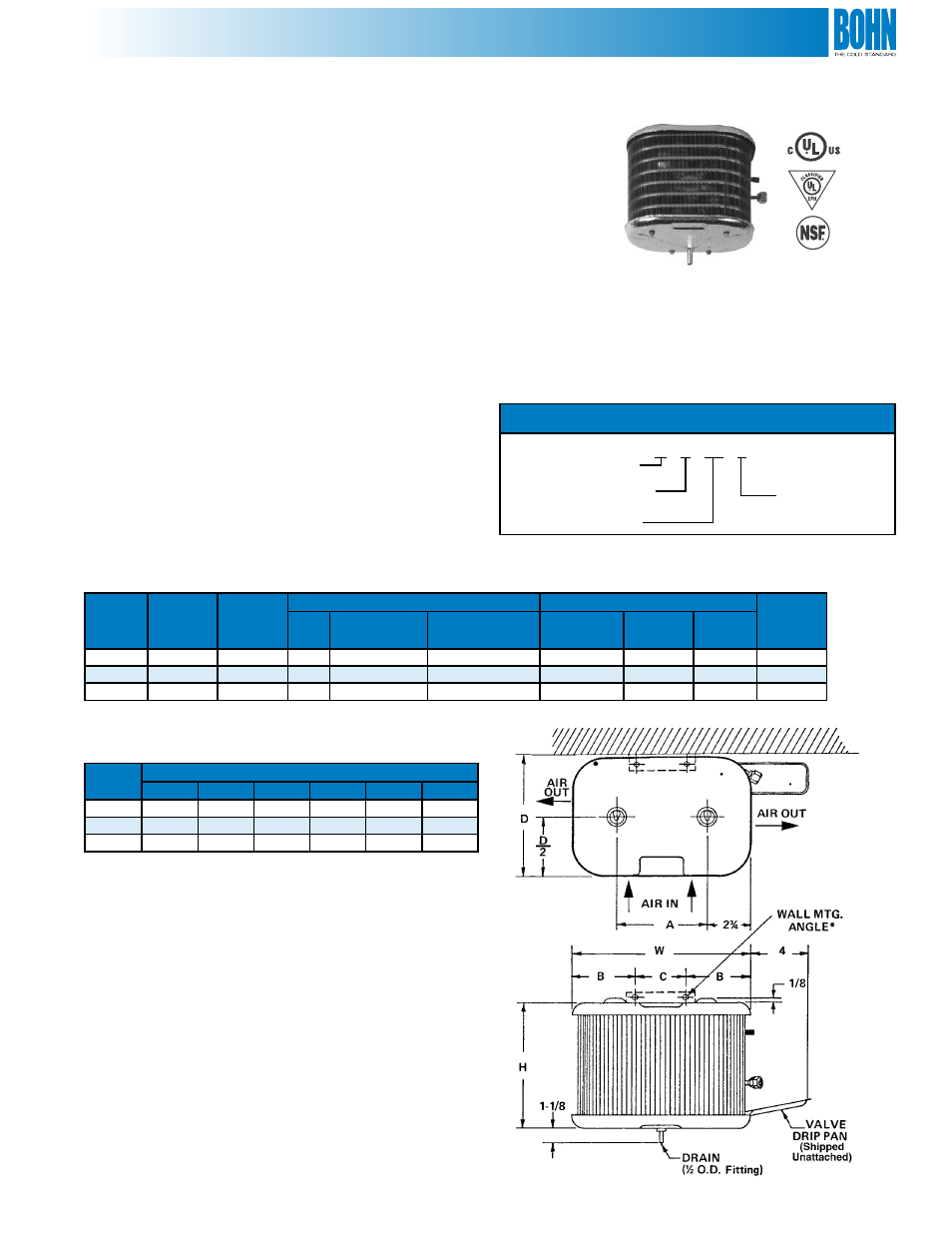

Diagram 9. Dimensions
table 18. Physical Data
Model
BtUh
10°F tD
BtUh
15°F tD
Motor Data
connections (in.)
approx.
ship Wt.
(lbs.)
cFM
115/1/60
total Fla
08-0/1/60
total Fla
coil Inlet
Fn
suction
ID
Drain
oD
U09
850
1,275
190
0.45
0.55
1/2
3/8
1/2
9
U12
1,150
1,725
250
0.45
0.55
1/2
3/8
1/2
10
U15
1,500
2,250
310
1.10
0.55
1/2
3/8
1/2
14
Model
Dimensions (in.)
h
W
D
a
B
c
U09
8-1/2
11-1/2
8-7/8
6
4
3-1/2
U12
8-1/2
17-1/2
8-7/8
12
4
9-1/2
U15
9-1/2
17-1/2
10-7/8
12
4
9-1/2
