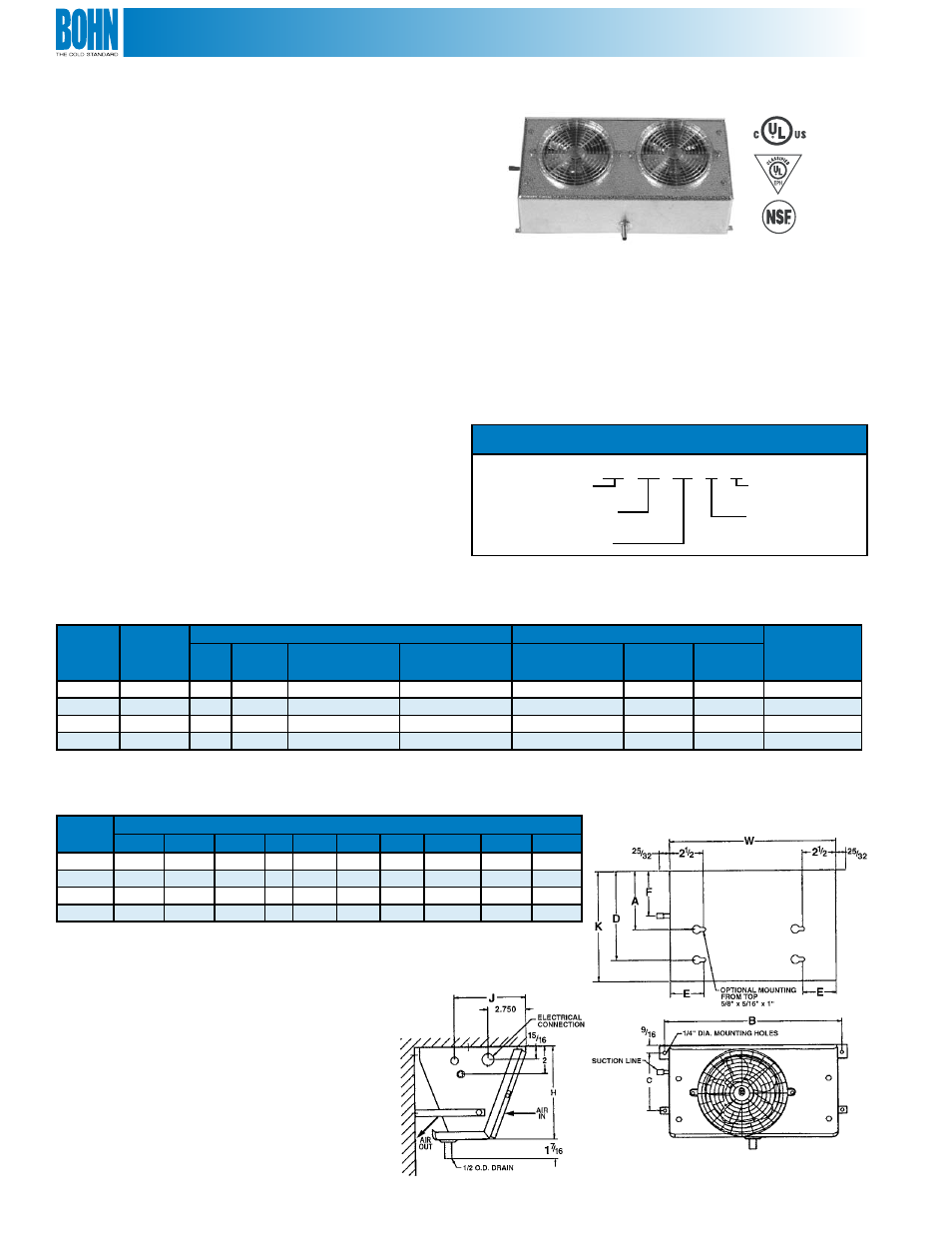

Page 6: Application, Vee-aire reach-in unit cooler
6
nomenclature
Va (K) 08 a G
Voltage
a = 115/1/60
B = 08-0/1/60
V Profile Unit cooler
size
Bohn-Kote® coil
(optional)
Vintage
Features
• Textured aluminum cabinet
• Molded Lexan® fan guard
• Improved drain pan overlaps coil surface to catch
all condensate
• Stainless steel screws - prevent rust streaks
• Plate-type aluminum fins with full collars on
expanded copper tubes
• Expansion valve mounts inside cabinet
• Internal junction box for electrical connection
• Pigtail leads in junction box
• Motors are thermally protected and
permanently lubricated
• Top quality throughout in a compact size
• All models UL listed for US and Canada
• UL classified to NSF standards
• Optional Bohn-Kote® coated coil available (Model VAK)
for optimum protection in corrosive environments
Sweat inlet connection to reduce leaks
(flare connection available as a ship loose option)
application
Model Va
is a deluxe unit designed for use in small reach-
ins, back bar and under counter refrigerators, and many other
applications where a small, compact unit is required. The thermal
expansion valve mounts inside the unit. The unit can be mounted
from the ceiling or off the back wall or end walls.
Model Va
Vee-aire Reach-In Unit cooler
table 7. Performance and electrical Data
Diagram . Dimensions
table 8. Physical Data
Model
BtUh
10°F tD
Motor Data
connections (in.)
approx.
ship Wt.
(lbs.)
cFM
Qty.
115/1/60
total Fla
08-0/1/60
total Fla
coil Inlet
oD
suction
ID
Drain
oD
VA06
600
135
1
0.8
0.4
3/8
3/8
1/2
9
VA08
800
130
1
0.8
0.4
3/8
3/8
1/2
9
VA12
1,200
265
2
1.6
0.8
3/8
3/8
1/2
14
VA17
1,700
245
1
1.0
0.5
3/8
3/8
1/2
11
Model
Dimensions (in.)
a
B
c
D
e
F
h
J
K
W
VA06
4-5/16 13-1/4 4-5/16
-
-
3-3/8 6-7/8
5-1/4
8-1/8 12-1/2
VA08
4-5/16 13-1/4 4-5/16
-
-
3-3/8 6-7/8
5-1/4
8-1/8 12-1/4
VA12
4-1/2 18-3/4 5-5/16
-
-
3-3/8
8
4-7/8
8-1/8
18
VA17
5-1/4 14-3/4 5-1/4
9
2-1/2
4
9-3/4 6-13/16 10-1/2
14
