4 • Receiver Installation
6. Use the 2 large (orange) wire connectors supplied to connect
the receiver and house wiring, then use the 3 small (blue) wire
connectors supplied to connect the receiver and ceiling fan
wiring. Refer to the Wiring Diagram in Figure 9.
7. Be sure the antenna is positioned securely, so it can not
interfere with the ceiling fan motor. Refer to Figure 9. Do not
modify or damage the antenna wire, as control performance
may be reduced. After securing the receiver, antenna,
and wiring, finish hanging the ceiling fan according to its
instructions.
8. Restore power at main electrical panel.
Red
Antenna
AC
Power
In
White Black
Common Fan Light
Black/Hot (marked “LIVE
IN on red label)
White/Neutral (marked
“COMMON IN” on red
label

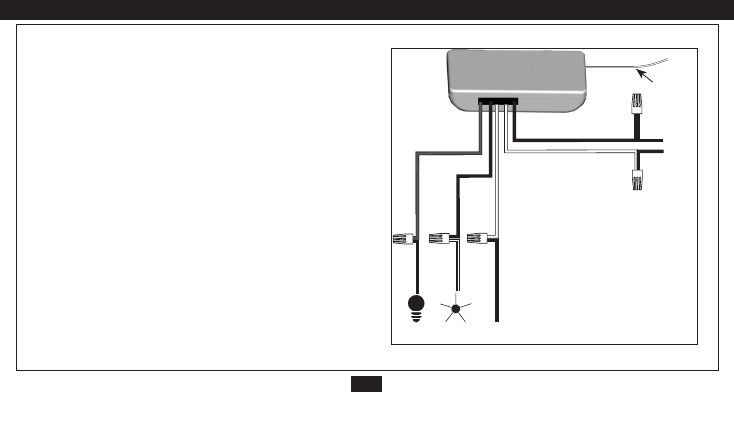

Figure 9
