6

41797-01 • 07/06/10 • Hunter Fan Company

Hands

Free

Bracket

Hanger

NOTE: Some fans may have considerable excess lead wire.

For easier canopy installation, cut the excess wire leaving

a minimum of 6 inches remaining. Restrip the fan lead

wires 1/2 inch. Place remaining excess wire into the ceiling

electrical box as needed.

Hunter Hands-Free™ Canopy: Connect wiring

as shown in Figure 7. Place receiver inside mounting

bracket. Extend antenna above the ceiling mounting bracket

(approximately 3–6˝).

Bracket Hanger: Starting with the antenna wire, slide

receiver inside mounting bracket. If a ground wire mounting

screw prevents the receiver from sliding into the bracket,

move ground wire and screw to an unused hole at the top

of the bracket or secure with a canopy mounting screw. The

bracket must remain properly grounded. Connect wiring

as shown in Figure 8. Extend antenna above the receiver

(approximately 5–8˝).

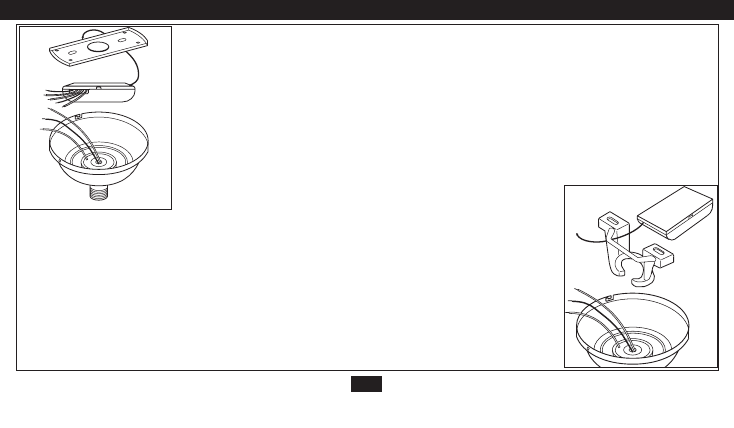

Figure 7

Figure 8
