Install the Back Log and Back Brick Panel
These.two.components.are.installed.as.a.single.piece..
Rest.the.back.brick.panel.on.the.shelf.located.on.the.back.
side.of.the.back.log,.and.center.it..Holding.the.two.pieces.
as.a.single.unit,.tilt.the.top.forward.slightly.and.manuever.
it.over.the.top.of.the.rear.burner—taking.care.that.the.top.
corners.clear.the.front.opening..Place.it.snugly.against.the.
back.wall.and.center.it.
Install the Side Brick Panels
These.slide.into.place.along.each.side.and.are.held.by.
friction..The.notch.in.each.panel.faces.the.back..Install.one.
side,.and.then.the.other.
Install the Ember Strips
The ember strips rest against the front of the firebox and
should fit snugly. Guide them toward you and to the outside
until they fit snugly. Check the air slot in the inside of the
ember strips to confirm that they do not obstruct it.
Install the Center Log
The.center.log.goes.all.the.way.to.the.back.and.should.
be.centered..When.properly.positioned,.there.should.be.an.
even.gap.along.the.front.of.the.center.burner.in.the.cavity.
in.the.log..A.small.portion.of.the.log.support.frame.will.be.
revealed.
The.center.log.has.a.round.viewing.port.in.the.left.end.
through.which.the.pilot.can.be.observed.
Install the Branch
Orient.the.branch.with.the.forked.end.toward.the.left.rear.
of.the.stove.and.slip.it.over.the.two.locator.pins,.one.on.top.
of.the.back.log.and.the.other.on.the.top.of.the.center.log.
Secure the Glass Front
NOTE:.The.glass.front.is.heavy..Lift.it.carefully.to.pre-
vent.damage..Center.the.glass.on.the.opening.and.suspend.
it.in.place.by.placing.the..the.tab.hooks.over.the.top.edge.
of.the.opening..Loosen.the.wing.nuts.that.hold.the.spring-
loaded.levers.in.place..Press.the.glass.slightly.against.the.
stove to confirm that it seats properly, then press it firmly
against.the.front.while.pulling.the.levers.forward.to.engage.
them..Tighten.the.wing.nuts..

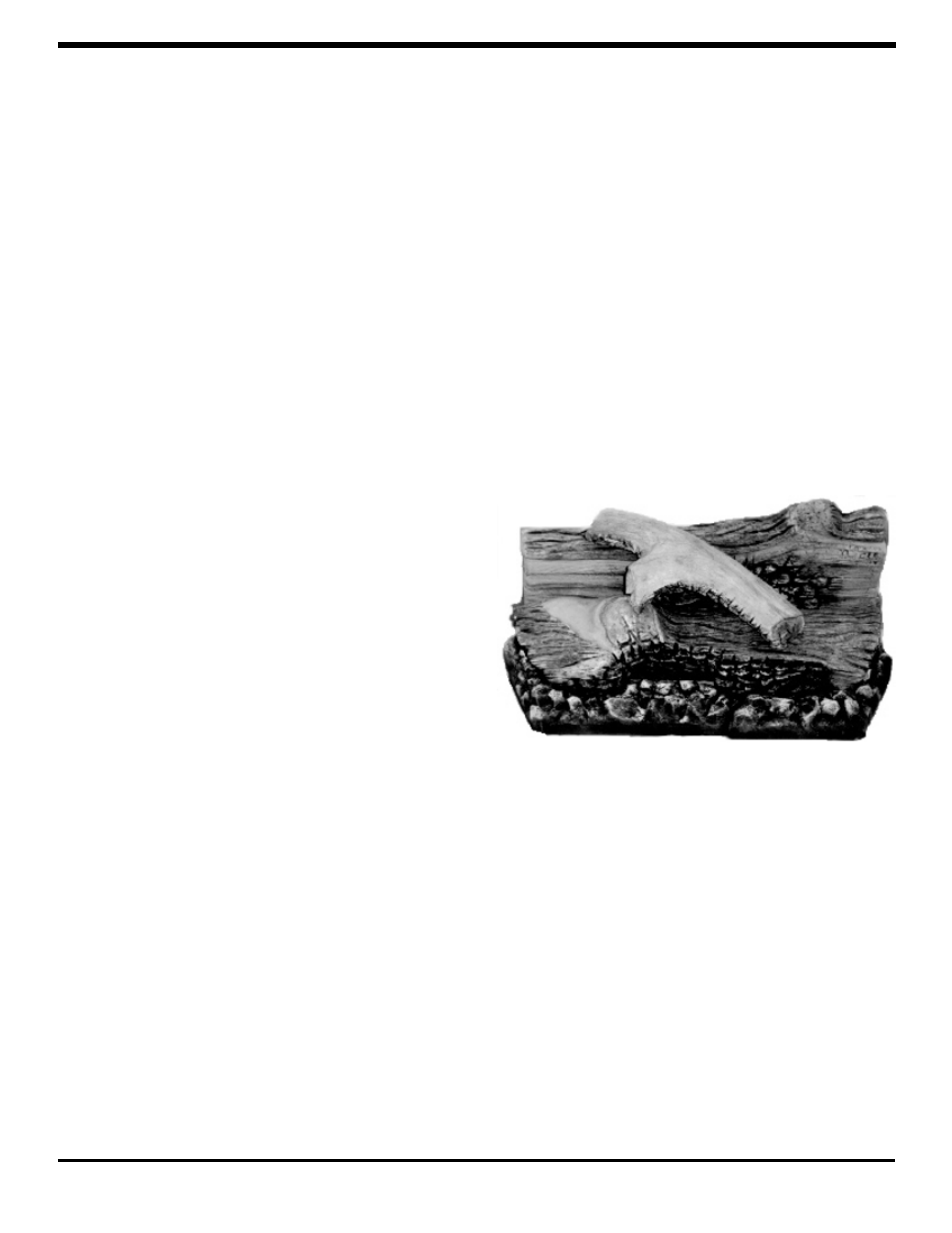

The.complete.log.set,.with.the.logs.installed.and.positioned.correctly.
