❒ If you need to change the sensitivity,
temporarily remove the fixture and make
the adjustment. Too much sensitivity may
increase false triggering.
❒ Set the amount of TIME you want the light
to stay on after motion is detected. (1, 5,
or 10 minutes).
❒ Set the amount of time after dusk you want
the lights on accent level.
SPECIFICATIONS
Range ................... Up to 30 ft. (9.1 m) [var-
ies with surrounding
temperature].
Sensing Angle ...... Up to 150°
Electrical Load ...... Up to 100 Watt Maximum
Tungsten Incandescent.
Sensor Capacity ... Up to 360 Watt (3.0 A.)
Maximum Tungsten In-
candescent.
Power
Requirements ....... 120 VAC, 60 Hz
Operating Modes .. TEST, AUTO, and MAN-
UAL MODE
Time Delay ........... 1, 5, 10 minutes
D
ual
B
rite
® Timer .. 3, 6 hrs, Dusk-to-Dawn
❒ Walk through the coverage area noting
where you are when the lights turn on.
Move the sensor head left or right to
change the coverage area.

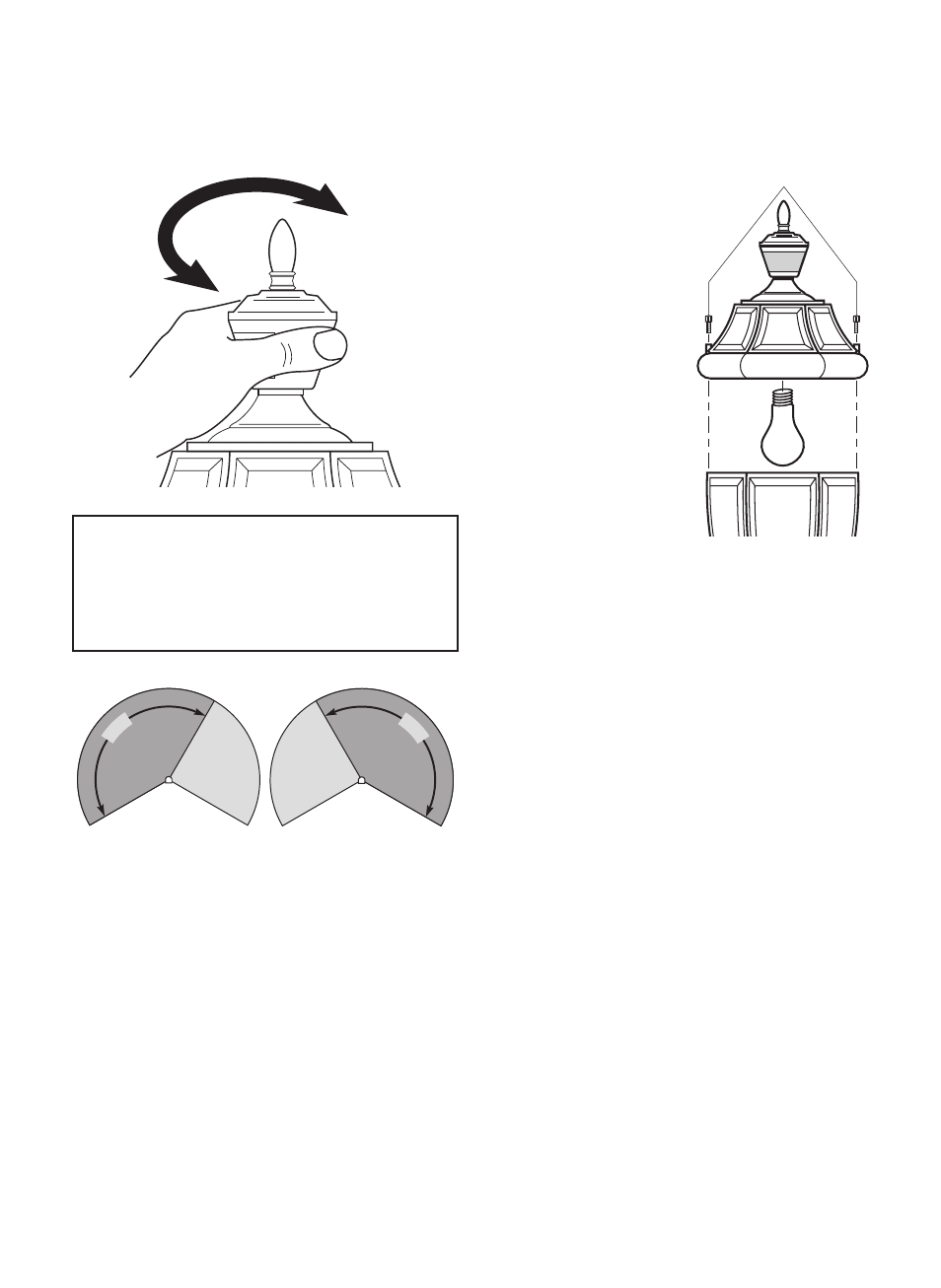

Rotating Sensor Head to Change
Coverage Area
IMPORTANT: Grasp the sensor only as
shown and turn the entire sensor. Any
other method may damage the sensor.
Do not force the sensor past the stop-
ping points.
15
0°
150
°
BULB REPLACEMENT
If lantern has an open bottom, insert bulb
through opening and screw into socket.
If lantern has a closed
bottom, follow the steps
below to replace bulb.
1.
Model 4294 Only -
Remove the lower
arm by removing
the two decorative
screws attaching
the lower arm to
the canopy and
lower glass as-
sembly.
2. Place one hand
under lower glass
assembly and un-
screw decorative
screws
holding
lower glass as-
sembly to top of fixture.
3. Replace bulb.
4. Reattach lower glass assembly to fix-
ture top using decorative screws.
Decorative Screws
Lower Glass
Assembly
Light
Bulb
