INSTALLATION
Estimated Installation Time: 30 minutes
Items needed for installation (not included):
• Phillips and flathead screwdrivers
• Pliers
• Wire strippers/cutters
• Safety glasses • Light bulb
• Silicone caulk
For best performance, mount the fixture about
6 feet (1.8 m) above the ground.

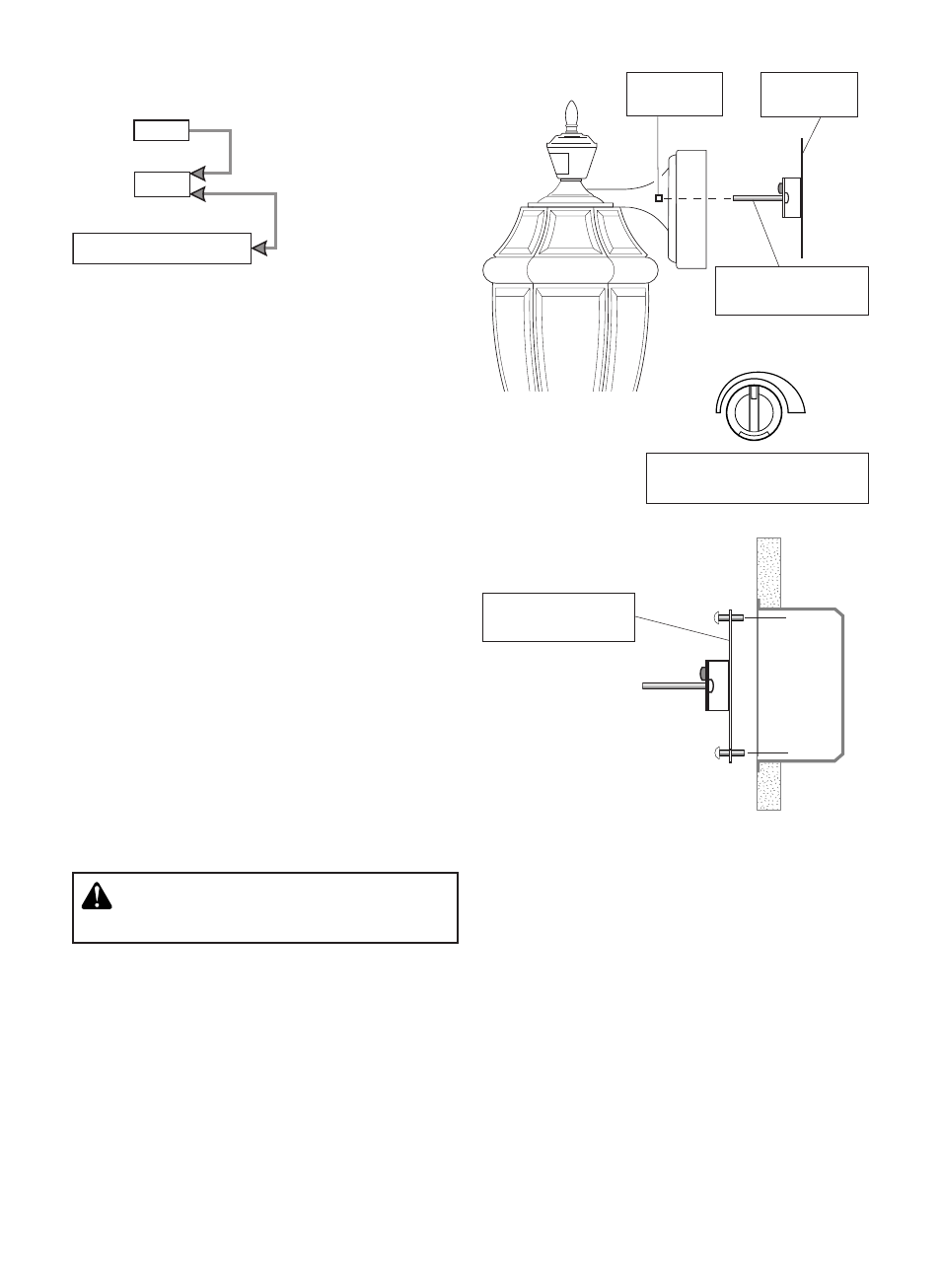

1. Remove
two nuts.
2. Remove
X-Bar.
Junction
Box
5. Attach X-Bar to
junction box
Due to the size and weight of the fixture, you
may find it helpful to have an assistant hold the
fixture in place while connecting the wires.
MAX MIN
3. Tighten screws
finger tight.
SENSITIVITY
4. Set sensitivity on fixture
back to the mid-position.
WARNING: Turn power off at circuit
breaker or fuse.
Mode Switching Summary
D
ual
B
rite
® Dimmer Control
Light comes on half bright for selected time af-
ter dusk (Off, 3 hr., 6 hr., until dawn). Selecting
OFF disables this feature. The motion sensing
features will continue to work as described
in this manual. If motion is sensed, the light
turns on full bright for the ON-TIME (1, 5, or
20 minutes) then returns to dim mode.
ON-TIME Switch at 1,
5, or 10 minutes
Flip light switch
off for one second
then back on*
* If you get confused while switching modes,
turn the power off for one minute, then back
on. After the calibration time the control will
be in the AUTO mode.
MANUAL MODE
AUTO
TEST
