4 598-1184-04
testing
1. turn on the circuit breaker and light switch.
Note: Sensor has a 1 1 /
2
minute warm up period
before it will detect motion. When first turned on
wait 1
1 /
2
minutes.
2. Set the SENSITIVITY switch to the “M” position
and the ON-TIME switch to the TEST posi-
tion.
3. Walk through the coverage area noting where
you are when the lights turn on. In TEST mode,
light will stay on for only 5 seconds then turn
off.
4. Adjust the SENSITIVITY to increase or decrease
the range as needed. Too much sensitivity may
cause false triggering due to heat sources in the
coverage area (see Adjustment of Coverage
Area or Troubleshooting section).
5. Set the amount of TIME you want the light to
stay on after motion is detected (1, 5, or 10
minutes).
It is also possible to wire two motion sensing lights
so that either unit will turn on both lights at the same
time (dual controlled system). It is recommended that
only people with electrical wiring experience attempt
this configuration. Please call our customer service
number (1-800-858-8501) before attempting this
wiring.
if the dual controlled wiring is not done
correctly, it can destroy both motion sensing
fixtures and void your warranty.
instaLL Fixture Base tO
JunctiOn BOx
1. Push wires into the junction box.
2. Slide light fixture base onto fixture screws and
tighten decorative nuts snugly against the base.
3. Install four candelabra base light bulbs (25
watts maximum each).
4. Refer to TESTING section before installing
cover.
5. After switches are set and testing is complete,
use the 2 decorative nuts to install the cover.
LO - M - H I
SE NS ITIVITY
ON- TIME TE ST 1 5 10
MIN
SENSITIVITY
LO - M - HI
TEST 1 5 10 MIN
ON-TIME
Sensor
Lens

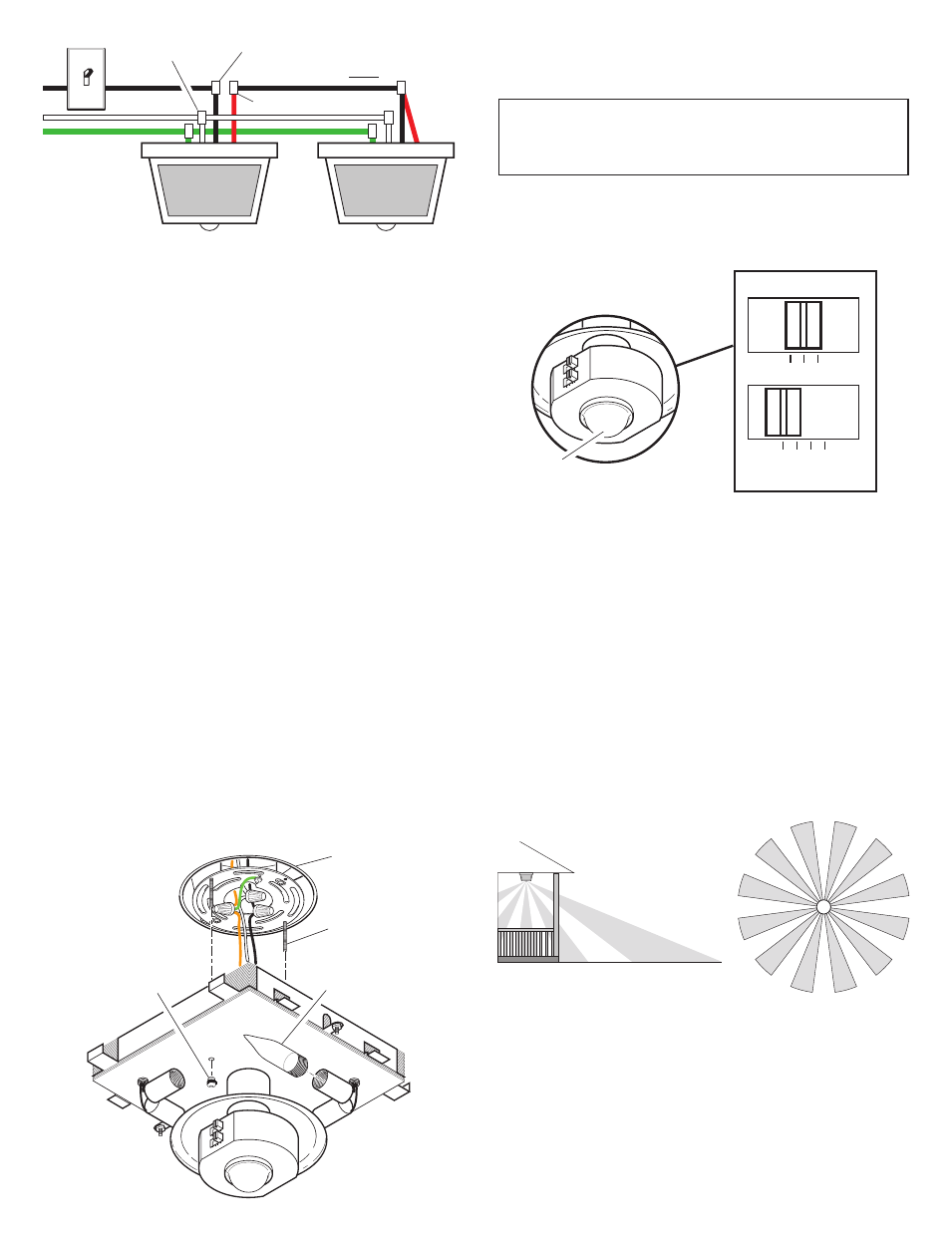

Wiring Motion Sensing Light to Control Another
Motion Sensing Light
Black to
Black white to white
ground to
ground
Black to red
and Black
red to Black
Controlled Motion
Sensing Light
Motion Sensing
Light
LO - M - H I
SE NS ITIVITY
ON- TIME TE ST 1 5 10 MIN
Fixture Screw
Junction Box
Decorative Nut
25 Watt Candelabra
Base Bulb
Maximum Range Coverage Angle*
(
Top View
)
360°
30 Feet (9.1 m)
in all Directions
* Without lens shield installed.
8 ft. (2.4 m)
