Horizon Fitness R3 - Manual (Page 6)

BEFORE
YOU
BEGIN
10
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
ASSEMBL
Y
BEFORE
YOU
BEGIN
BIKE
OPERA
TION
LIMITED
W
ARRANTY
TROUBLESHOOTING
&
MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE YOU
BEGIN
ASSEMBL
Y
11
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
BIKE
OPERA
TION
CONDITIONING GUIDELINES
TROUBLESHOOTING &
MAINTENANCE
LIMITED WARRANTY

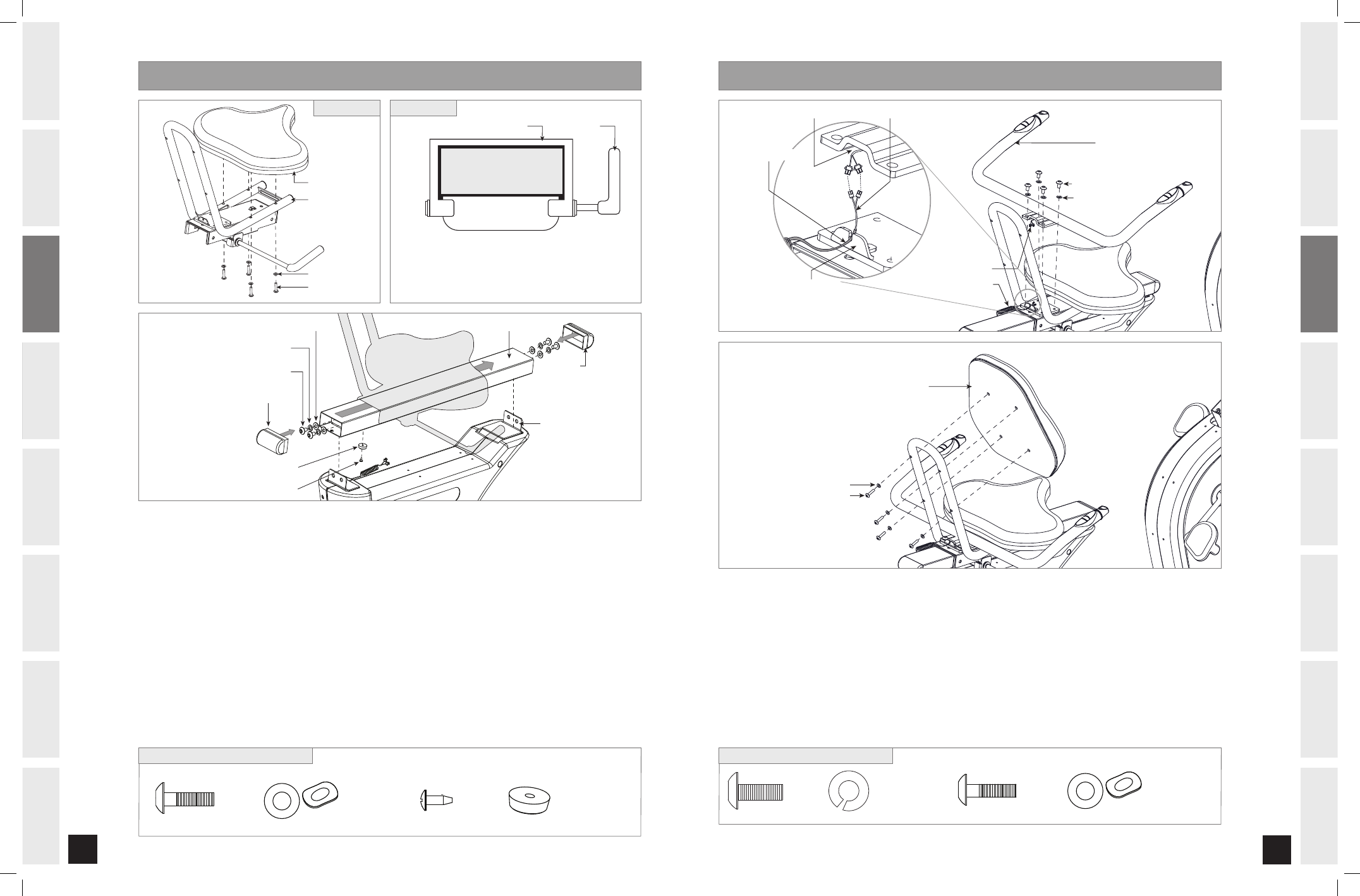

ASSEMBLY STEP
RUBBER STOPPER
SCREW (H)
SEAT GUIDE RAIL CAP
PRE-ATTACHED WASHERS
PRE-ATTACHED SPRING WASHERS
PRE-ATTACHED BOLTS
SEAT GUIDE RAIL
BASE FRAME
SEAT FRAME
BOLTS (F)
WAVY WASHERS (G)
SEAT BASE
SEAT GUIDE RAIL
SEAT FRAME
SEAT LEVER CLAMP
SEAT LEVER
CAP
Open HARDWARE BAG FOR STEP 4.
Attach the SEAT BASE to the SEAT FRAME using 4 BOLTS (F) and 4 WAVY WASHERS (G).
Remove SEAT GUIDE RAIL CAPS, then remove the PRE-ATTACHED BOLTS, SPRING WASHERS and WASHERS
from both ends of the SEAT GUIDE RAIL and lift from BASE FRAME. Note the orientation of the seat guide rail.
Slide the SEAT FRAME through the rear of the SEAT GUIDE RAIL as shown above. Lock SEAT FRAME into place by
pushing down on SEAT LEVER. NOTE: Seat lever will face forward when in locked position.
Attach the RUBBER STOPPER to the bottom of the SEAT GUIDE RAIL using 1 SCREW (H).
Set assembled SEAT GUIDE RAIL on the grooves of the BASE FRAME.
Re-attach the PRE-ATTACHED BOLTS, SPRING WASHERS and WASHERS through the BASE FRAME into each
end of the SEAT GUIDE RAIL. DO NOT TIGHTEN UNTIL ALL FOUR BOLTS HAVE BEEN STARTED.
Snap SEAT GUIDE RAIL CAPS back onto each end of SEAT GUIDE RAIL.
A
B
C
D
E
F
G
H
BOLT (F)
35 mm
Qty: 4 WAVY WASHER (G)
18 mm
Qty: 4
Side View
SCREW (H)
8 mm
Qty: 1 RUBBER STOPPER
Qty: 1
HARDWARE BAG FOR STEP CONTENTS :
RUBBER STOPPER
SCREW (H)
SEAT GUIDE RAIL CAP
PRE-ATTACHED WASHERS
PRE-ATTACHED SPRING WASHERS
PRE-ATTACHED BOLTS
SEAT GUIDE RAIL
BASE FRAME
SEAT FRAME
BOLTS (F)
WAVY WASHERS (G)
SEAT BASE
SEAT GUIDE RAIL
SEAT FRAME
SEAT LEVER CLAMP
SEAT LEVER
CAP
STEP B
RUBBER STOPPER
SCREW (H)
SEAT GUIDE RAIL CAP
PRE-ATTACHED WASHERS
PRE-ATTACHED SPRING WASHERS
PRE-ATTACHED BOLTS
SEAT GUIDE RAIL
BASE FRAME
SEAT FRAME
BOLTS (F)
WAVY WASHERS (G)
SEAT BASE
SEAT GUIDE RAIL
SEAT FRAME
SEAT LEVER CLAMP
SEAT LEVER
CAP
STEP D
NOTE: Be sure to keep SEAT LEVER positioned upward as
shown. Orientate SEAT LEVER CLAMP with rounded edge
facing away from SEAT GUIDE RAIL as shown above.
ASSEMBLY STEP
SPRING WASHER (B)
15.4 mm
Qty: 4 BOLT (F)
35 mm
Qty: 4 BOLT (E)
15 mm
Qty: 4 WAVY WASHER (G)
18 mm
Qty: 4
Side View
HARDWARE BAG FOR STEP CONTENTS :
Open HARDWARE BAG FOR STEP 5.
Connect the SEAT FRAME WIRES to the PULSE GRIP WIRES as shown above.
Press COVERED WIRE into WIRE CLIP just before EXPOSED WIRES as shown above. Tuck EXPOSED WIRES
under RECESS in LOWER HANDLEBAR.
Attach the LOWER HANDLEBAR to the SEAT FRAME using 4 BOLTS (E) and 4 SPRING WASHERS (B).
DO NOT PINCH WIRES!
Attach the SEAT BACk to the SEAT FRAME using 4 BOLTS (F) and 4 WAVY WASHERS (G).
A
B
C
D
E
BOLTS (E)
SPRING WASHERS (B)
SEAT FRAME WIRES
PULSE GRIP WIRES
BOLTS (F)
WAVY WASHERS (G)
SEAT BACK
LOWER HANDLEBAR
EXPOSED WIRES RECESS
WIRE CLIP
COVERED WIRE
BOLTS (E)
SPRING WASHERS (B)
SEAT FRAME WIRES
PULSE GRIP WIRES
BOLTS (F)
WAVY WASHERS (G)
SEAT BACK
LOWER HANDLEBAR
EXPOSED WIRES RECESS
WIRE CLIP
COVERED WIRE
BOLTS (E)
SPRING WASHERS (B)
SEAT FRAME WIRES
PULSE GRIP WIRES
BOLTS (F)
WAVY WASHERS (G)
SEAT BACK
LOWER HANDLEBAR
EXPOSED WIRES RECESS
WIRE CLIP
COVERED WIRE
