BEFORE YOU
BEGIN
ASSEMBL
Y
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
BIKE
OPERA
TION
CONDITIONING GUIDELINES
TROUBLESHOOTING &
MAINTENANCE
LIMITED WARRANTY

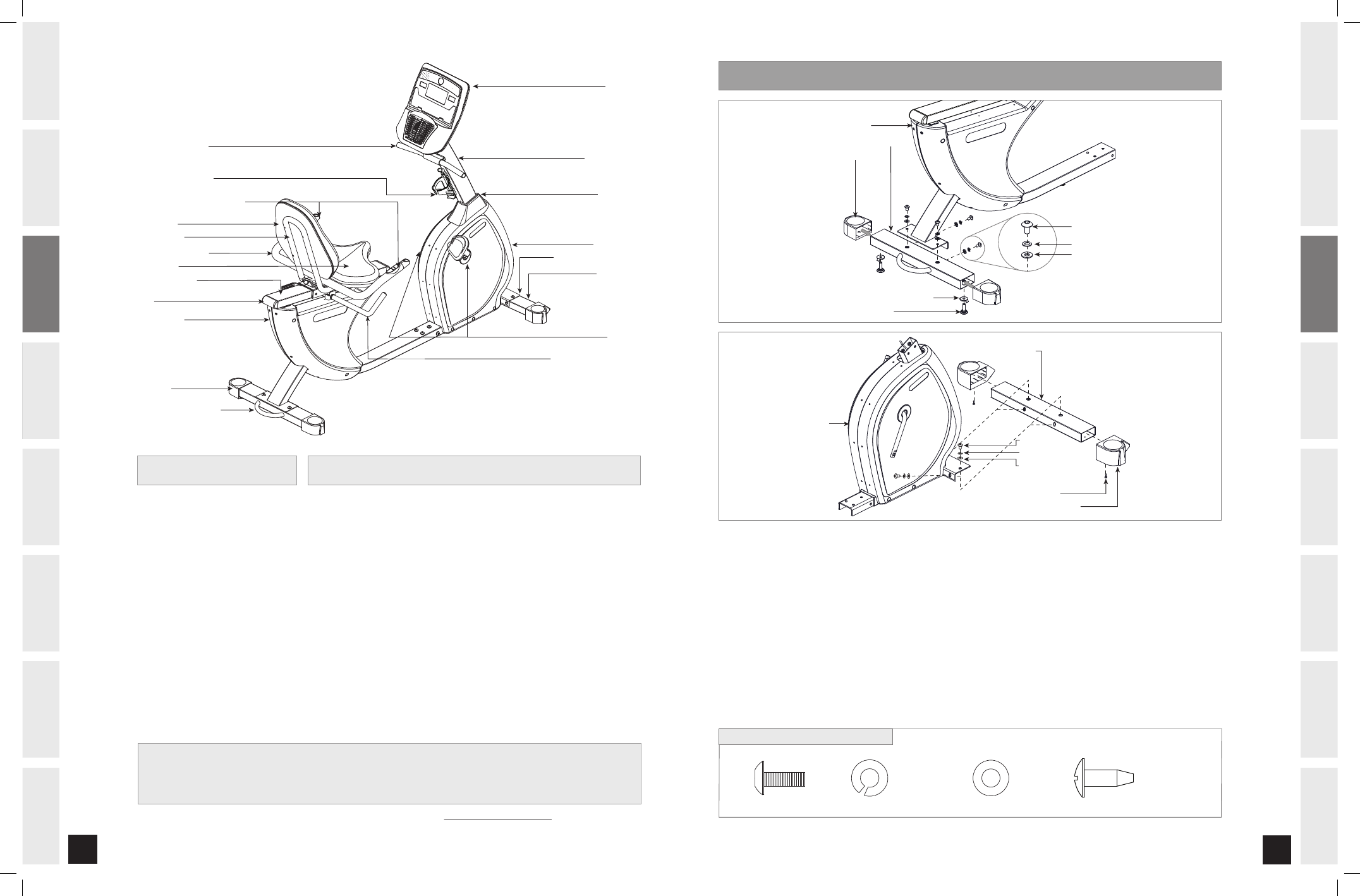

CONSOLE
MAIN FRAME
SEAT ADJUSTMENT LEVER
FRONT STABILIZER TUBE
WATER BOTTLE CAGE
UPPER HANDLEBAR
LOWER HANDLEBAR
BASE FRAME
CAP
SEAT FRAME
SEAT BACK
SEAT GUIDERAIL
SEAT BASE
REAR STABILIZER TUBE
END CAP
PEDALS
CONSOLE MAST
MAST BOOT
FRONT CAP
REMOTE RESISTANCE TOGGLES
TOOLS INCLUDED PARTS INCLUDED
c
Phillips Screwdriver
c
4mm L Wrench
c
5mm L Wrench
c
5mm T Wrench
c
13/15mm Flat Wrench
c
1 Console
c
1 Console Mast
c
1 Main Frame
c
1 Base Frame
c
1 Front Stabilizer Tube
c
2 Pedals with Straps
c
1 Mast Boot
c
1 Seat Back
c
1 Seat Frame
c
1 Water Bottle Holder
c
1 Seat Base
c
1 Lower Handlebar
c
1 Upper Handlebar
c
5 Hardware Bags
c
1 Rear Stabilizer
c
2 Front End Caps
c
2 Rear End Caps
c
2 Levelers and Adjusters
c
1 Audio Adaptor Cable
If you have questions or if there are any missing parts, contact Customer Tech Support.
If any warning decals become worn, damaged, or missing, they should be replaced.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com
ASSEMBLY STEP 1
Open HARDWARE BAG FOR STEP 1.
Slide REAR END CAPS onto REAR STABILIZER TUBE.
Attach 2 LEVELERS and LEVELER ADJUSTERS (found in the hardware box) to the bottom of the REAR
STABILIZER TUBE and secure tightly.
Attach the
REAR STABILIZER TUBE to the BASE FRAME using 4 BOLTS (A), 4 SPRING WASHERS (B) and 4
FLAT WASHERS (C).
Slide
FRONT END CAPS into FRONT STABILIZER TUBE with wheels facing forward and attach using 2
SCREWS (D) with provided PHILLIPS SCREWDRIVER.
Attach the
FRONT STABILIZER TUBE to the MAIN FRAME using 4 BOLTS (A), 4 SPRING WASHERS (B) and 4
FLAT WASHERS (C).
A
B
C
D
E
F
REAR STABILIZER TUBE
REAR END CAPS
LEVELER
LEVELER ADJUSTER
BASE FRAME
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
FRONT END CAP
SCREW (D)
WASHER (C)
BOLT (A)
SPRING WASHER (B)
FRONT STABILIZER TUBE
MAIN FRAME
SCREW (D)
10 mm
Qty: 2 SPRING WASHER (B)
15.4 mm
Qty: 8 WASHER (C)
18 mm
Qty: 8 BOLT (A)
20 mm
Qty: 8
HARDWARE BAG FOR STEP 1 CONTENTS :
REAR STABILIZER TUBE
REAR END CAPS
LEVELER
LEVELER ADJUSTER
BASE FRAME
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
FRONT END CAP
SCREW (D)
WASHER (C)
BOLT (A)
SPRING WASHER (B)
FRONT STABILIZER TUBE
MAIN FRAME
