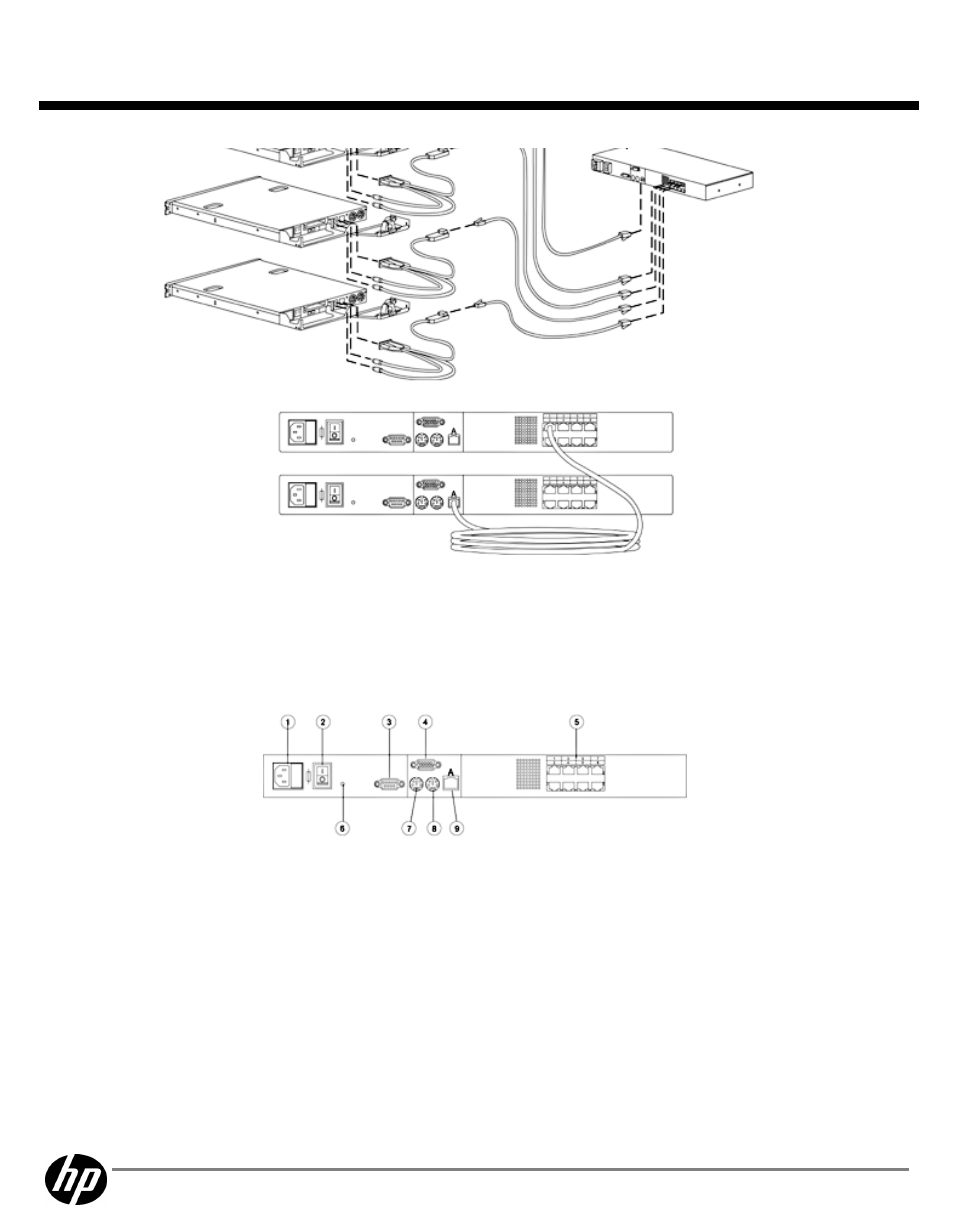

1. Server

5. UTP CAT5 cable

2. Main HP KVM Server Console Switch

6. KVM cable

3. PS/2 Interface Adapter or USB Interface Adapter*

7. Local port

4. UTP CAT5 cable

8. Cascaded HP KVM Server Console Switch

* USB IA not shown

Components

1. Power connector

6. Activity indicator light

2. Power switch

7. Keyboard connector

3. Serial download connector

8. Mouse connector

4. Monitor connector

9. RJ-45 Interface port (designated by the letter A)

5. Server connection ports
