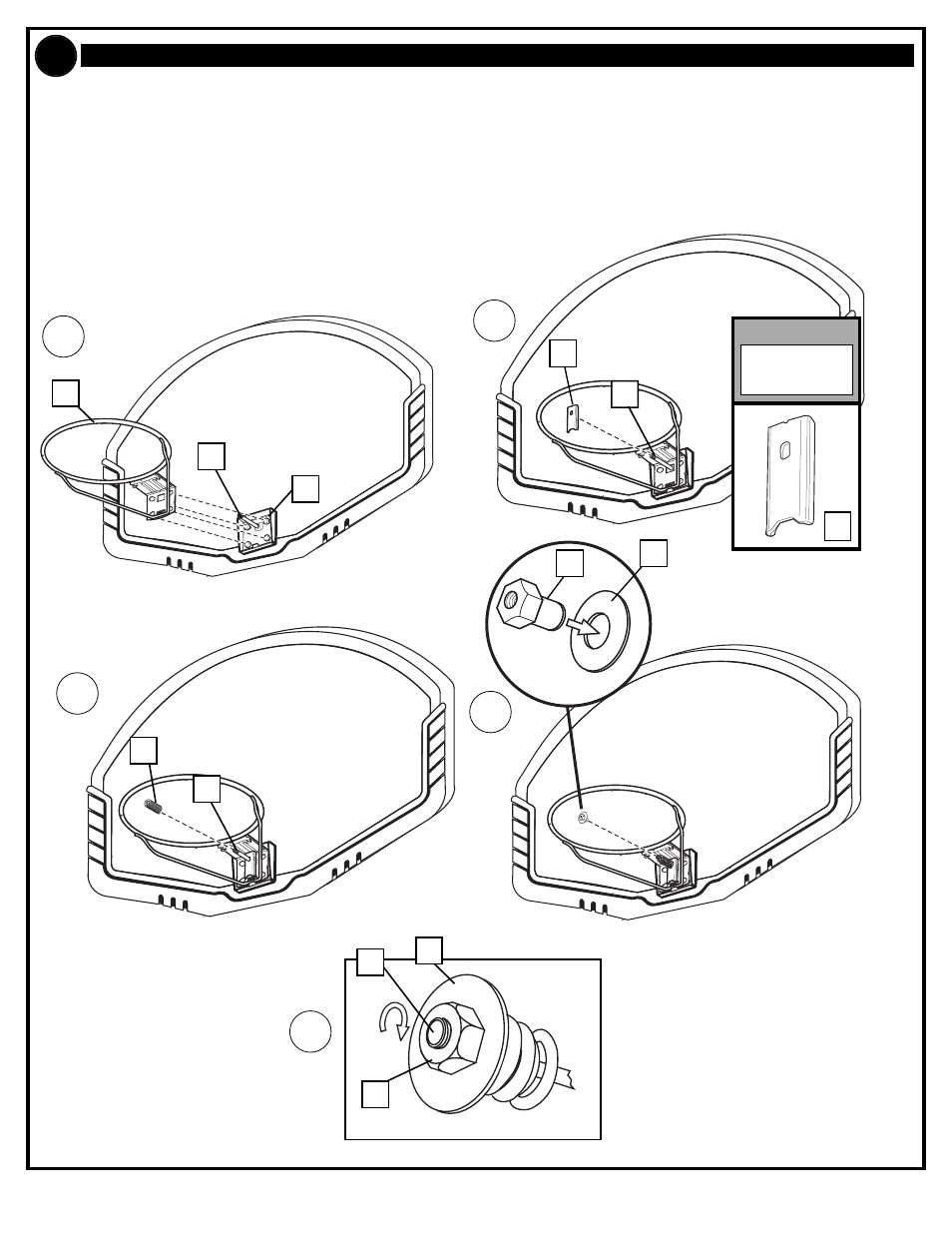

13. Install Rim to Backboard
A. Fit rim (21) securely into bracket (32) as shown. Allow T-bolt (36) to slip through center hole
in rim (21).
B. Install reinforcement bracket (31) onto T-bolt (36) as shown.
C. Install spring (30) onto T-bolt (36) as shown.
D. Install special nut (39) and washer (37) onto T-bolt (36).
E. Tighten special nut (39) until flush with end of T-bolt (36).
31
39
37
32
36 21
30
36
37
39
A
B
C
D
E
36
36
NOTE:
ORIENTATION
OF BRACKET
31
