Huffy M732211 - Manual (Page 17)

05/06 ID# M732211
17
29
50
16
16
51
43
50
32
36
32
WARNING!
USE CAUTION; ELEVATOR ASSEMBLY
IS HEAVY. TWO CAPABLE ADULTS
REQUIRED FOR THIS PROCEDURE.
FAILURE TO FOLLOW THIS WARNING
COULD RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.

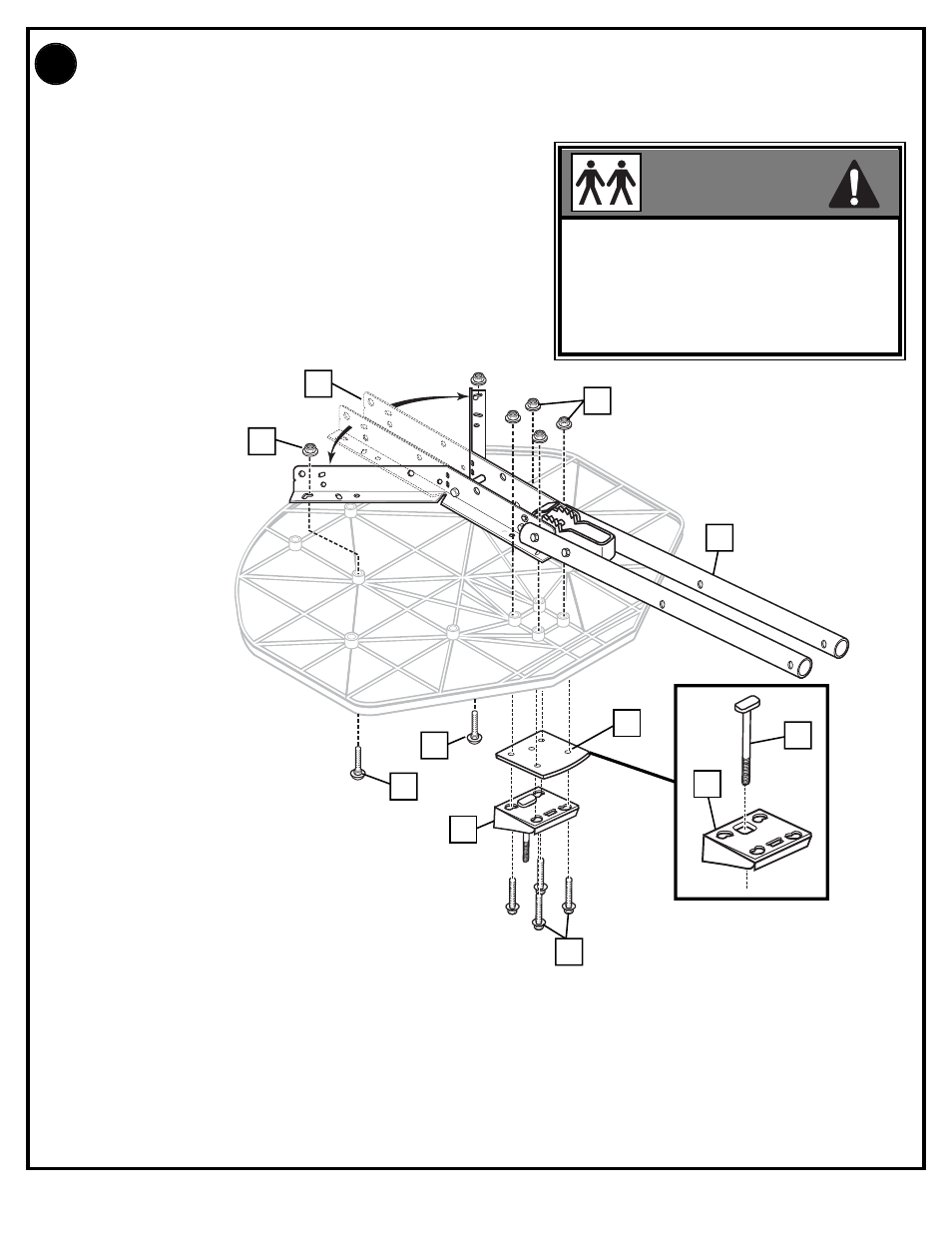

Insert “T” bolt (36) through Slam Jam bracket (32) as shown. Secure Slam Jam bracket (32) and
backboard bracket (29) assemblies to backboard. Make sure rim spacer (52) is inserted into board.
Bend upper halves of backboard brackets (29) to line up with holes in backboard and secure with
bolts (50, 51) and nuts (16). Tighten completely.
6.
52
