Huffy M732211 - Manual (Page 15)

05/06 ID# M732211
15

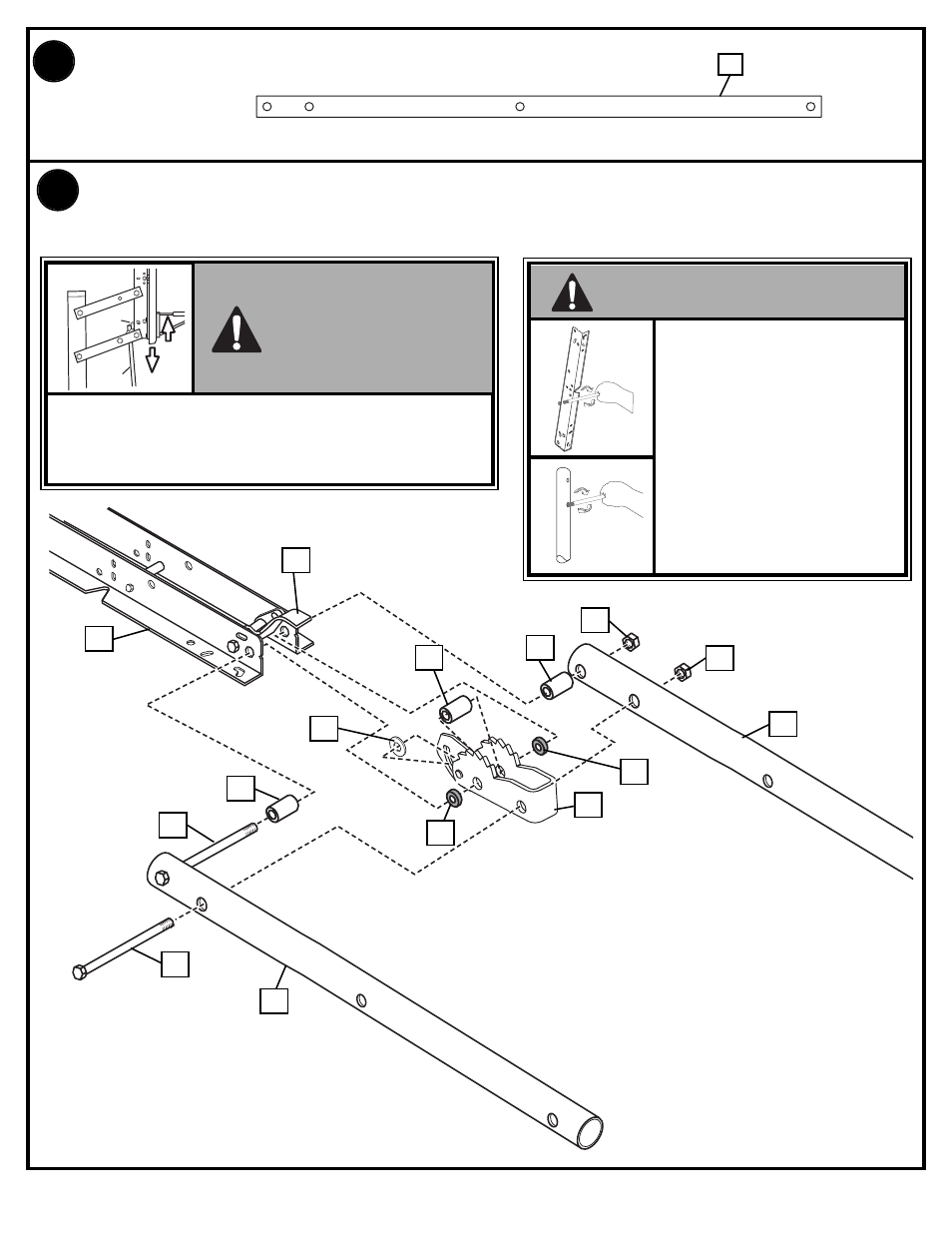

2.
Identify elevator tubes (43).
Toward
Board
Toward
Pole
43
Elevator Tubes
Assemble elevator tubes (43) to ratchet (28) and backboard brackets (29) as shown. Tighten
completely.
3.
29
41
43
41
42
42
17
17
28
43
27
38
38
45
It is necessary for all parts to be installed
properly for this mechanism to work safely and
properly.
IMPORTANT! LEVER
BROOM
HANDLE
23
Test fit bolts into holes of
brackets and carefully
rock them in a circular
motion to ream out paint
from holes if necessary.
IMPORTANT!
