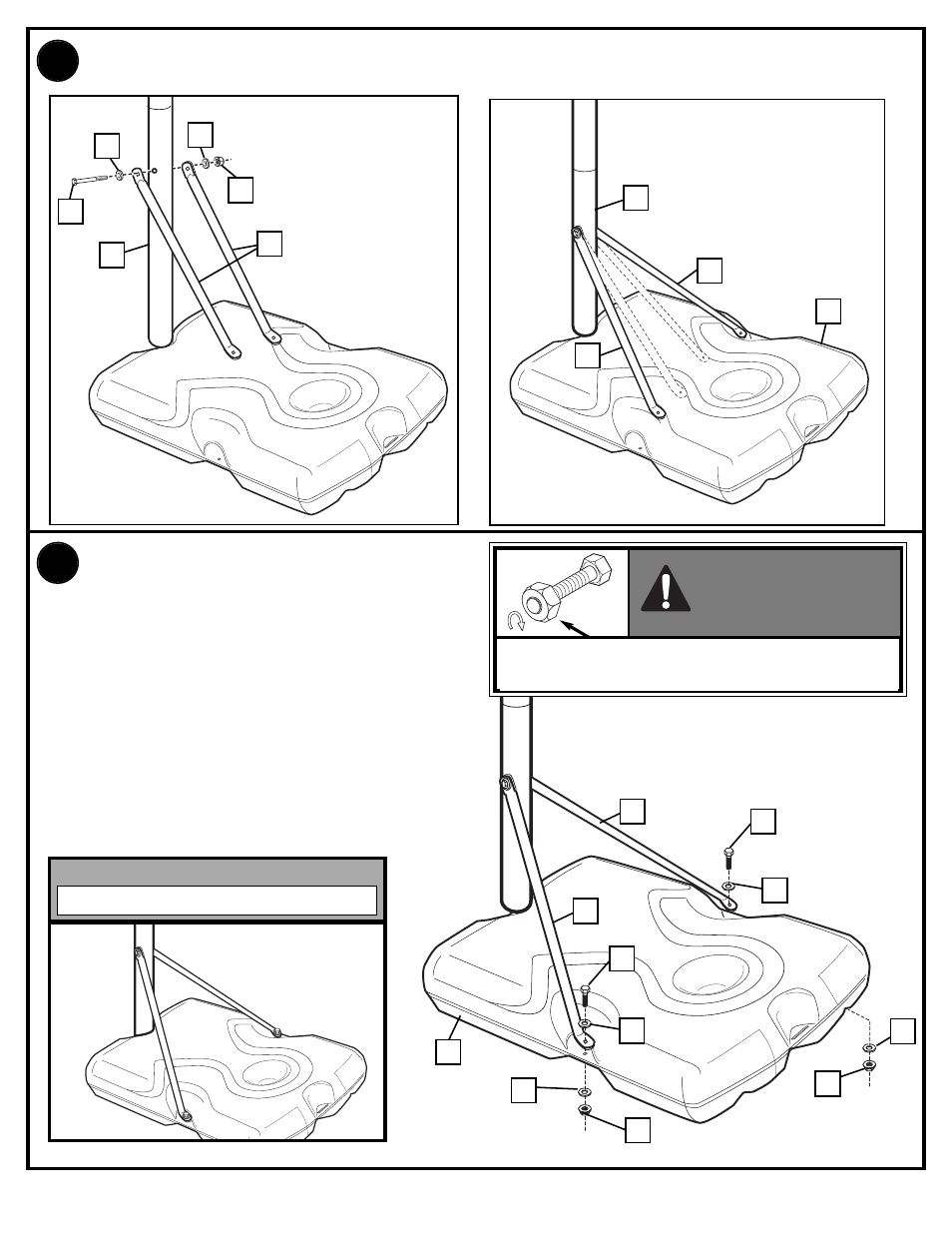

6. Secure base struts (10) to pole using bolt (11), washers (12), and nut (13), as
shown. Rotate the non-secured ends of base struts (10) as shown.
7.
Secure both base struts (10)
to base using bolts (15),
washers (12), and nuts (16).
15
10
12
1
12
16
10
10
12
16
15
12
NOTE:
ORIENTATION OF STRUTS
TIGHTEN BOLT (11) IN LOCK NUT (13) UNTIL FLUSH
(EVEN) WITH LOCK NUT’S OUTER EDGE.
WARNING!
