August 1, 2008 Heat & Glo · Tiara Petite B · 7026-101K

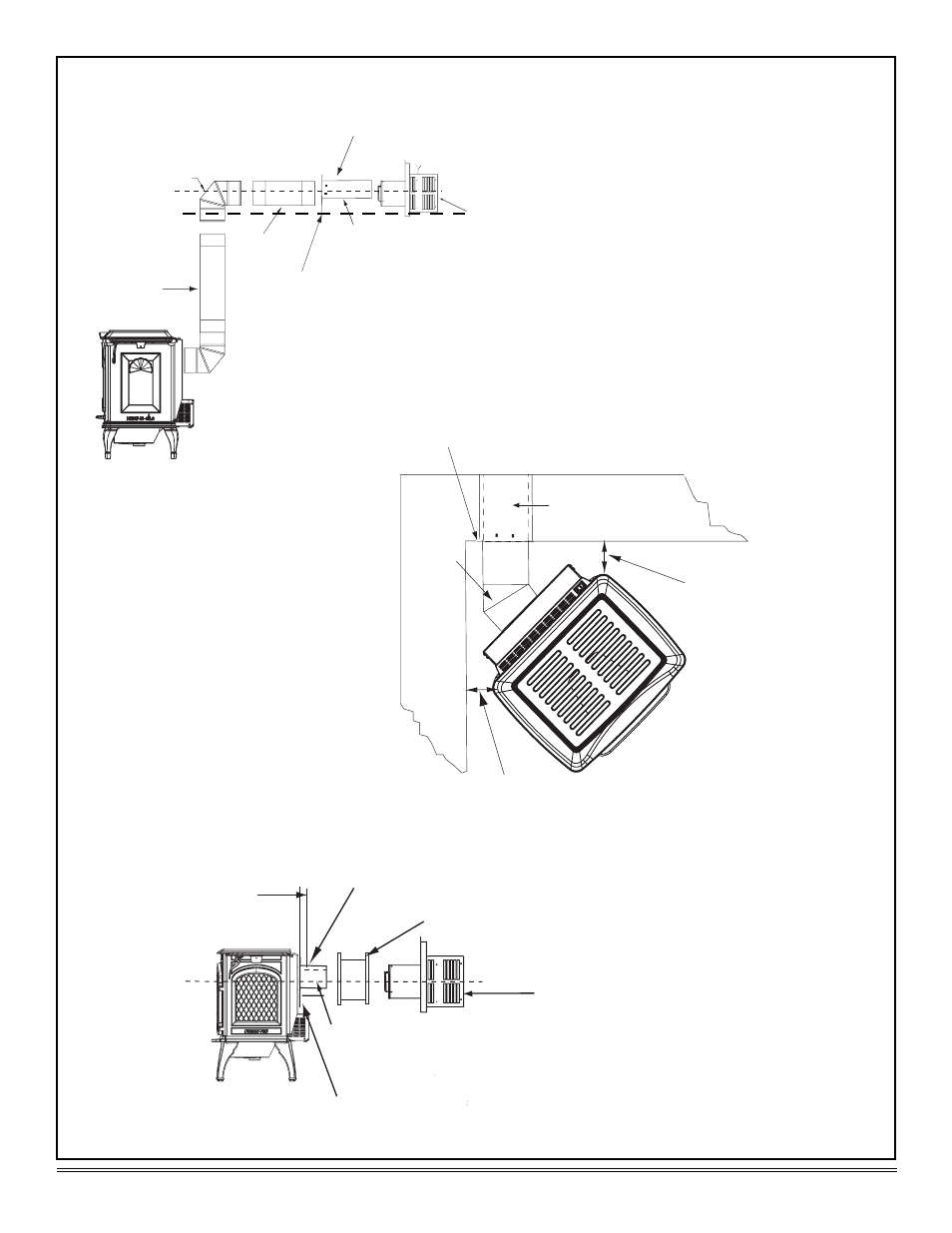

FIG. A 90 DEGREE ELBOW
FIG. C MINIMUM CLEARANCE
Figure 5.34
FIG. B 45 DEGREE ELBOW
45°
ELBOW
HEAT SHIELD OR WALL
THIMBLE OVER PIPE
TRIM RING
2 in. (51mm) CLEARANCE FROM
STOVE CORNER TO COMBUSTILE
WALL
2 in. (51mm) CLEARANCE FROM STOVE CORNER TO COMBUSTIBLE
WALL
90° ELBOW
HEAT SHIELD
OVER PIPE
TRIM RING
CENTER LINE
PIPE LENGTH
PIPE LENGTH
TERMINATION CAP
PLACE MARK WHERE PROTRUDES THROUGH
EXTERIOR WALL TO CUT OFF EXCESS
MINIMUM OF 6 in. (152mm) OF PIPE
THROUGH THE WALL
WALL THIMBLE
CENTER LINE
TRIM RING
HEAT SHIELD OVER TOP HALF
OF PIPE
TERMINATON CAP
INTERIOR WALL (2 in. (51mm)
clearance from rear of stove)
