21 Dry Seasoned Wood Only!
TL2.0 Woodburning Stove
Save These Instructions 3-90-08560
7

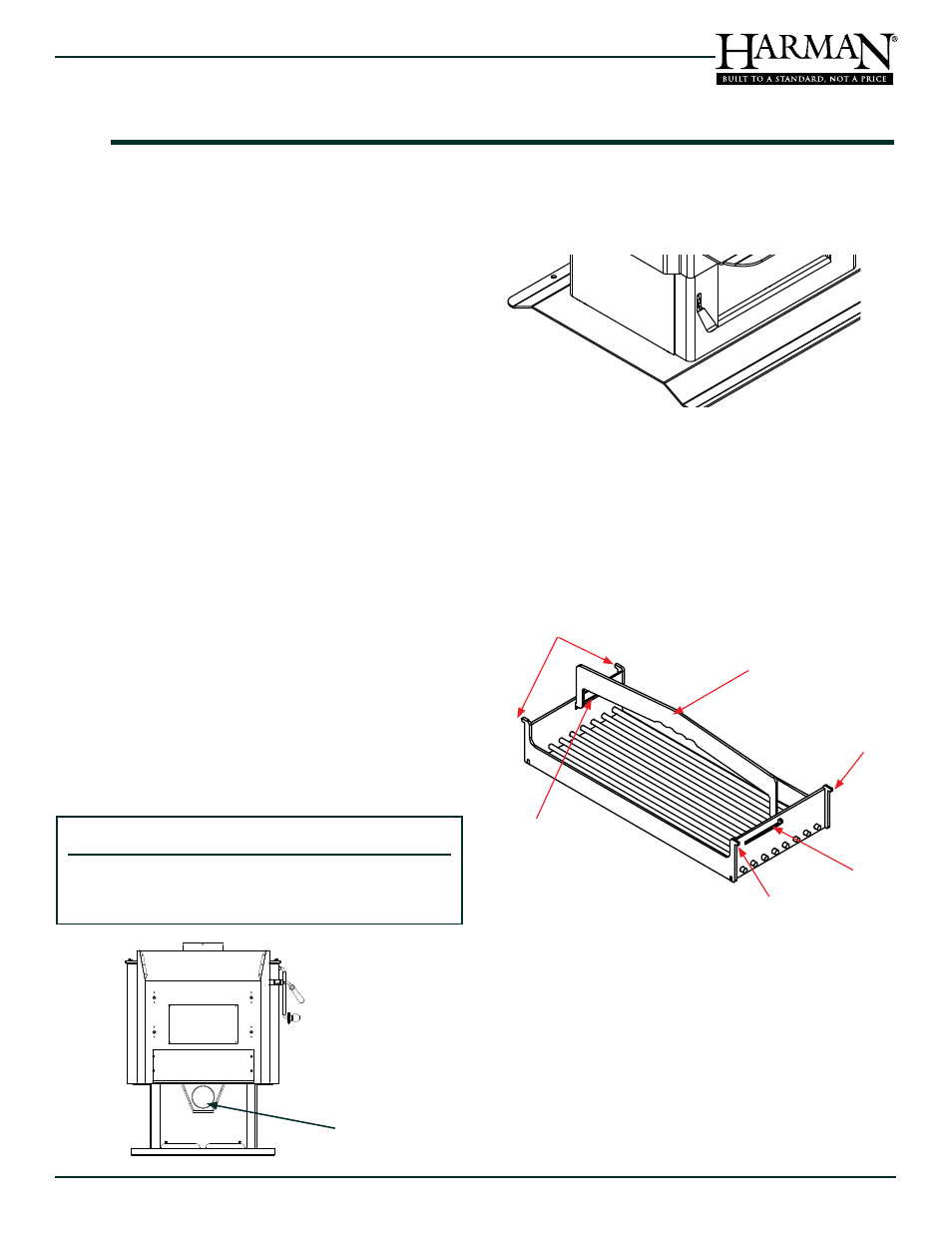

appliance set-up
a. Outside air attachment
Parts and Supplies Needed: Kit #1-10-856082, 1
piece of metal flexible pipe, 4" X needed length. 1
Rodent Screen, and aluminum tape. Plus, a trim ring
for finishing around the pipe on the inside wall.
1. Determine an appropriate hole location, through
the wall. Be sure there are no studs or other
supporting members. Also ensure there are no
electrical wires or plumbing contained within the
wall.
2. Make the hole through the exterior wall using a
hole saw or reciprocating saw. You'll want the hole
to be just slightly larger than the metal flex pipe.
3. Attach the rodent screen to one end of the flex
pipe, and insert it through the wall until the back
of the screen cover is against the outside surface.
4. Hold the flex pipe in place to make an accurate
determination of the length needed. Cut the flex
pipe to length.
5. Slide the trim ring onto the flex for the inside wall
portion.
6. Slide the other end of the metal intake flex pipe
into the stub on the rear of the stove and secure
it with aluminum tape. This air intake will supply
outside air for the secondary combustion.
7. Secure the trim ring in place for finishing the inside
wall area.
8. Seal around the rodent screen on the exterior wall,
using silicone caulking.
Outside Air
Attachment
B. Leveling the appliance
Use metal shim material under the pedestal base
where needed for leveling.
C. Optional Cooking grill
The optional cooking grill #1-00-08121 installs easily
in the top load opening of the stove.
The grill handle (B) fits in the slots (C) on each side. To
remove the handle, lower and turn.
When installed, the grill hangs in the opening by the
hooks (A).
a
a
a
B
C
C NEvER dRaW OuTsIdE COMBusTION aIR fROM:
• WaLL, fLOOR OR CEILINg CavITy.
• ENCLOsEd sPaCE suCH as aN aTTIC OR gaRagE
CauTION
When grilling, you'll want to keep the fire size small and
the bypass damper in the open position. Depending on
the grilling being done, you may get grease dripping
on the glass causing it to become dirty and obstructed.
When you burn your next hot fire, the glass will likely
clean itself.
Keep top loaD Door CloseD exCept when
LOadINg OR uNLOadINg gRILL.
