TL2.0 Woodburning Stove
Dry Seasoned Wood Only! Save These Instructions 3-90-08560
6
mobile home
a. mobile home installation
mobile home approval - u.s. only.
dO NOT INsTaLL IN a MOBILE HOME IN CaNada.
1. An outside air inlet must be provided for
combustion air, and must remain clear of leaves,
debris, ice, and/or snow. The outside air path must
be unrestricted while the appliance is in operation.
Use Kit #1-10-856082 to attach to unit.
2. The combustion air intake system must be of
metal construction. It must permit zero-clearance
to combustible materials, and contain a rodent
screen.
3. The appliance must be secured to the mobile
home structure by bolting it to the floor. There are
holes provided in the pedestal base. Secure with
the proper length lag bolts, through the hearth pad
and into the home floor.
4. The appliance must be grounded to the metal
framing of the mobile home
5. All clearances to combustibles and floor protection
requirements must be followed.
6. Follow the vent manufacturer's instructions when
installing in a mobile home. Must be connected to
a UL103 HT ventillated chimney connector, UL103
HT chimney, and terminal cap with spark arrestor.
7. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the exterior.
8. Installation shall be in accordance with the
Manufactured Home and Safety Standard (HUD)
CFR 3280, Part 24
9. The appliance must never be installed in a room
designated for sleeping.
10. Burn wood only. Other fuels may generate
poisonous gases (carbon monoxide).
11. If unit burns poorly while an exhaust blower
(range hood) is operating, increase the supply of
combustion air to the appliance
NOTE: The top sections of the chimney must be
removable to allow a maximum clearance of 13.5 feet
(411cm) from ground level for transportation purposes.

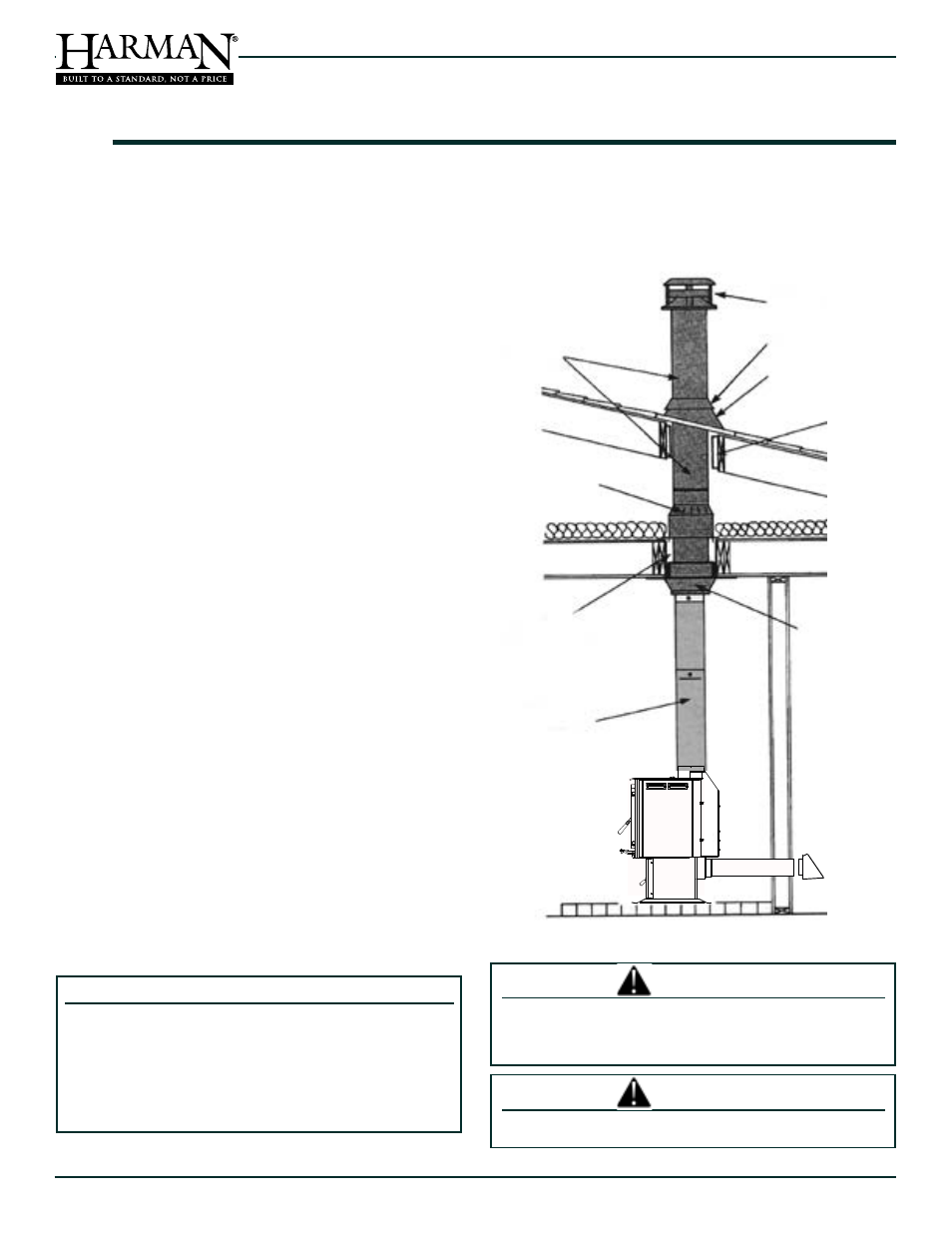

Chimney Cap
Storm Collar
Chimney
Sections
Minimum Air Space
with Chimney Listing
Chimney
Connector
Chimney
Support
Roof Flashing
Roof
Radiation
Shield
Attic
Radiation
Shield
Outside
Air
THE sTRuCTuRaL INTEgRITy Of THE MOBILE HOME
fLOOR, WaLL aNd CEILINg/ROOf MusT BE MaINTaINEd.
dO NOT CuT THROugH:
• fLOOR jOIsT, WaLL sTuds, OR CEILINg TRussEs.
• aNy suPPORTINg MaTERIaL THaT WOuLd affECT
THE sTRuCTuRaL INTEgRITy.
CauTION
INsTaLLaTION MusT COMPLy WITH
MaNufaCTuREd HOME aNd safETy sTaNdaRd
(huD), Cfr 3280, part 24.
dO NOT INsTaLL IN sLEEPINg ROOM.
WaRNINg
WaRNINg
