11 Dry Seasoned Wood Only!
TL2.0 Woodburning Stove
Save These Instructions 3-90-08560

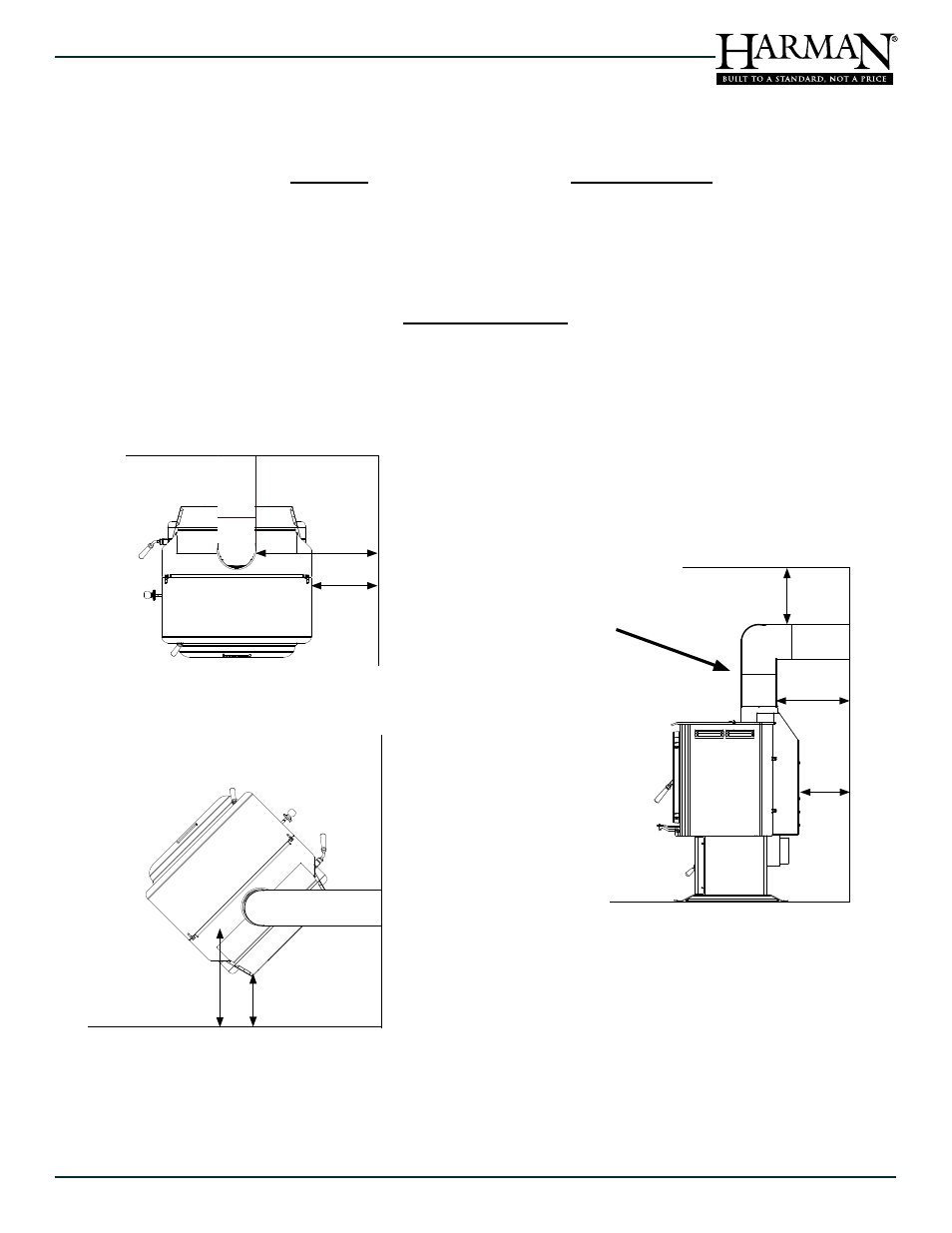

Location single-wall Pipe
a unit to side Wall 13" / 330 mm
B unit to Back Wall 13" / 330 mm
C vent Pipe to side Wall 23" / 584 mm
d vent Pipe to Back Wall 18" / 457 mm
E vent Pipe to Ceiling 16" / 406 mm
Corner Installation
f
Corner to adjacent Wall 16" / 406 mm
g Connector to Wall 22.5" / 571 mm
*for clearance reduction methods, refer to NfPa 211 or Local Codes
vertical venting Configuration - horizontal exit
a
C
g
f
E
B
d
E
2' (610 mm) Minimum vertical
prior to elbow.
