12
TL2.0 Woodburning Stove
Dry Seasoned Wood Only! Save These Instructions 3-90-08560

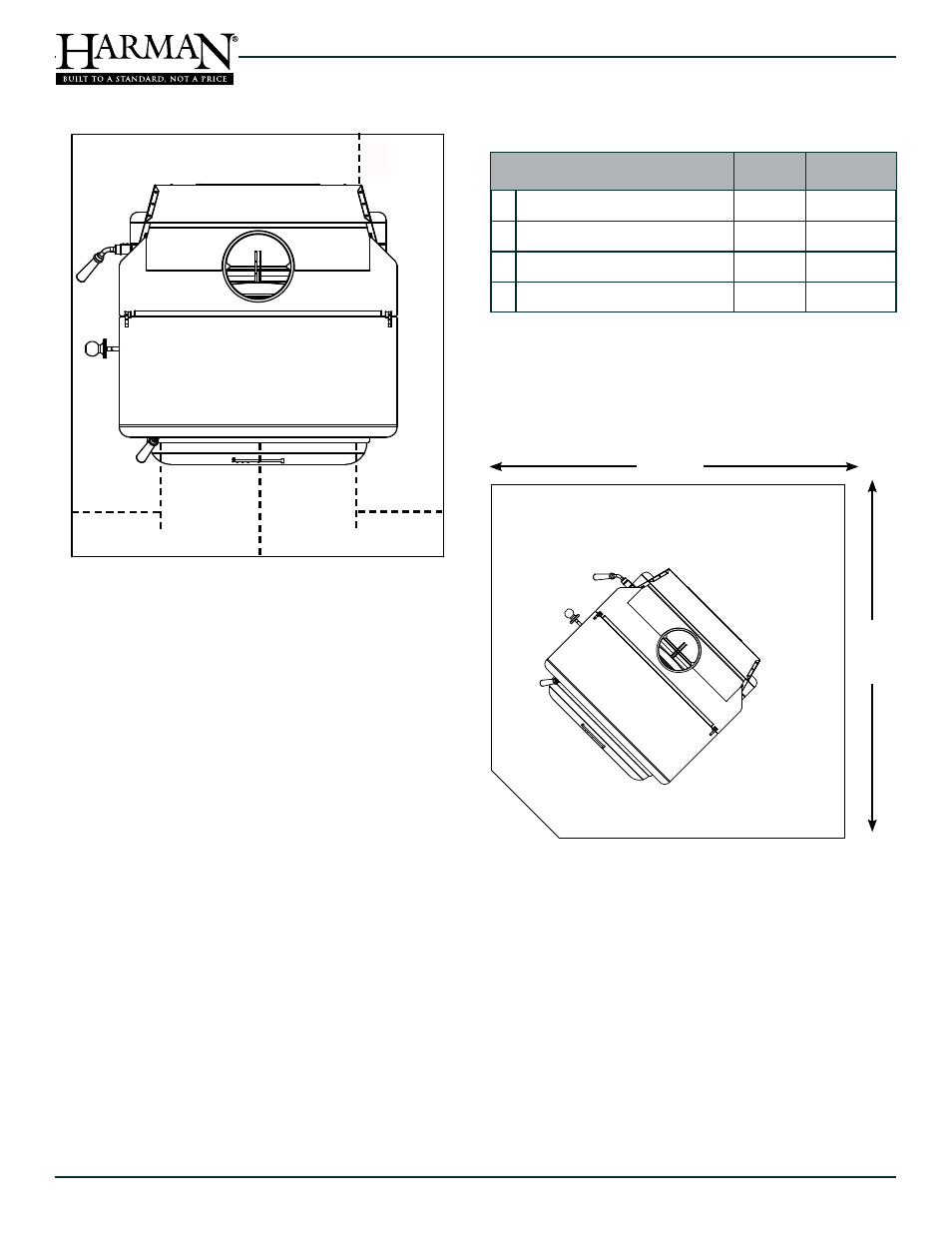

C. floor Protection Requirements Minimum Size floor protection (USA) is 48" Deep By
32.5" Wide.
floor Protection Requirements
If the appliance is being installed on a combustible floor,
non-combustible floor protection must be installed. In
all installations, the area under and around the stove
must be protected from falling ash and live coals. The
area under a horizontal run of chimney connector must
also be protected, extending two (2) inches (51mm) to
each side of the horizontal connector.
Further guidelines for floor protection are as follows: In
the U.S. the floor protector must be completely under the
stove, and extending 18" in front of the door opening,
8" to each side of the door opening, and 8" to the back.
In Canada, the floor protection must extend 18"
(457mm) in front of the door opening, and 8" (203mm)
to each side of the appliance, and to the rear.
* Floor protection dimensions for the front and sides
are measured from the appliance door opening in
The United States. In Canada, the side dimension is
measured from the widest part of the appliance.
Minimum 60" corner floor protection (CANADA).
j j
k
L
54"
54"
L
j
floor Protection
Requirements
Inches Millimeters
Sides- USA /CANADA *
Rear- USA
8 203
8 203
L Rear- CANADA Wall Wall
k Front- USA /CANADA * 16 457
Alternate floor protector dimension may be used as long
as they satisfy the measurement requirements shown
above.
Minumum size floor protection for a corner installation
hearth pad is 54" x 54" (USA ONLY).
